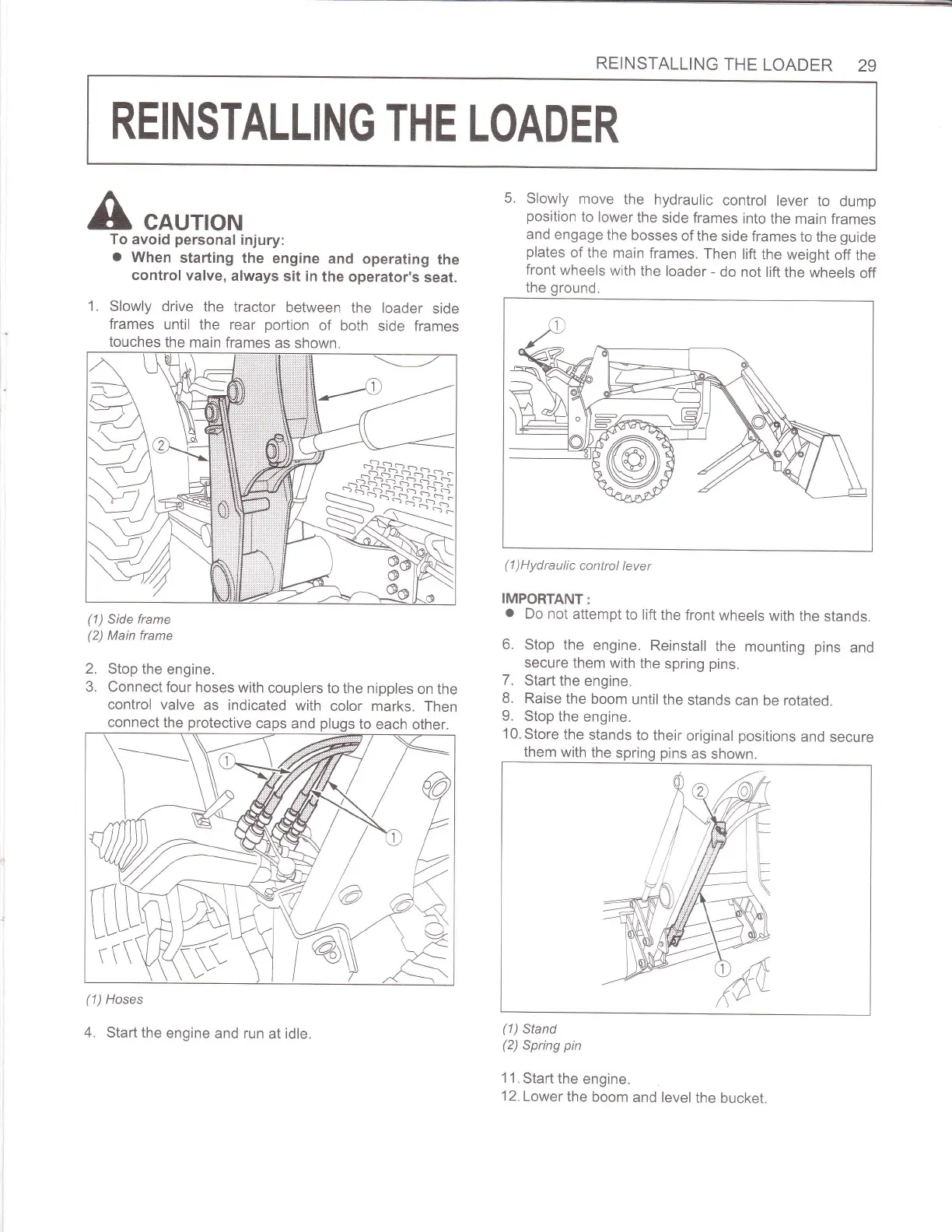

Kubota LA853 User Manual

REINSTALLING
THE
LOADER
29
REINSTALLING
THE
LOADER
TI
CAUTION
To
avoid
personal
injury:
o
When
starting
the engine
and operating
the
control
valve,
always
sit in
the
operator,s
seat.
1.
Slowly
drive the
tractor
between
the loader
side
frames
until the rear
portion
of
both
side frames
touches
the main
frames
as
shown.
(1)
Side
frame
(2)
Main frame
Stop the
engine.
Connect four
hoses
with
couplers
to the nipples
on the
control valve
as indicated
with
color marks.
Then
(1)
Hoses
4.
Start the
engine
and run
at
idle.
5.
Slowly
move
the
hydraulic
control
lever
to
dump
position
to
lower
the
side frames
into
the
main frames
and
engage
the
bosses
of the
side frames
to
the
guide
plates
of the
main
frames.
Then
lift
the weight
off the
front
wheels
with
the loader -
do not lift
the wheels
off
the
ground.
2.
(
1
)
Hyd
raulic
control
leve r
IMPORTANT:
.
Do not
attempt
to
lift the
front
wheels
with the
stands.
6.
Stop the
engine.
Reinstall
the
mounting
pins
and
secure them
with
the
spring
pins.
7.
Start the
engine.
B. Raise
the
boom
until
the
stands
can
be rotated.
9.
Stop
the
engine.
10.
Store the
stands
to their
original
positions
ano
secure
_ !her
with
the
spring
pins
as shown.
(1)
Stand
(2)
Spring
pin
1 1.
Start the
engine.
12.
Lower
the
boom
and
level
the bucket.
-
