71PERIODIC SERVICE
BReplacing Slow-Blow Fuses
The slow-blow fuses are intended to protect the electrical
cabling. If any of them have blown out, be sure to pinpoint
the cause. Never use any substitute, use only a KUBOTA
genuine part.
C Replacement procedure
1. Disconnect the negative cable of the battery.
2. Remove the cover and the slow-blow fuse box cover.
3. Pull out the slow-blow fuse.
4. Insert a new slow-blow fuse into the slow-blow fuse
box.
5. Install the slow-blow fuse box cover.
6. Connect the negative battery cable.
C Protected circuit
BReplacing Light Bulb
1. Head lights
Take the bulb out of the light body and replace it with
a new one.
2. Other lights
Detach the lens and replace the bulb.

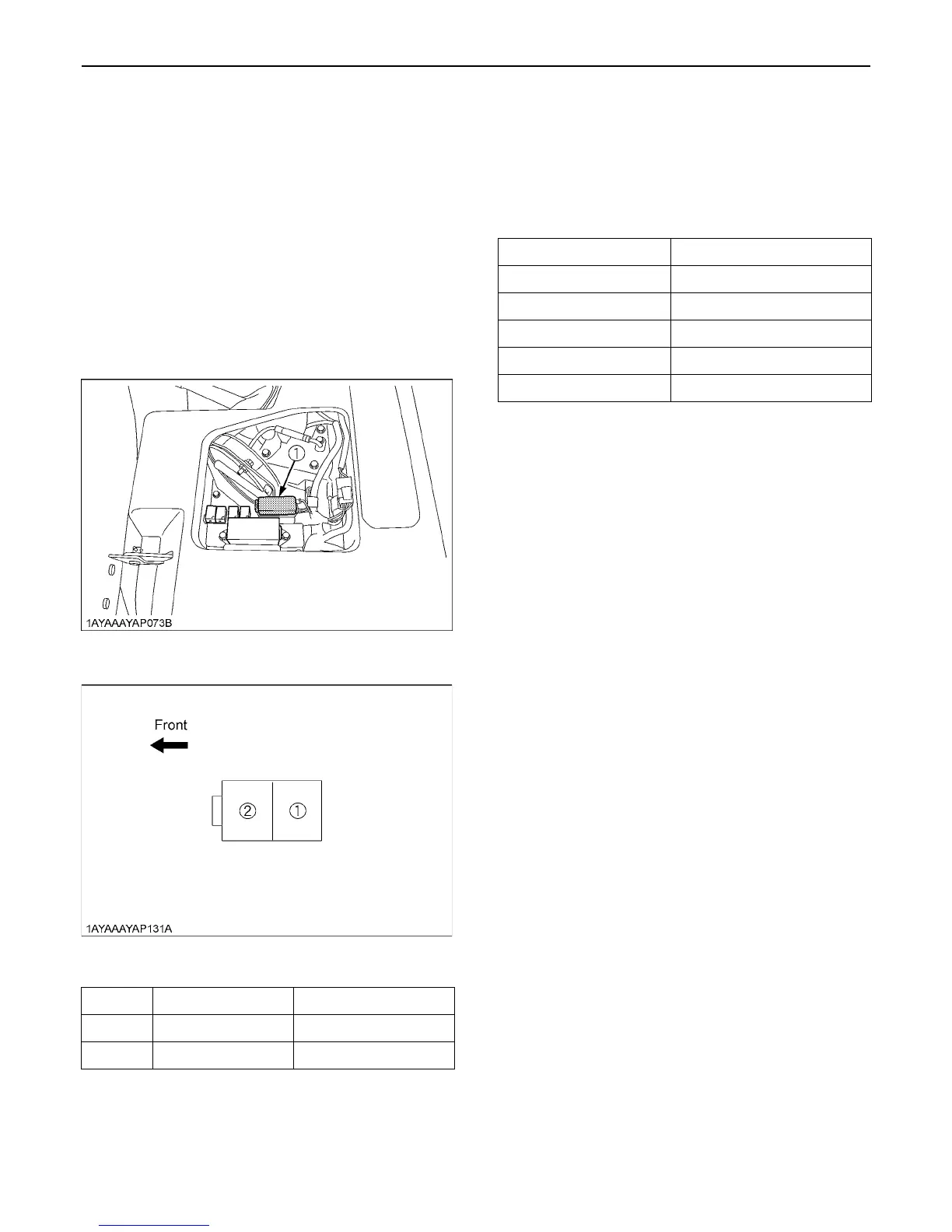

(1) Slow-blow fuse box
Fuse No. Capacity (A) Protected circuit
1 Slow-blow fuse (50) Key switch
2 Slow-blow fuse (60) Alternator
Light Capacity
Head lights 27 W
Tail light 5 W
Brake light 21 W
Easy Checker(TM) 3.8 W (14V, 0.27A)
Instrument panel light 3.8 W (14V, 0.27A)
