36 TRANSPORTING / STORAGE
TRANSPORTING / STORAGE
MOKUJIYOU
BTransporting
To avoid personal injury:
A Secure the generator to prevent
movement during operation.
A DO NOT stand near or under the
generator while it is suspended.
A The generator is heavy. Utilize
suitable equipment to lift and
transport. Keep hands and feet away
from under the suspended
generator.
A When transporting the generator,
remove the (-) battery cable, close
the fuel cock lever, and keep the
generator level to prevent fuel
spillage.
1. When transporting the generator, use only suitable
transporting equipment, such as crane, fork lift or etc.
2. The generator is equipped with the 2 inlets in the
machine bed for forklift forks. Transportability is
increased by 2 ways; special forklift openings and 1-
point lifting hook.
Use lifting equipment of sufficient capacity.

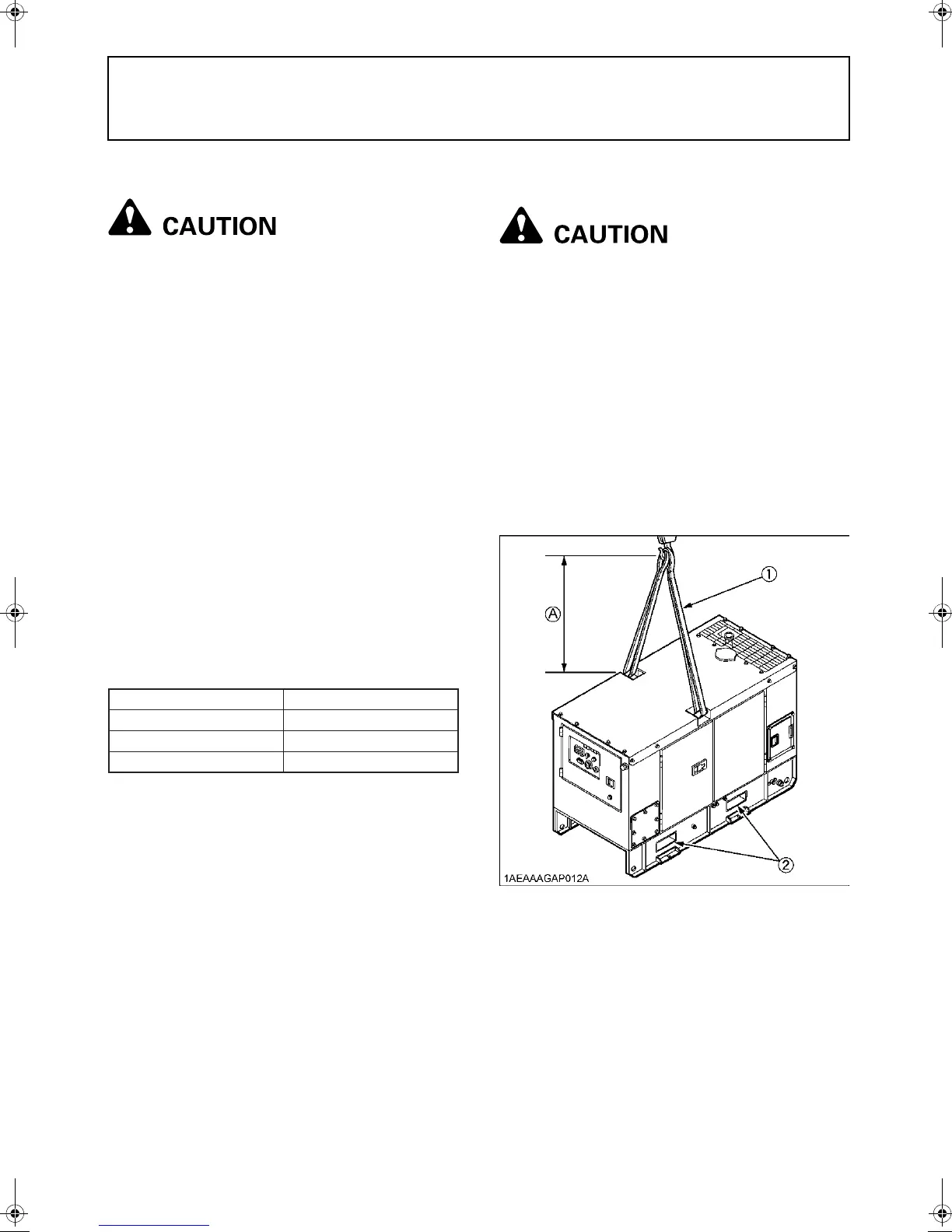

BLifting Procedure
To avoid personal injury:
A Use hangers and wire ropes which
are strong enough to withstand the
weight of the machine.
A The apex of the wire rope (distance
"A") must be a minimum of 127 cm.
Or use a spreader bar.
A DO NOT swing while lifting.
A DO NOT use the hook when the
bonnet is removed or when any bolts
are loose.
When lifting the generator for loading it onto a truck or a
ship, follow the method shown below.
Model Approx. gross wt. kg
SQ-1120, SQ-3140 759
SQ-1150, SQ-3200 854
SQ-3300 1015
(1) Wire Rope
(2) Fork pockets
(A) Minimum of 127 cm
