5INSTRUMENT PANEL AND PART NAMES

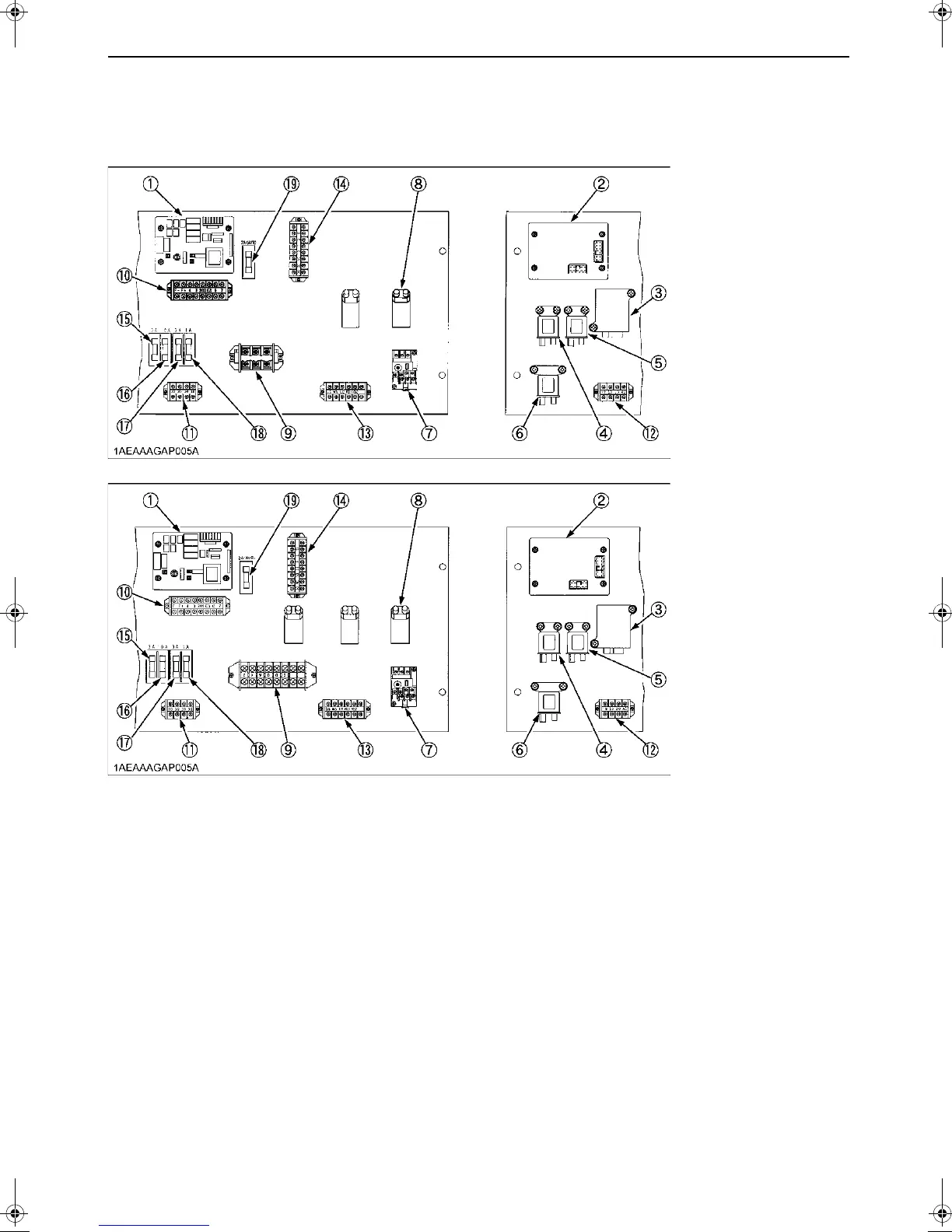

BControl Box
C 1 Phase Type
(1) AVR
(Automatic voltage
regulator)
(2) Relay unit
(3) Emergency relay
(4) Starter relay
(5) Solenoid relay
(6) Glow relay
(7) Thermal relay
(Over current relay)
(8) CT
(Current transformer)
(9) Terminal (Generator)
(10) Terminal (AVR)
(11) Terminal (Battery) TB3
(12) Terminal
(Main switch) TB2
(13) Terminal
(Auxiliary output) TB1
(14) Terminal
(Auto-start unit) TB4
(15) Fuse (3A, F1)
(16) Fuse (10A, F2)
(17) Fuse (3A, F3)
(18) Fuse (1A, F4)
(19) Fuse (2A, AVR)
C 3 Phase Type
