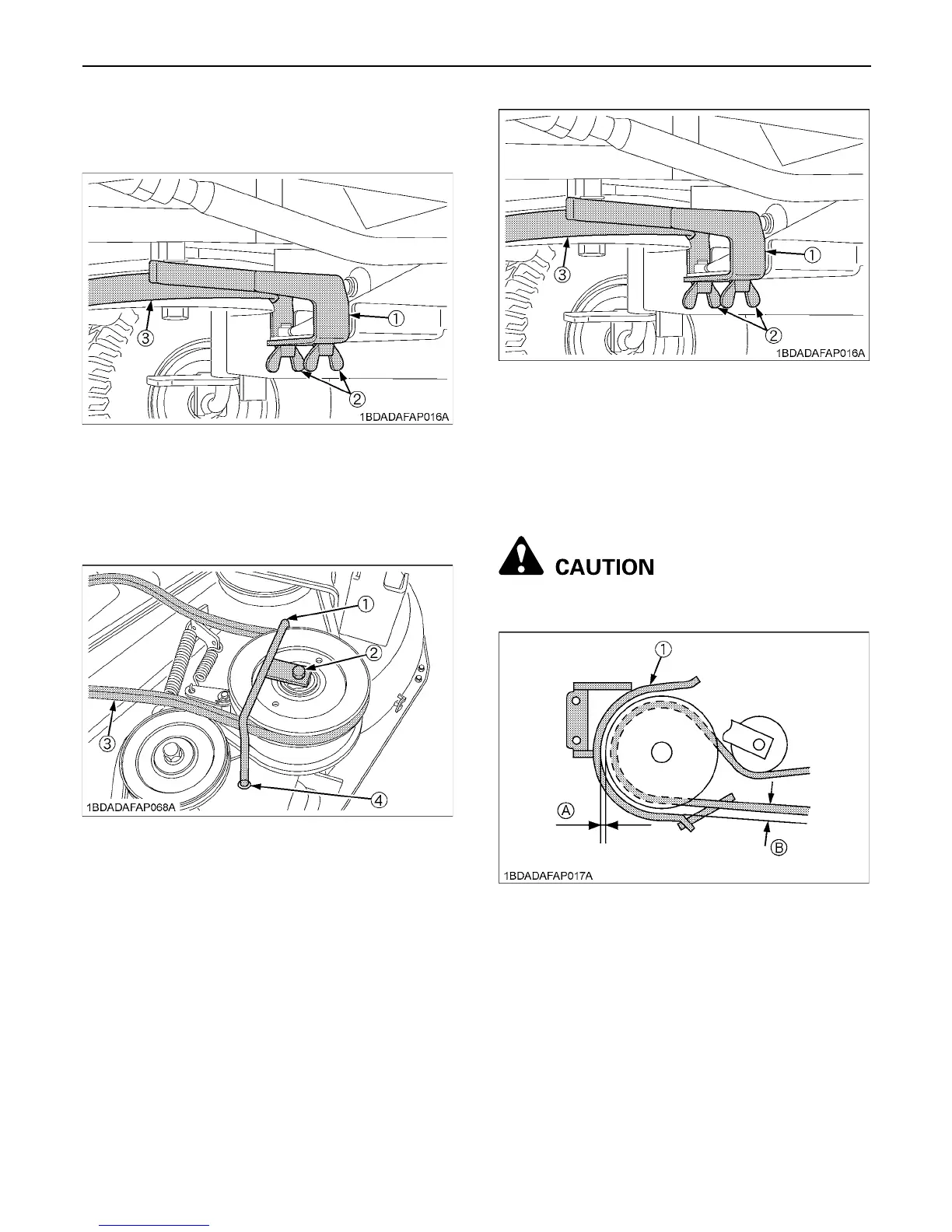

39PERIODIC SERVICE
C PTO belt replacement
1. Remove the belt support bracket, the belt support and
the PTO belt.
2. Hang the PTO belt on the pulley.
While inserting the belt support into the hole of the
mower deck, fasten the bolt.
3. Attach the PTO belt to the engine pulley then attach
the belt support bracket.
[Belt support bracket attaching and adjustment]
Adjust the belt support bracket to the following
specification with the PTO lever in the "ENGAGED"
position and tighten the belt support bracket.
To avoid personal injury:
A Make sure engine is not running.
(1) Belt support bracket
(2) Wing bolt
(3) PTO belt
(1) Belt support
(2) Belt support bolt
(3) PTO belt
(4) Hole of the mower deck
(1) Belt support bracket
(2) Wing bolt
(3) PTO belt
(1) Belt support bracket (A) Clearance between belt support
bracket and pulley. 1 to 2 mm
(3/64" to 5/64")
(B) Clearance between belt support
bracket and belt. 6 to 7 mm
(15/64" to 9/32")

Kubota T2080 Specifications

General

Engine Type	Gasoline
Engine Power	20 HP
Transmission Type	Hydrostatic
Drive	2WD
Cutting Width	42 inches
