PERIODIC SERVICE50
SERVICE AS REQUIRED
BReplacing Fuses
Replacement of the fuse
1. Open hood.
2. Remove the blown fuse.
3. Place a new 3A or 5A fuse in position.
A If the new fuse happens to blow out within a short time,
contact your dealer for inspection and repair.
Never "jump" the fuse with wire or foil, etc.
C Protected circuit
BReplacing bulbs
(A) Replacement of the headlight bulb
1. Open hood.
2. Turn bulb socket to remove socket from headlight
housing.
3. Push bulb down and turn one quarter turn to remove
bulb from the socket.
4. Install new bulb to the socket.
5. Install the socket in housing.
6. Close hood.
(B) Replacement of the Indicator light bulb
1. Open hood.
2. Turn bad bulb socket to the left.
And remove it.
3. Pull bulb from the socket.
4. Push new bulb into the socket.
5. Install the socket.
6. Close hood.

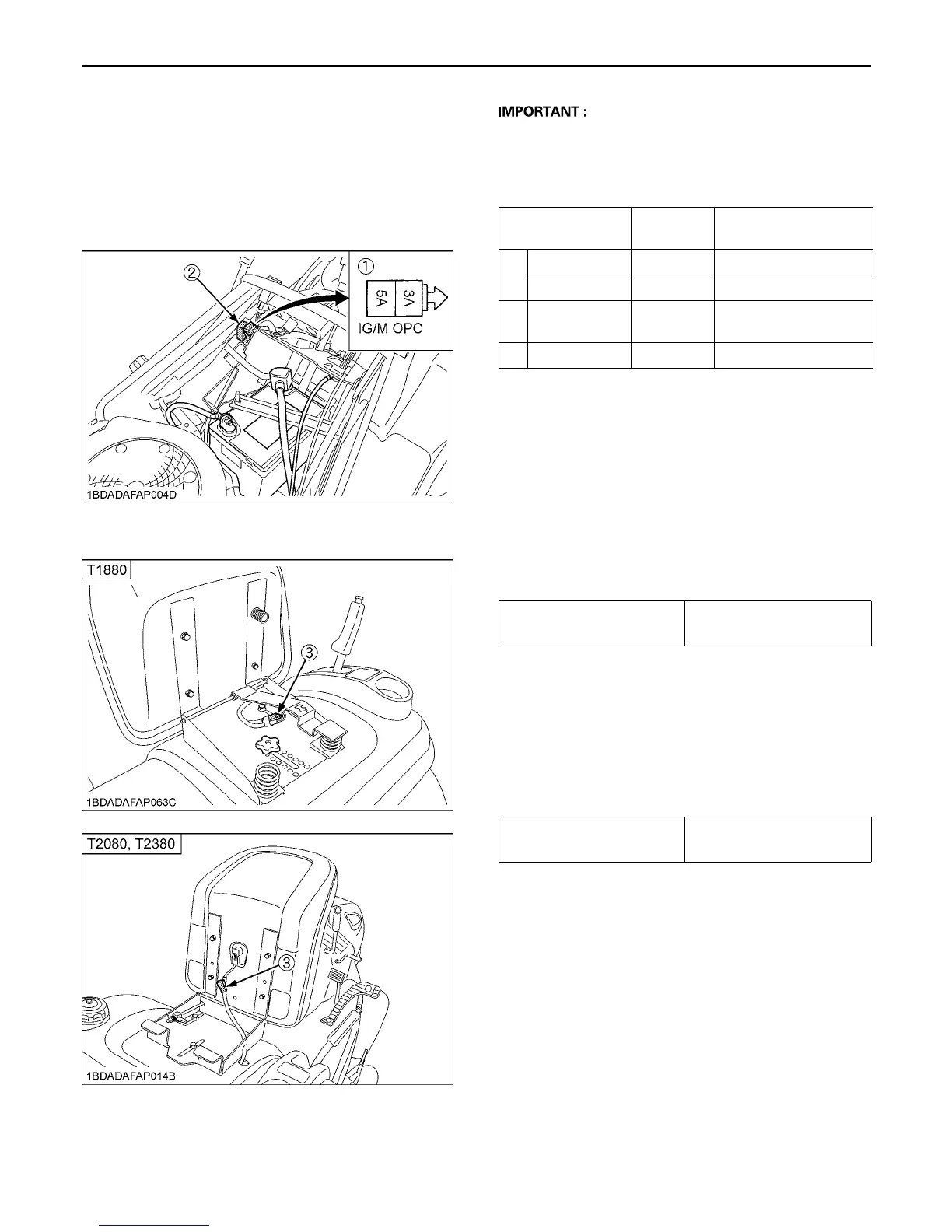

(1) Fuse location
(2) Slow blow fuse
(3) Fuse location
FUSE NO.
(ID LABEL)
CAPACITY
(A)
Protected circuit
(1)
IG/M 5 Main fuse
OPC 3 Engine running circuit
(2) Slow blow fuse 20
Check circuit against
wrong battery connection
(3) - 3 KRA system
Headlight bulb
12.8 Rated Voltage/
1.04 AMP/15 MSCP
Indicator light bulb
14.0 Rated Voltage/
0.27 AMP/2 MSCP
To Next Page
