PERIODIC SERVICE52
7. Before checking or replacing the blade, wipe grass
and mud off the top and inside of the mower.
Especially clean up the inside of the belt cover,
because otherwise the belt life will be reduced.
A Tighten the bolt of the all blades from 103 to 118 N-m
of torque. (76 to 87 ft-lbs of torque.)
C Mower belt replacement
1. Remove the mower from the machine.
2. Remove the left and right hand shield from the mower
deck.
3. Clean around the pulleys to remove the belt from the
pulley. Slip the belt over the top of the left side pulley.
4. To install a new belt, reverse the above procedure.
A Tighten cover bolts securely.

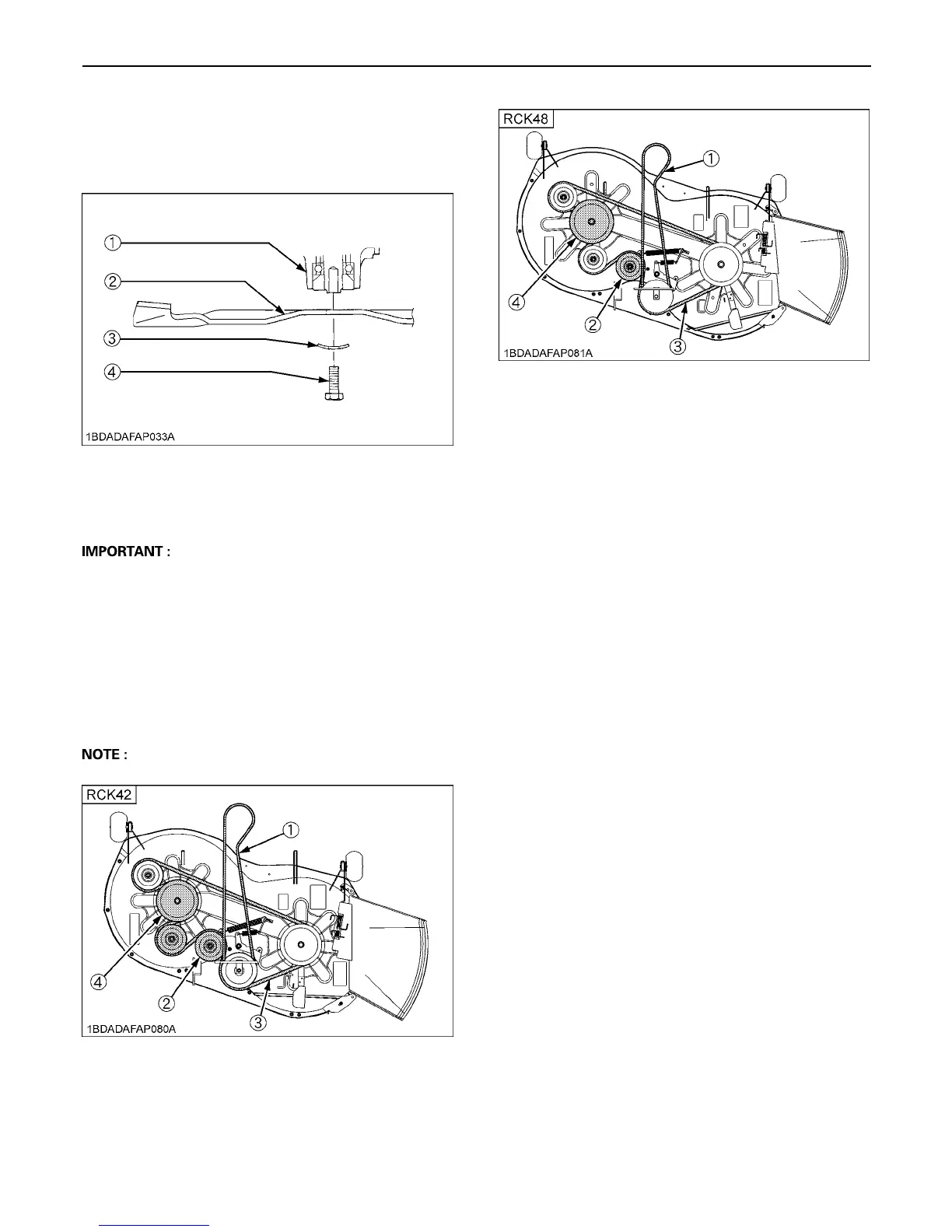

(1) Spindle holder
(2) Blade
(3) Cup washer
(4) Bolt
(1) PTO belt
(2) Tension pulley
(3) Belt
(4) Left side pulley
