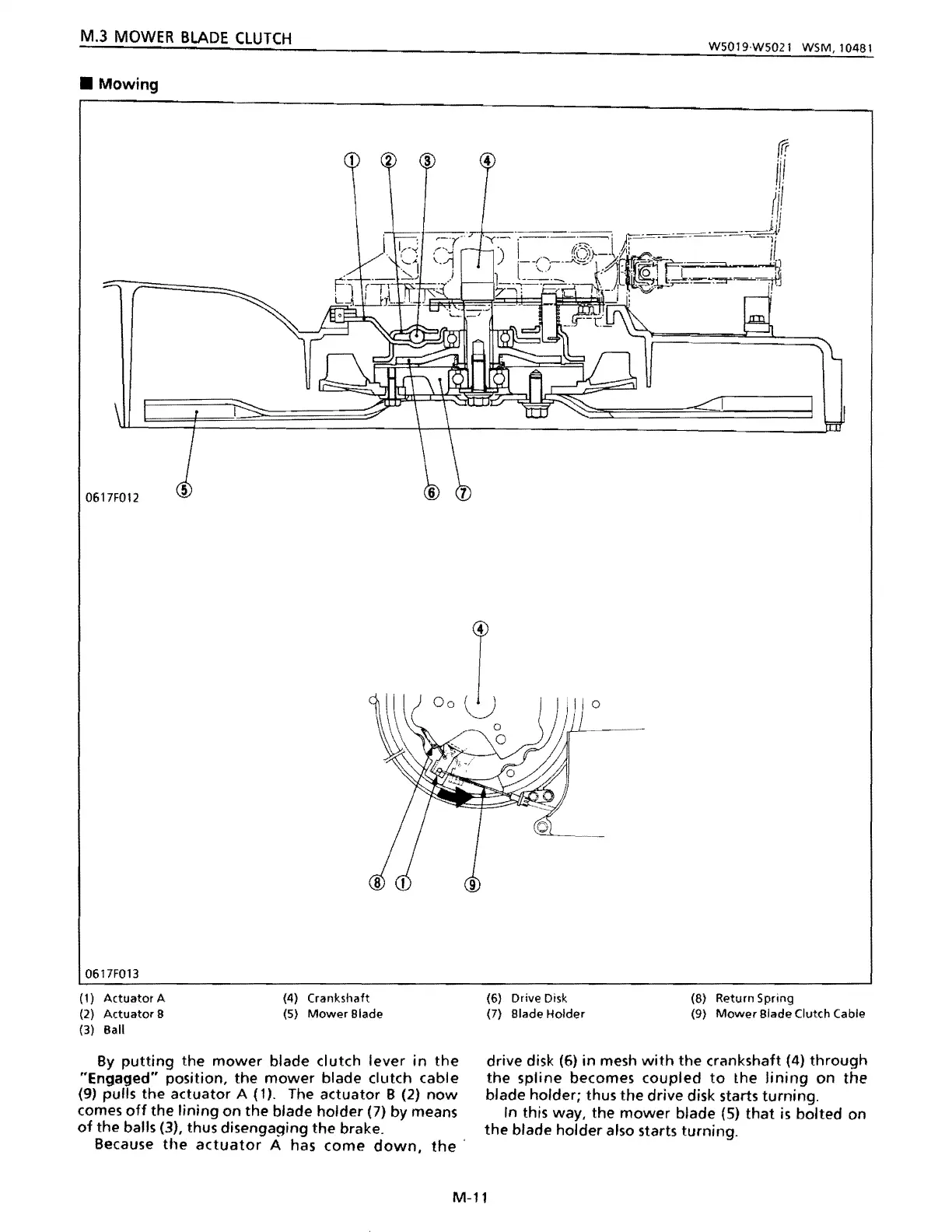

M.3 MOWER BLADE CLUTCH
W5019W5021 WSM,10461
• Mowing
0617F013
(1) Actuator A (4) Crankshaft
(2)
Actuator S
(5)
Mower Slade
(3) Ball
By putting the mower blade clutch lever in the
"Engaged" position, the mower blade clutch cable
(9) pulls the
actuator A (1). The actuator B (2) now
comes off the lining on the blade holder (7) by means
of the balls (3), thus disengaging the brake.
Because
the actuator A has come down, the'
(6) Drive Disk
(8) Return Spring
(7) Slade
Holder (9) Mower Slade Clutch Cable
drive disk (6) in mesh with the crankshaft (4) through
the spline becomes coupled to the lining on the
blade holder; thus the drive disk starts turning.
In this way, the mower blade (5) that is bolted on
the blade holder also starts turning.
