S.G GENERAL

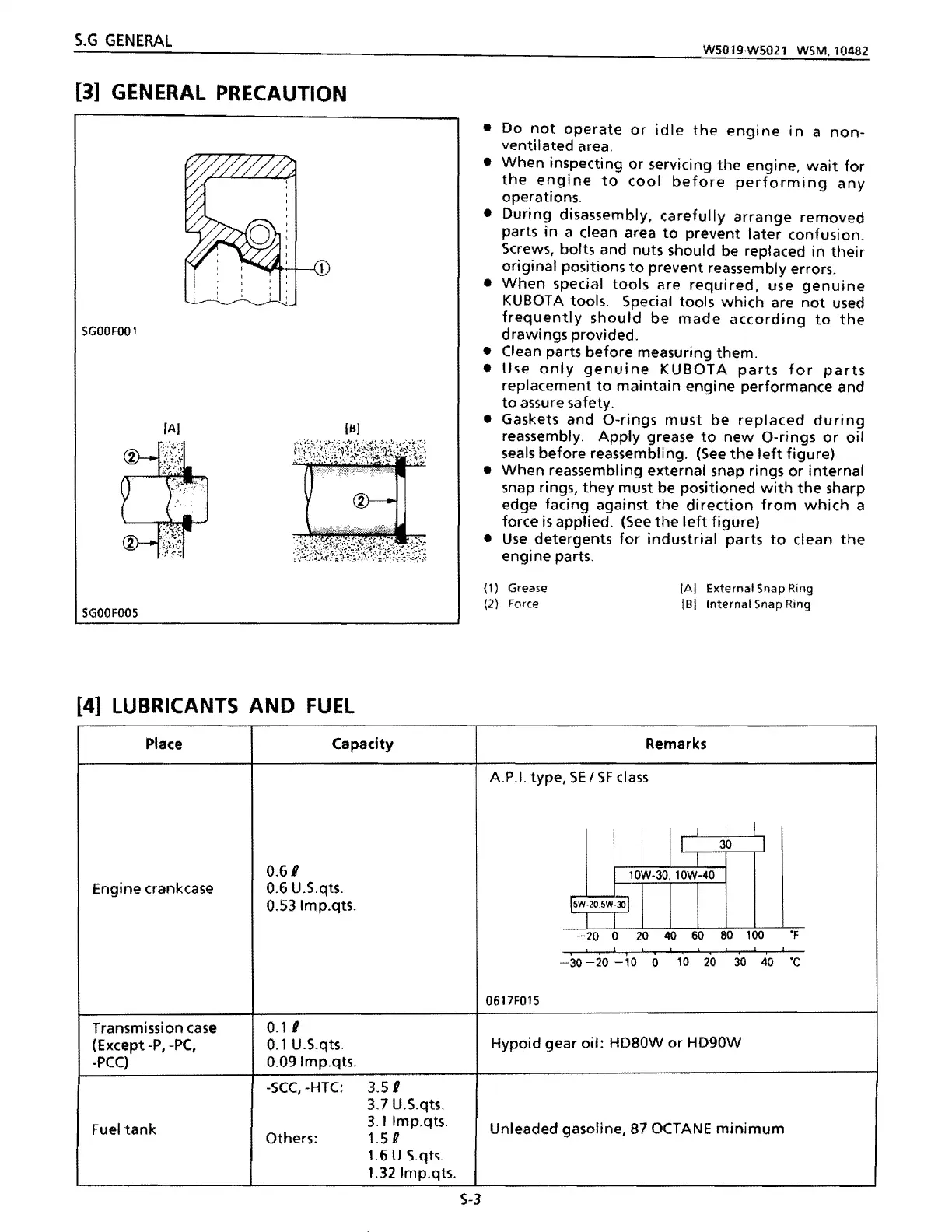

[3] GENERAL PRECAUTION
SGOOFOOI
IA]
18J
SGOOF005
[4] LUBRICANTS AND FUEL
WS019WS021 WSM.l0482
• Do not operate or idle the engine ina non-
ventilated area.
•
When inspecting or servicing the engine, wait for
the engine to cool before performing any
operations.
•
During disassembly, carefully arrange removed
parts
in a clean area to prevent later confusion.
Screws, bolts and nuts should
be replaced in their
original positions to prevent reassembly errors.
•
When special tools are required, use genuine
KUBOTA tools. Special tools which are not used
frequently should be made according to the
drawings provided.
• Clean parts
before measuring them.
• Use
only genuine KUBOTA parts for parts
replacement to maintain engine performance and
to assure safety.
• Gaskets and
a-rings must be replaced during
reassembly. Apply grease to new a-rings or oil
seals before reassembling. (See the left figure)
•
When reassembling external snap rings or internal
snap rings,
they must be positioned with the sharp
edge facing against the direction from which a
force
is applied. (See the left figure)
•
Use detergents for industrial parts to clean the
engine parts.
(1) Grease
[AI
External Snap Ring
(2) Force
181 Internal Snap Ring
Remarks
Place Capacity
A.P.1. type, SE I SF class
0.61
Engine crankcase
0.6 U.S.qts.
0.53Imp.qts.
Transmission
case
0.11
(Except -P, -PC,
0.1 U.S.qts.
-pcq
0.09Imp.qts.
-sec, -HTC: 3.51
3.7 U.S.qts.
Fuel
tank
Others:
3.1 Imp.qts.
1.51
1.6 U.s.qts.
1.32 Imp.qts.
I
II
I
I I
30
!
I
10W-30. 10W-40
!SW.205W-301
=20 0 20
40 60
80
100
'F
, ,
, ,
.
,
i
.
,
.
,
,
i
i
i i
-30 -20 -10
0
10
20
30 40 ·c
0617F01S
Hypoid gear oil: HD80W or HD90W
Unleaded gasoline, 87
OCTANE minimum
$-3
