G-3
B1830, B2230, B2530, B3030, WSM
G GENERAL
3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS
AND WIRING
To ensure safety and prevent damage to the machine and
surrounding equipment, heed the following precautions in handling
electrical parts and wiring.
• Check electrical wiring for damage and loosened
connection every year. To this end, educate the customer to
do his or her own check and at the same time recommend
the dealer to perform periodic check for a fee.
• Do not attempt to modify or remodel any electrical parts and
wiring.

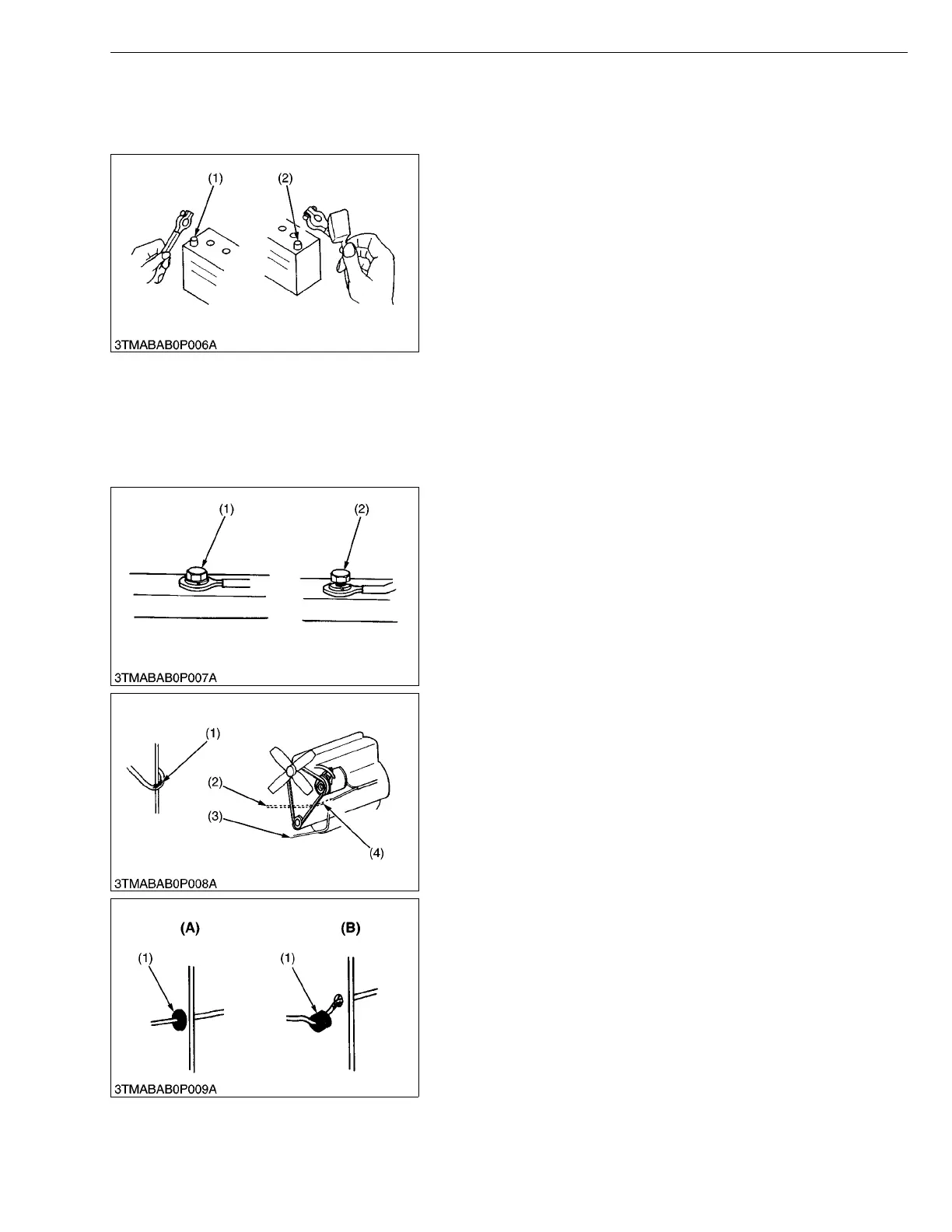

• When removing the battery cables, disconnect the negative
cable first. When installing the battery cables, connect the
positive cable first.
W10111140
[1] WIRING
• Securely tighten wiring terminals.
W10112160
• Do not let wiring contact dangerous part.
W10113130
• Securely insert grommet.
W10113880
(1) Negative Terminal (2) Positive Terminal
(1) Correct
(Securely Tighten)
(2) Incorrect
(Loosening Leads to Faulty Contact)
(1) Dangerous Part
(2) Wiring (Incorrect)
(3) Wiring (Correct)
(4) Dangerous Part
(1) Grommet (A) Correct
(B) Incorrect
To Next Page
