G-17
B1830, B2230, B2530, B3030, WSM
G GENERAL
[3] CHECK POINTS OF EVERY 50 HOURS
Checking Engine Start System (HST Model)
CAUTION
• Do not allow anyone near the tractor while testing.
• If the tractor does not pass the test, do not operate the
tractor.
■ Preparation before testing.
1. Sit on the operator’s seat.
2. Set the parking brake and stop the engine.
3. Shift the range gear shift lever to "NEUTRAL" position.
4. Place the speed control pedal in "NEUTRAL" position.
5. Shift the PTO clutch lever to "OFF" position.
■ Test : Switch for the speed control pedal
1. Depress the speed control pedal.
2. Turn the key to "START" position.
3. The engine must not crank.
■ Test : Switch for the PTO clutch lever
1. Place the speed control pedal in "NEUTRAL" position.
2. Shift the PTO clutch lever to "ON" position.
3. Turn the key to "START" position.
4. The engine must not crank.
W1014904
Checking Engine Start System (Manual Transmission Model)
CAUTION
• Do not allow anyone near the tractor while testing.
• If the tractor does not pass the test, do not operate the
tractor.
■ Preparation before testing.
1. Sit on the operator’s seat.
2. Set the parking brake and stop the engine.
3. Place the shuttle shift lever in "NEUTRAL" position.
4. Shift the PTO ON-OFF lever to "OFF" position.
■ Test : Switch for the shuttle shift lever
1. Shift the shuttle shift lever to the forward or reverse position.
2. Fully depress the clutch pedal and turn the key to “START”
position.
3. The engine must not crank.
■ Test : Switch for the PTO ON-OFF lever
1. Engage the PTO ON-OFF lever to “ON” position.
2. Shift the shuttle shift lever to the "NEUTRAL" position.
3. Turn the key to "START" position.
4. The engine must not crank.
W1032247

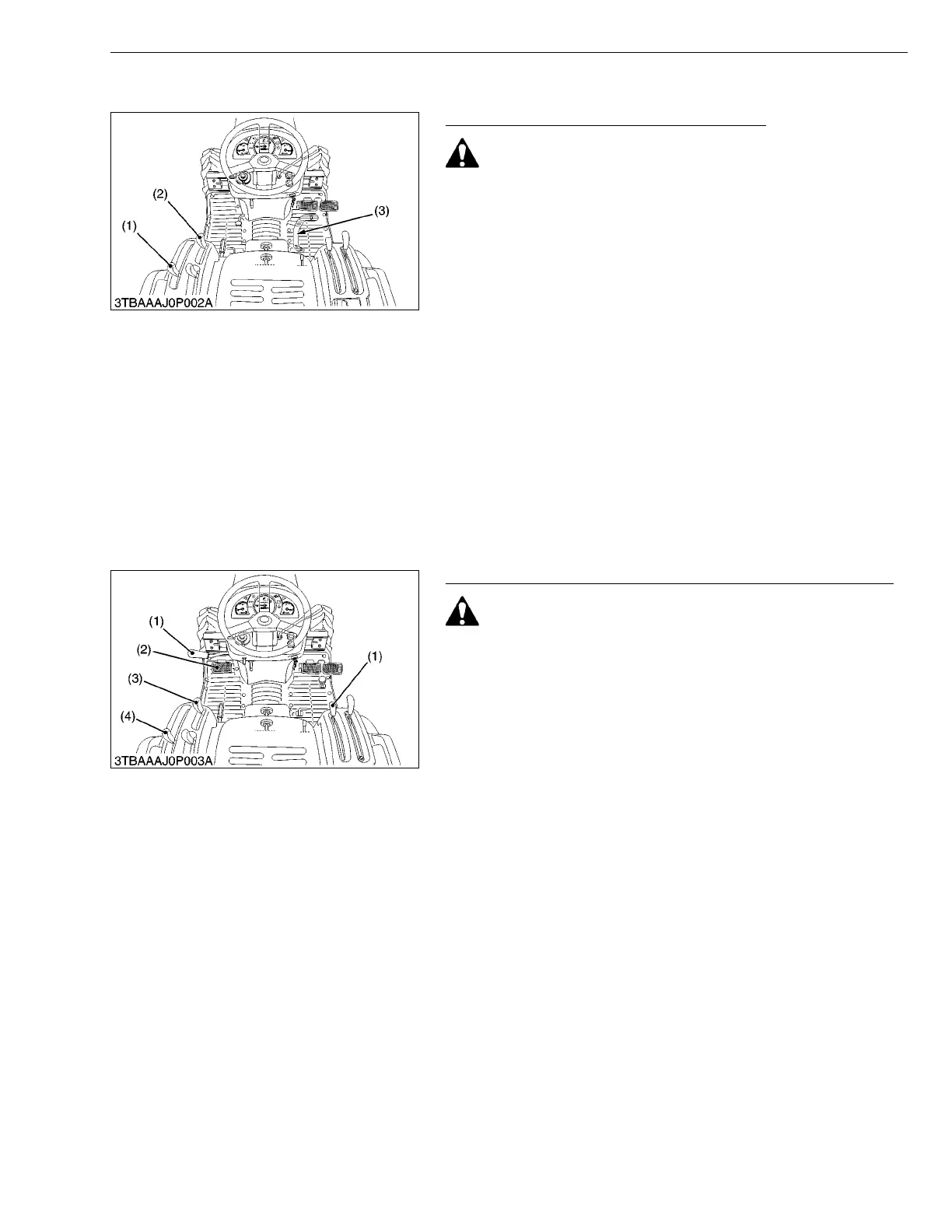

(1) Range Gear Shift Lever (L-M-H)
(2) PTO Clutch Lever
(3) Speed Control Pedal
(1) Shuttle Shift Lever
(2) Clutch Pedal
(3) PTO ON-OFF Lever
(4) Range Gear Shift Lever (L-M-H)
To Next Page
