G-6
B1830, B2230, B2530, B3030, WSM
G GENERAL

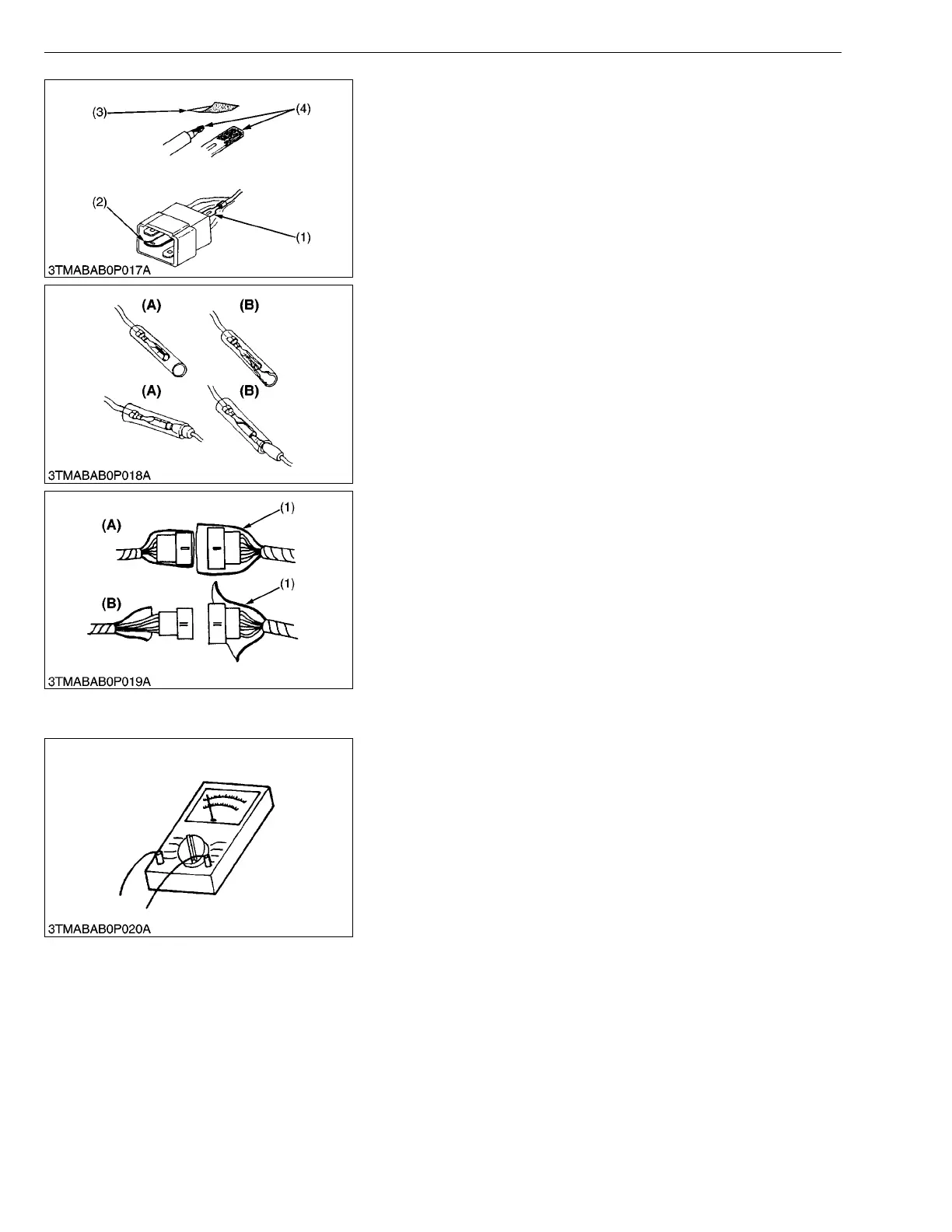

• Use sandpaper to remove rust from terminals.
• Repair deformed terminal. Make certain there is no terminal
being exposed or displaced.
W10123460
• Make certain that there is no female connector being too open.
W10124300
• Make certain plastic cover is large enough to cover whole
connector.
W10125190
[5] HANDLING OF CIRCUIT TESTER
• Use tester correctly following manual provided with tester.
• Check for polarity and range.
W10126840
(1) Exposed Terminal
(2) Deformed Terminal
(3) Sandpaper
(4) Rust
(A) Correct (B) Incorrect
(1) Cover (A) Correct
(B) Incorrect
