Kubota WSM LA271 User Manual

MECHANISM

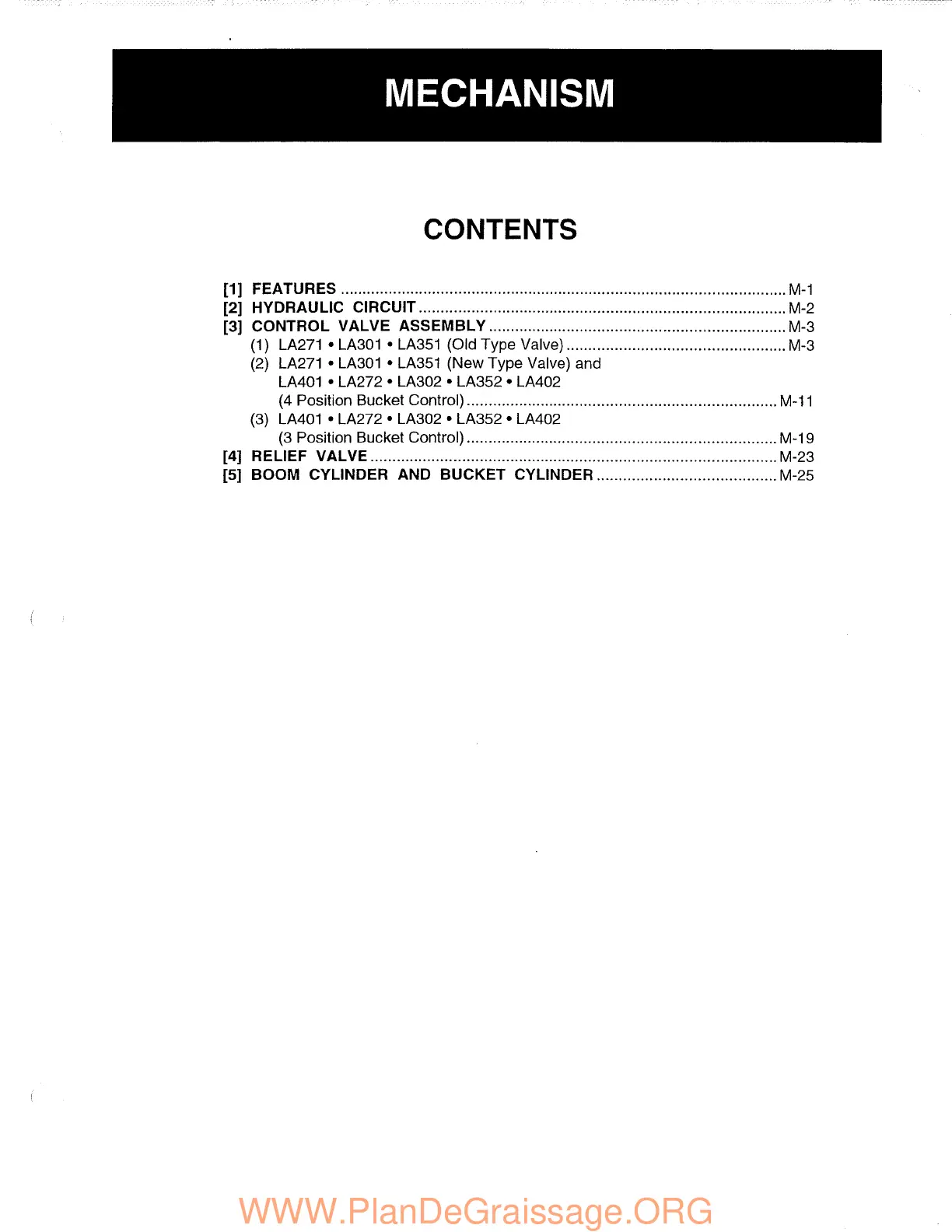

CONTENTS
[1] FEATURES M-1
[2] HYDRAULIC CIRCUIT M-2
[3] CONTROL VALVE ASSEMBLy M-3
(1) LA271 •
LA301 • LA351 (Old Type Valve) M-3
(2) LA271 •
LA301 • LA351 (New Type Valve) and
LA401 • LA272 • LA302 • LA352 • LA402
(4 Position Bucket Control) M-11
(3) LA401· LA272· LA302 • LA352· LA402
(3 Position Bucket Control) M-19
[4] RELIEF VALVE M-23
[5] BOOM CYLINDER AND BUCKET CYLINDER M-25
