Kubota WSM LA271 User Manual

MECHANISM
LA271 • LA301 • LA351 • LM01 • LA272· LA302· LA352· LM02 WSM, 17021

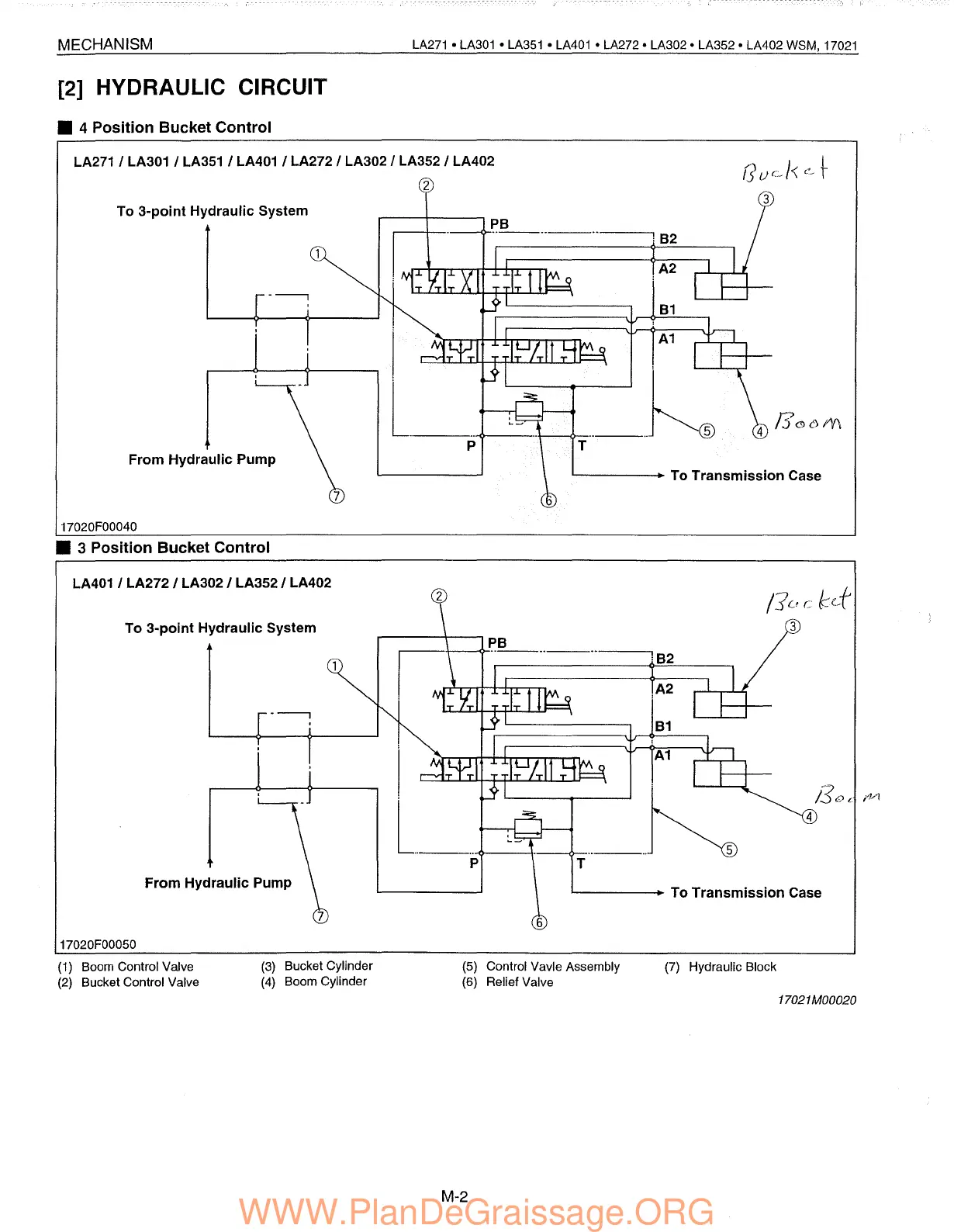

[2] HYDRAULIC CIRCUIT
• 4 Position Bucket Control
'------ To Transmission Case
--- .. ..q--- +-~=- ---
P T
From Hydraulic Pump
LA271 / LA301 / LA351 / LA401 / LA272 / LA302 / LA352 / LA402
2
To 3-point Hydraulic System
17020F00040
• 3 Position Bucket Control
'------+- To Transmission Case
'7
/.:J <9 ( ;'//1
4
(]L'C kef
3
I
L_ -Q------\~ _
LA401 / LA272 / LA302 / LA352 / LA402
From Hydraulic Pump
To 3-point Hydraulic System
17020F00050
(1) Boom Control Valve
(2) Bucket Control Valve
(3) Bucket Cylinder
(4) Boom Cylinder
(5) Control Vavle Assembly
(6) Relief Valve
(7) Hydraulic Block
17021M00020
M-2
