SERVICING
LA271
•
LA301
•
LA351
•
LA401
•
LA272·
LA302· LA352·
LA402 WSM,
17021
Connecting bar mounting
147
N·m
Tightening torque
15.0 kgf·m
bolt and nut
108 ft-Ibs

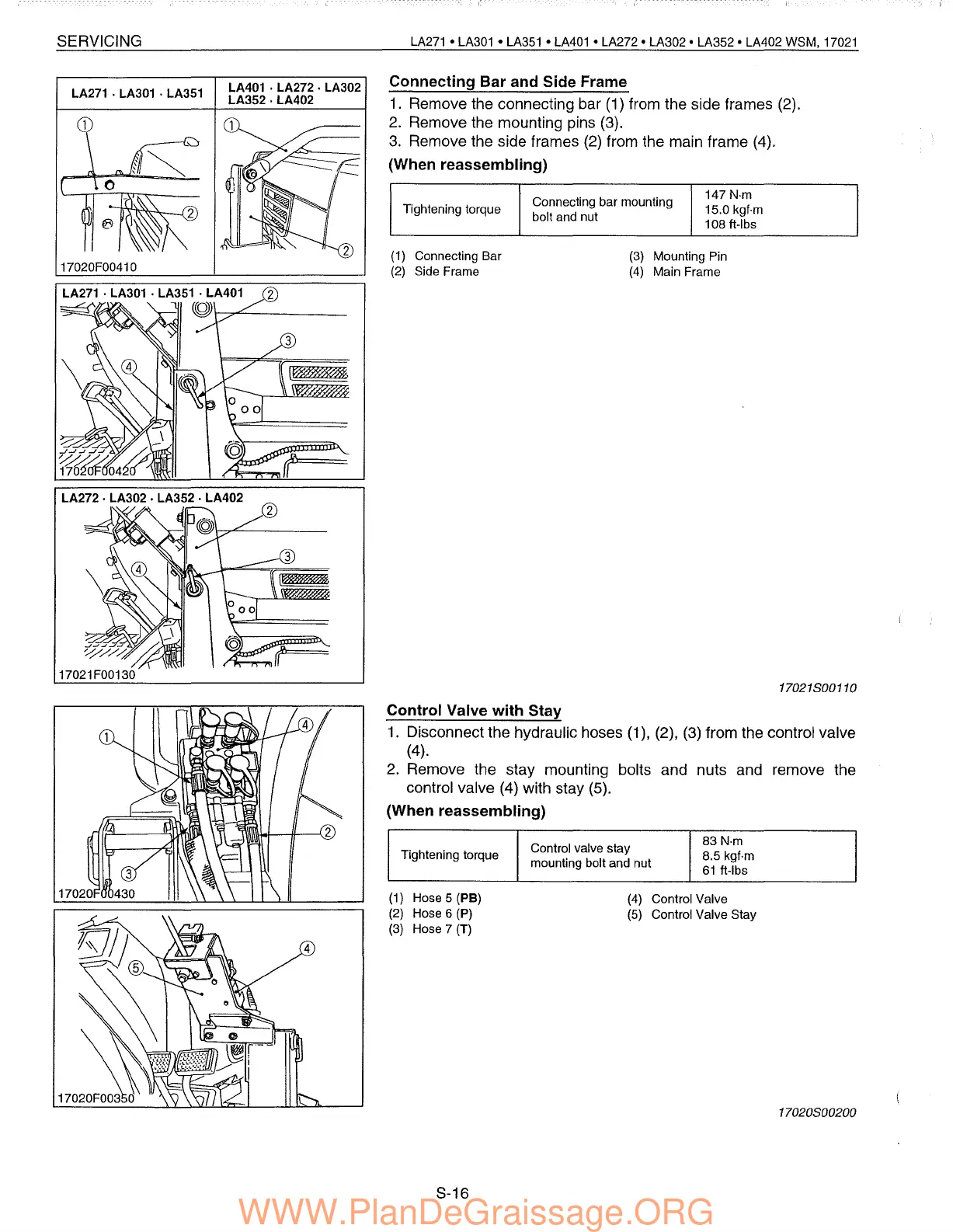

Connecting Bar and Side Frame
1.
Remove the connecting bar (1) from the side frames (2).
2.
Remove the mounting pins (3).
3.
Remove the side frames
(2)
from the main frame (4).
(When reassembling)
Control valve stay
83
N·m
Tightening torque
8.5 kgf·m
mounting bolt and nut
61
ft-Ibs
Control Valve with Stay
1.
Disconnect the hydraulic hoses (1), (2), (3) from the control valve
(4).
2.
Remove the stay mounting bolts and nuts and remove the
control valve (4) with stay (5).
(When reassembling)
LA271 . LA301 . LA351
LA401 . LA272 . LA302
LA352 . LA402
(1)
Connecting Bar
(2)
Side Frame
(1)
Hose 5 (PB)
(2)
Hose 6
(P)
(3)
Hose 7
(T)
S-16
(3)
Mounting Pin
(4)
Main Frame
(4)
Control Valve
(5)
Control Valve Stay
17021800110
17020800200
To Next Page
