Kubota WSM ZD321 User Manual

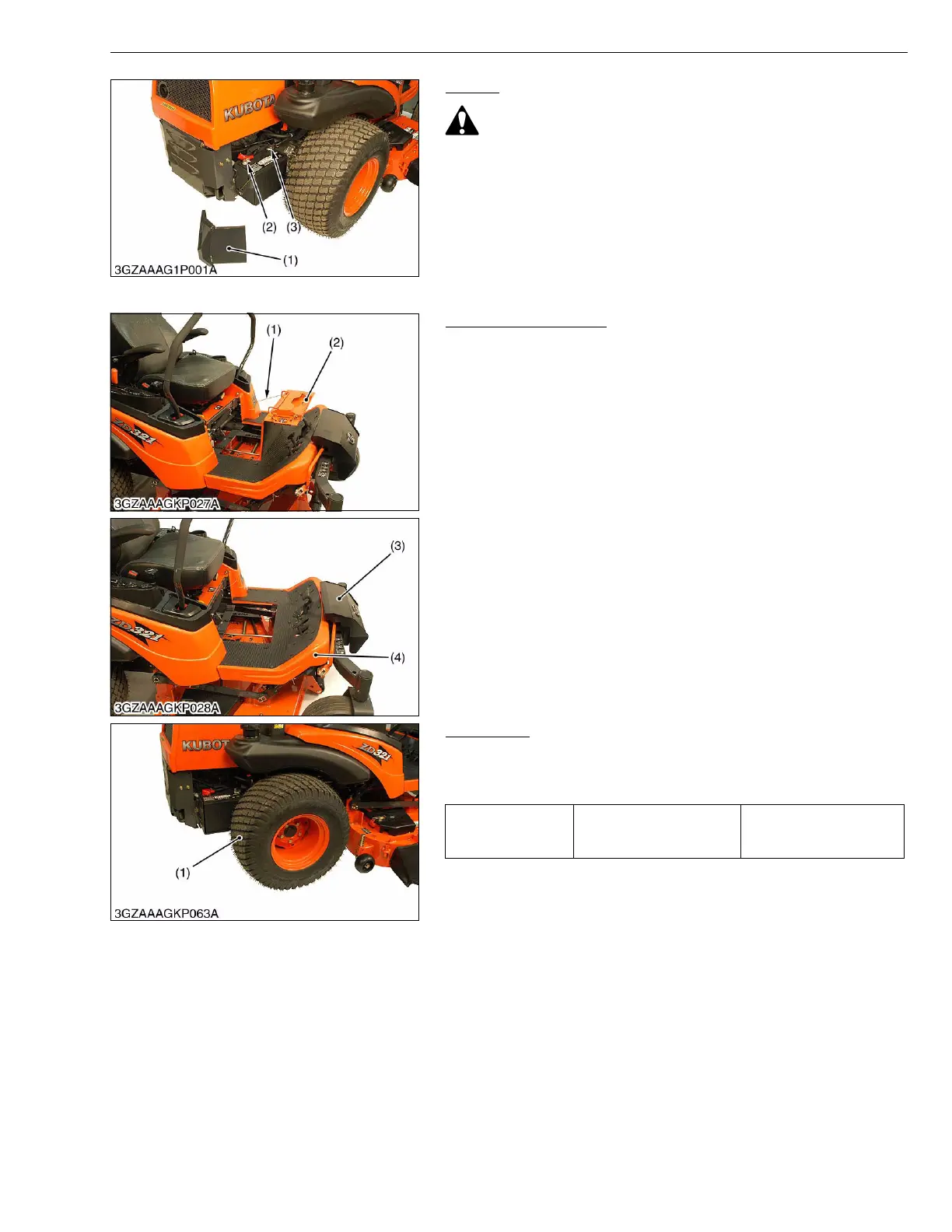

2-S27
ZD321, ZD326, ZD331, WSM
TRANSAXLE
Battery
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the battery cover (1).
2. Disconnect the negative cable (3) from the battery.
3. Disconnect the positive cable (2) form the battery.
W1033684
Step, Center and Step
1. Remove the clevis pin and remove the cable (1).
2. Remove the clevis pins and remove the step center (2).
3. Remove the front cover (3).
4. Remove the step (4).
W1033815
Rear Wheel
1. Lift up and secure with jack stands or blocking the rear of the
machine frame, and remove the rear wheels (1).
(When reassembling)
W1033946
(1) Battery Cover
(2) Positive Cable
(3) Negative Cable
(1) Cable
(2) Step Center
(3) Front Cover
(4) Step
Tightening torque
Rear wheel mounting
screw
108.5 to 130.2 N·m
11.1 to 13.3 kgf·m
80 to 96 lbf·ft
(1) Rear Wheel
KiSC issued 04, 2007 A

Kubota WSM ZD321 Specifications

General

Fuel Type	Diesel
Engine Type	Diesel
Transmission	Hydrostatic
Cutting Width	60 inches
Type	Zero-Turn Mower
Turning Radius	Zero turn
