Kubota WSM ZD331 User Manual

2-S30
ZD321, ZD326, ZD331, WSM
TRANSAXLE
Swashplate

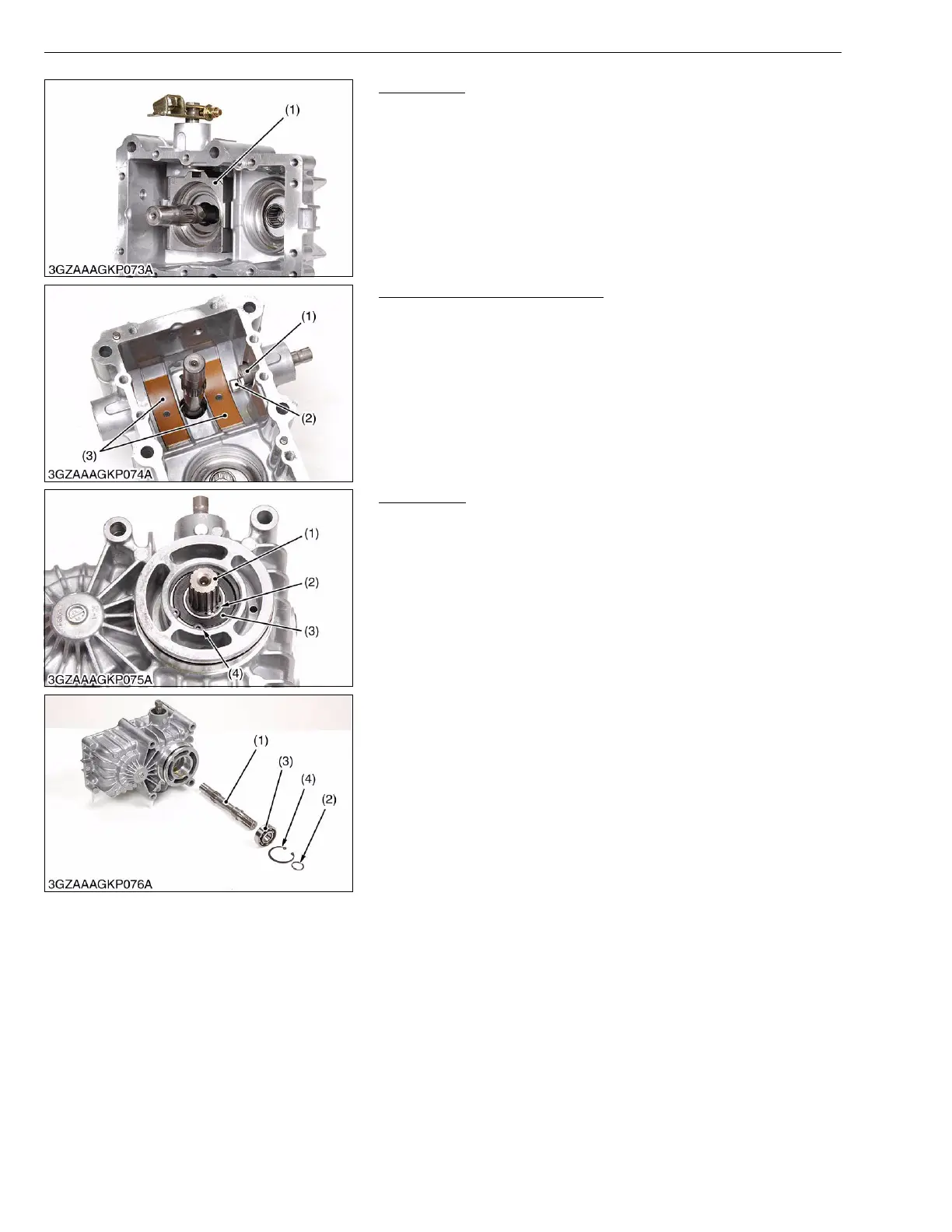

1. Remove the swashplate (1) from the housing.
W1035905
Slot Guide and Cradle Bearing
1. Remove the slot guide (2) from the trunnion arm (1).
2. Remove the cradle bearing (3) from the housing.
W1035995
Pump Shaft
1. Remove the external snap ring (2).
2. Tap the pump shaft (1) with a plastic hammer slightly to side out
it from the housing with the ball bearing (3).
3. Remove the internal snap ring (4) and bearing (3).
W1036142
(1) Swashplate
(1) Trunnion Arm
(2) Slot Guide
(3) Cradle Bearing
(1) Pump Shaft
(2) External Snap Ring
(3) Ball Bearing
(4) Internal Snap Ring
