Kubota WSM ZD331 User Manual

2-S32
ZD321, ZD326, ZD331, WSM
TRANSAXLE

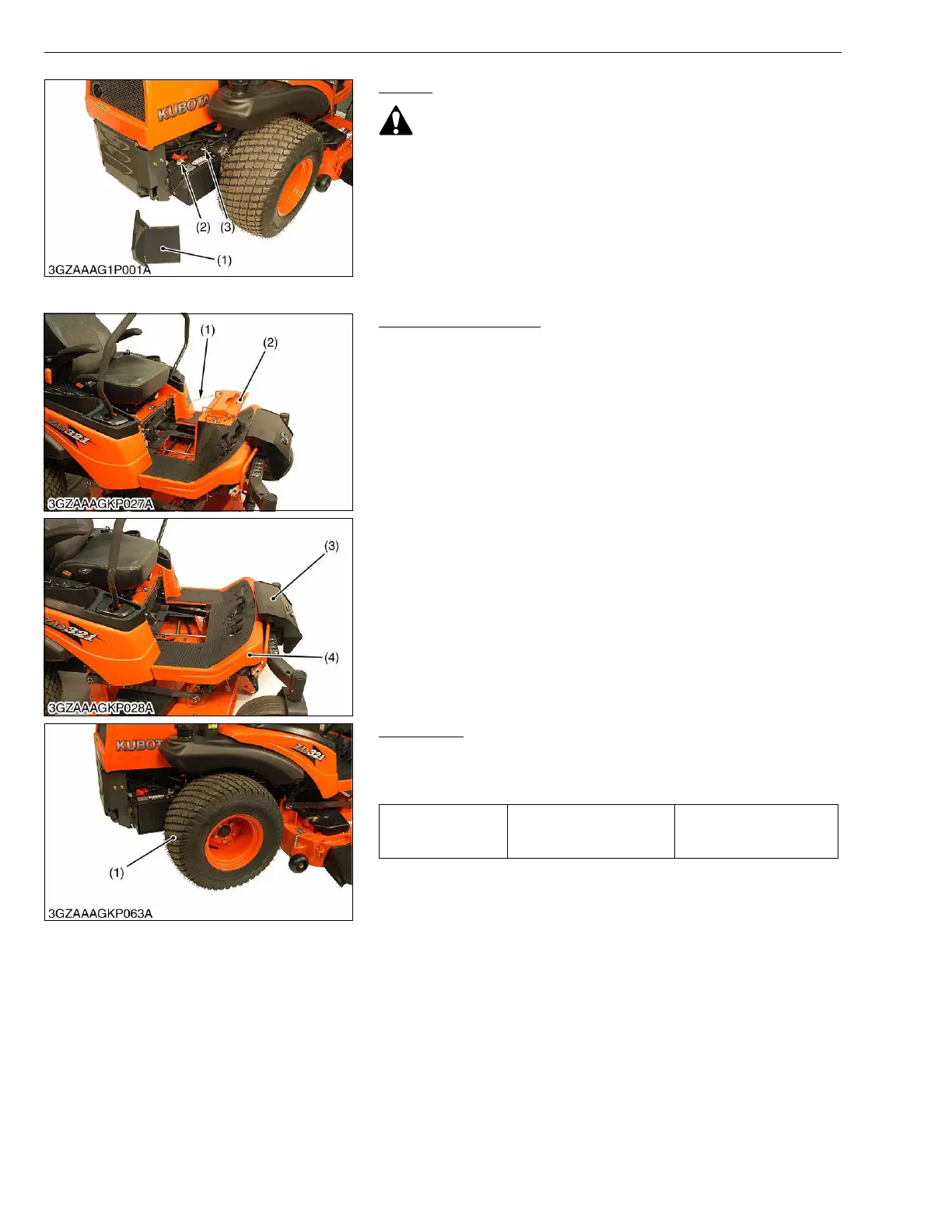

Battery
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the battery cover (1).
2. Disconnect the negative cable (3) from the battery.
3. Disconnect the positive cable (2) form the battery.
W1036589
Step, Center and Step
1. Remove the clevis pin and remove the cable (1).
2. Remove the clevis pins and remove the step center (2).
3. Remove the front cover (3).
4. Remove the step (4).
W1036720
Rear Wheel
1. Lift up and secure with jack stands or blocking the rear of the
machine frame, and remove the rear wheels (1).
(When reassembling)
W1036871
(1) Battery Cover
(2) Positive Cable
(3) Negative Cable
(1) Cable
(2) Step Center
(3) Front Cover
(4) Step
Tightening torque
Rear wheel mounting
screw
108.5 to 130.2 N·m
11.1 to 13.3 kgf·m
80 to 96 lbf·ft
(1) Rear Wheel
KiSC issued 04, 2007 A
