Kubota WSM ZD331 User Manual

3-M1
ZD321, ZD326, ZD331, WSM
FRONT AXLE

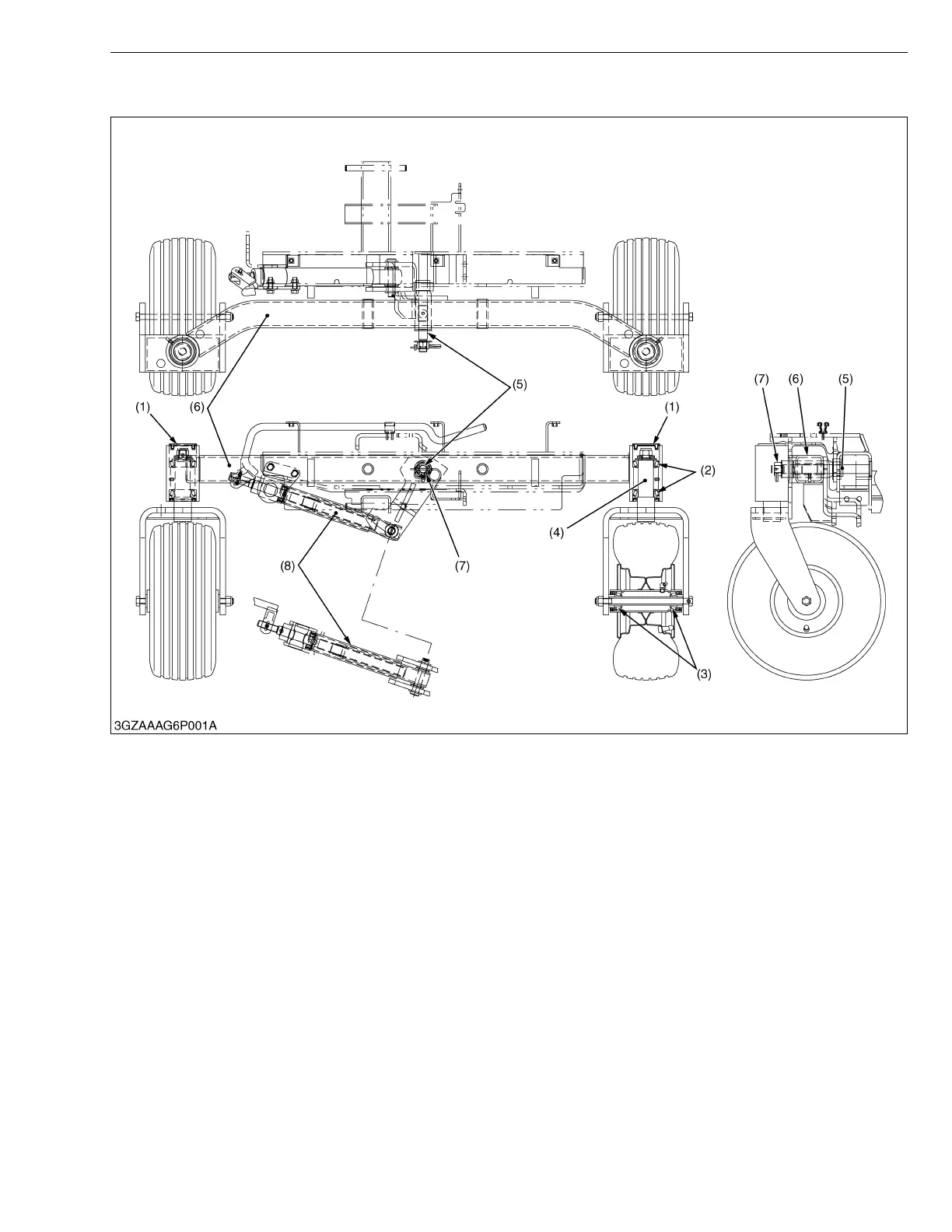

1. STRUCTURE
The front axle is constructed as shown above. The shape of the front axle is relatively simple, and the front axle
is supported at its center with the center pin (5), so that steering operation is stable even on uneven grounds in a grass
field. And this time, the structure that the front axle can be fixed is adopted.
(1) Cap
(2) Taper Roller Bearing
(3) Taper Roller Bearing
(4) Wheel Bracket
(5) Center Pin
(6) Front Axle
(7) Slotted Nut
(8) Lift Up Adjuster
