4-M7
ZD18(F) · ZD21(F) · ZD28(F), WSM
HYDRAULIC SYSTEM
4. LIFT CYLINDER
W1014031

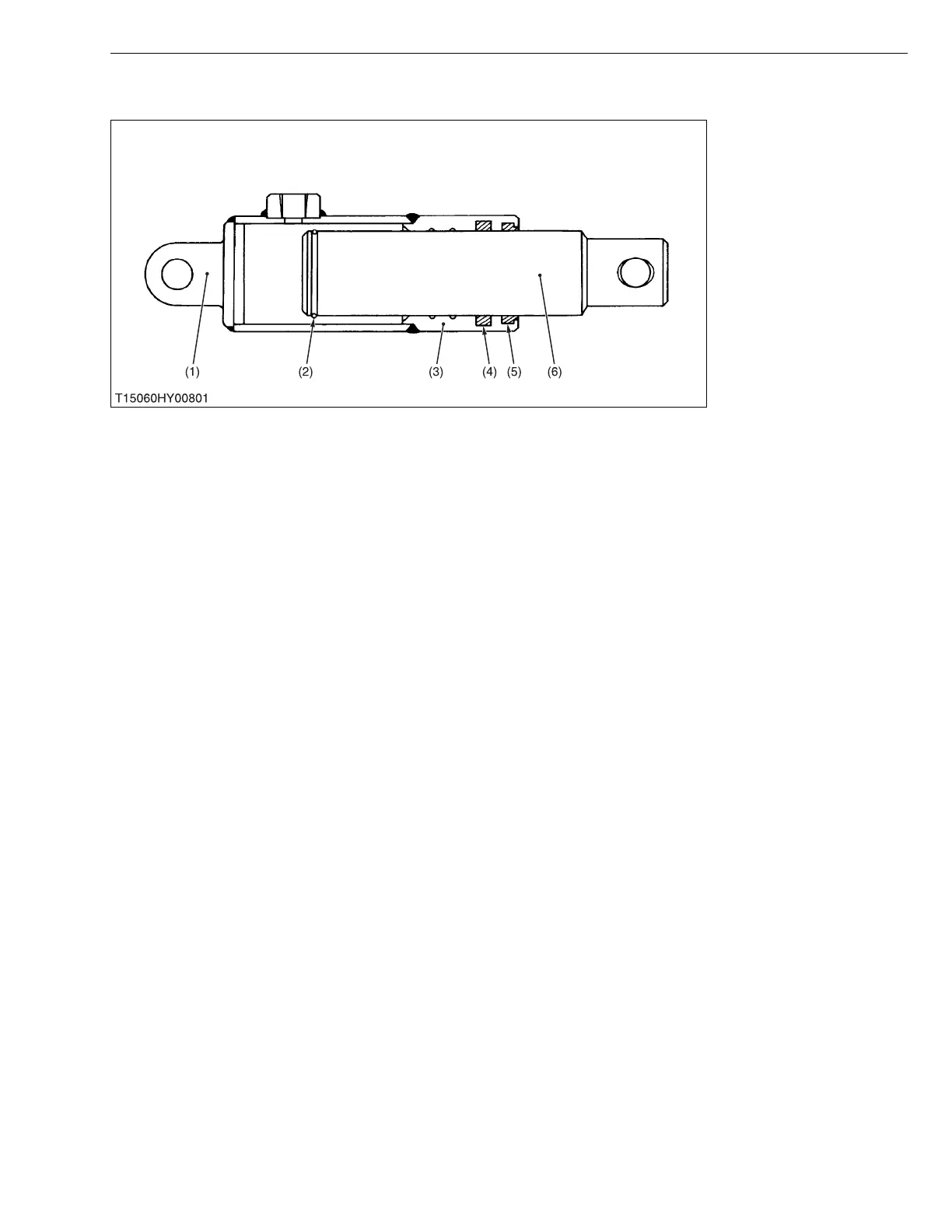

The lift cylinder consists of the tube end (1), cylinder tube (3), piston rod (6) and other parts as shown in the figure
above.
This cylinder is single acting type.
(1) Tube End
(2) Snap Ring
(3) Cylinder Tube
(4) Packing
(5) Scraper
(6) Piston Rod
KiSC issued 04, 2009 A
