5-M7
ZD18(F) · ZD21(F) · ZD28(F), WSM
ELECTRICAL SYSTEM

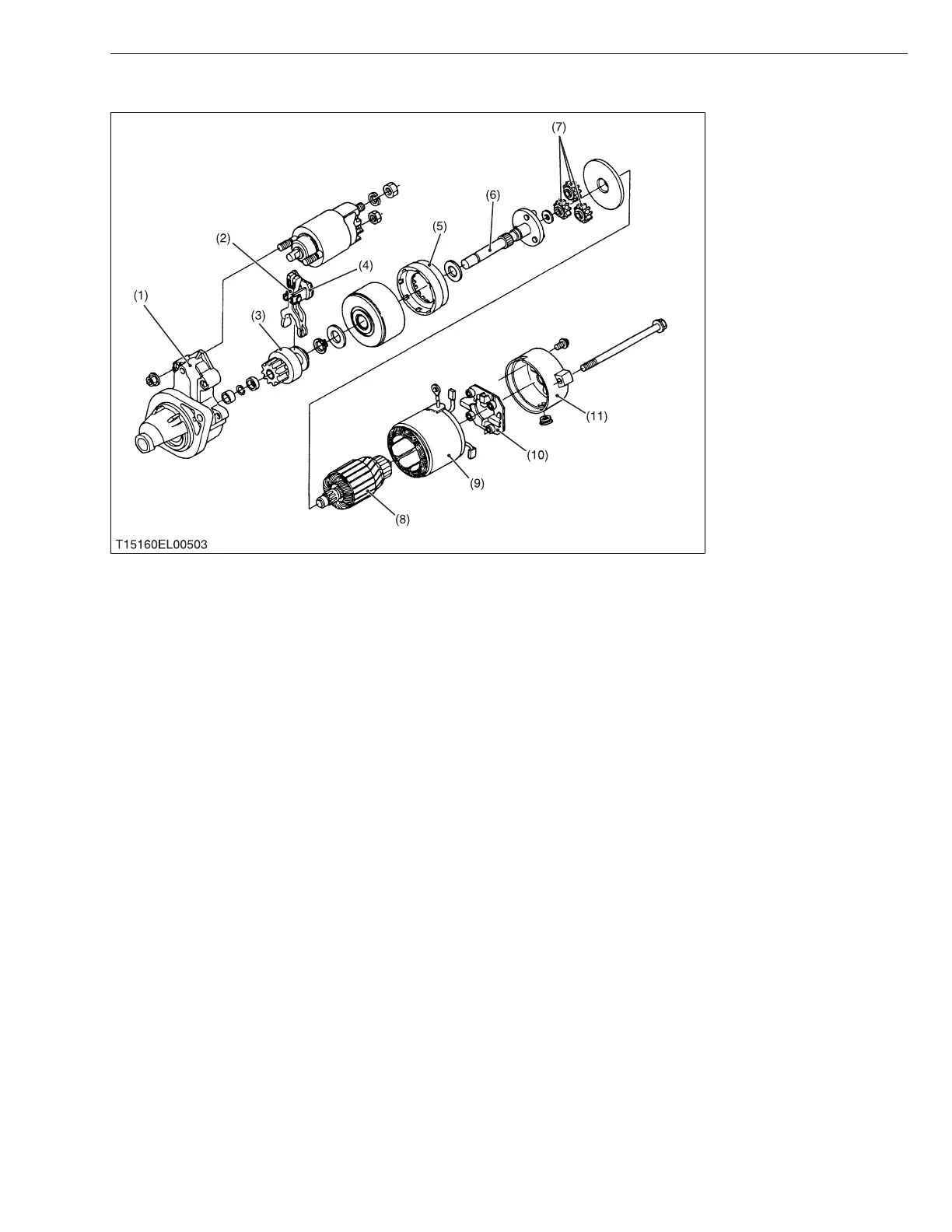

[1] STARTER
W1012893
The reduction system is used planetary gears, and the speed of gear shaft (6) is reduced to approximately one fifth
of the armature shaft (8).
(1) Housing
(2) Magnetic Switch
(3) Overrunning Clutch
(4) Drive Lever
(5) Internal Gear
(6) Gear Shaft
(7) Planetary Gear
(8) Armature Shaft
(9) Yoke
(10) Brush Holder
(11) Rear End Holder
KiSC issued 04, 2009 A
