Kubota ZD221 User Manual

9MOWER MOUNTING
ENGLISH
MOWER MOUNTING

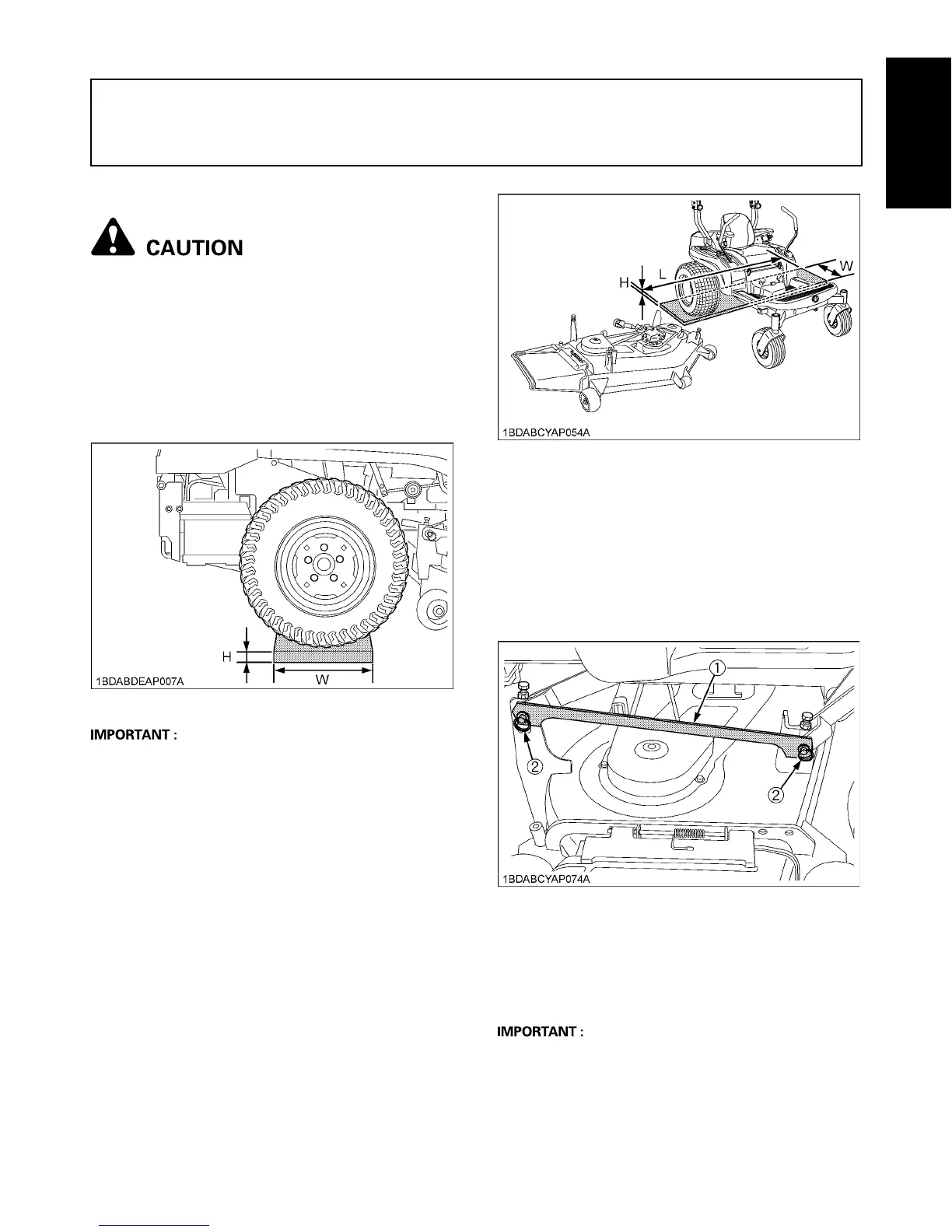

MOUNTING THE MOWER DECK
To avoid personal injury:
A Park the machine on a firm and level surface.
A Apply the parking brake.
A Stop the engine and remove the key.
1. Before mounting the mower deck, raise the lift links to
the full up position.
2. Adjust the cutting height control dial to 1 in. position.
3. Go backward so that right and left rear tires would be
on the board 40 mm (1.57 in.) high.
A Use a board more than 300 mm (11.8 in.) wide and
1400 mm (55.1 in.) long.
A Make sure that right and left rear tires are firm on the
board.
4. Change the direction of the front tires as shown in the
figure.
5. Place the mower deck at the right side of the machine.
6. Slide the mower deck under the machine, and make
sure that the mower gear case is placed properly in the
center of the machine.
7. Adjust the lift pedal to the lowest position and pull
down the lift links.
8. Attach the lift links to the mower deck with attaching
hardware.
9. Install universal joint.
Pull back the coupler of the universal joint.
Push the universal joint onto the PTO shaft until the
coupler locks.
A Tug the universal joint backward and forward to make
sure it is locked securely.
H: 40 mm (1.57 in.) W: 300 mm (11.8 in.)
H: 40 mm (1.57 in.)
L: 1400 mm (55.1 in.)
W: 300 mm (11.8 in.)
(1) Lift link
(2) Clevis pin, Plain washer, Snap ring

Kubota ZD221 Specifications

General

Style	Zero Turn
Color	Red
Cutting Width	48/54 in
Cutting Height	1-5 in
Cutting Method	-
Number of Blades	3
Drive System	Cruise Control (Hydrostatic)
Case Size: U1R	CCA: 450A
Noise Level	-
Features	Superior Quality Cut
Accessories	-
Motor / Engine Model	Kubota D782
Power Output	-
Cylinders	3
Generator	-
Power / Fuel Type	Diesel
Fuel Tank Volume	23.0 liters (6.1 US gal.; 5.1 Imp. gal)
SAE 5W30 (below 32°F/0°C)	SAE 5W30
w/o Filter: 44 oz. (1	1.32 Imp. qt.)

Weight and Dimensions

Depth	2130 mm (83.9 in)
Height	1770 mm (69.7 in)
Width	1210 mm (47.6 in)
Net Weight	550 kg (1213 lbs)
