ON
OFF
POWER
FUSE: T8A / 250V
120V 60Hz 160W
AC FUSE
MODEL KPM8420T
POWERED MIXER
SPEAKERSAB
50
49
53
51
52

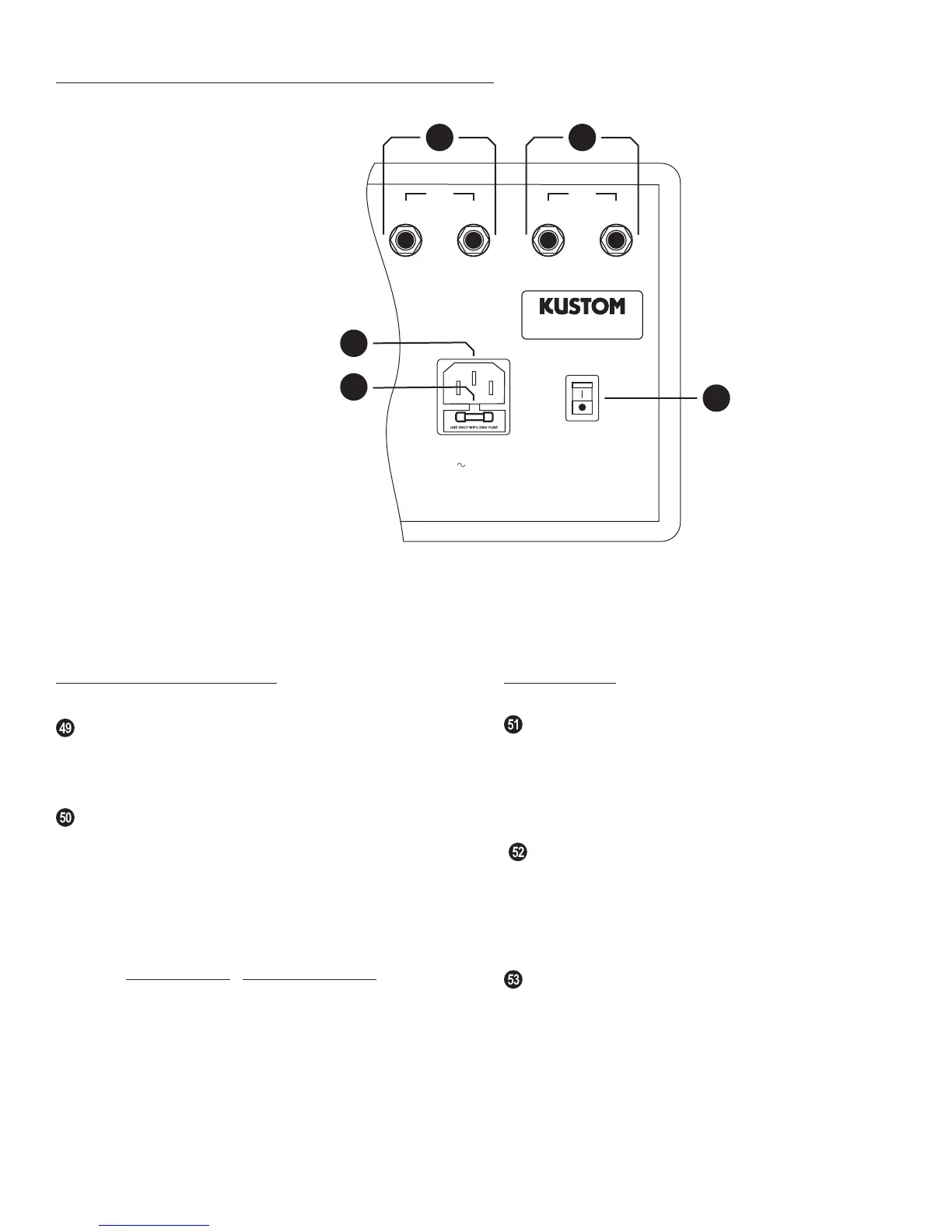

POWER AMP OUTPUTS, AC POWER
POWER AMP OUTPUT AC POWER
SPEAKERS A
SPEAKERS B:
Caution:
POWER ON / OFF
AC Power Cord Receptacle:
FUSE:
:
Switch:
These two ¼” jacks deliver the power from the A
power-amp to the speakers.
These two ¼” jacks deliver the power from the B
power-amp to the speakers.
(Impedance) Per Channel:
4 OHMS
Per Channel:
Use speakers rated at 125 Watts @ 8
ohms or higher. Severe damage to the speakers is
possible if too low of wattage speaker is used.
The KPM8420T is ON when the switch is in the
UP position. Press the switch to the DOWN
position to turn the KPM8420T off. Always
remove the AC plug from the wall when not in use.
Insert the AC cord (Provided) firmly into the AC
connector. NOTE: Replace the AC power cord if
protective jacket is damaged or ground pin is
damaged or removed.
The fuse is located in a housing just below the
receptacle. Replace only with same type and size.
To remove the fuse, pull the tab located above the
fuse symbol away from the fuse housing.
MINIMUM LOAD
POWER RATING
200 , . Both
amps driven to 100%
Watts@4 ohms 125 Watts@8 ohms
10
To Next Page
