1. Remove the oil filler/dipstick 1 from the right crankcase cover.
NOTE: When draining the engine oil, remove the oil strainer
from the bottom of the crankcase and clean the screen.
3. Replace the drain bolt 2. Tighten it to the specified torque.
Do not overfill the engine with oil. Overfilling the en-
gine can cause oil leaks and/or oil contamination of
the air filter element. Always make sure the oil level is
above the "L" mark but not higher than the "F" mark
on the dipstick.
Engine oil capacity - Super 8-50: 0.85 qt (0.8 L)
Engine oil capacity - Super 8-150: 0.95 qt (0.9 L)
Engine oil viscosity: SAE 15W-40
5. Wipe the dipstick 1 off with a clean cloth and reinstall
it in its hole, but
do not thread it into the engine case.
Push the dip stick to the engine case until it touches the
case.
6. Remove the dip stick and visually inspect the oil level on
the stick. The engine oil level should be above the "L"
mark but not higher than the "F" mark. Add or remove oil
as required.
7. Replace the oil filler/dipstick and tighten it securely.
MAINTENANCE
Oil drain plug torque: 18 lb-ft (25 N-m)
4. Add engine oil through the oil filler/dipstick hole.
11
11
1

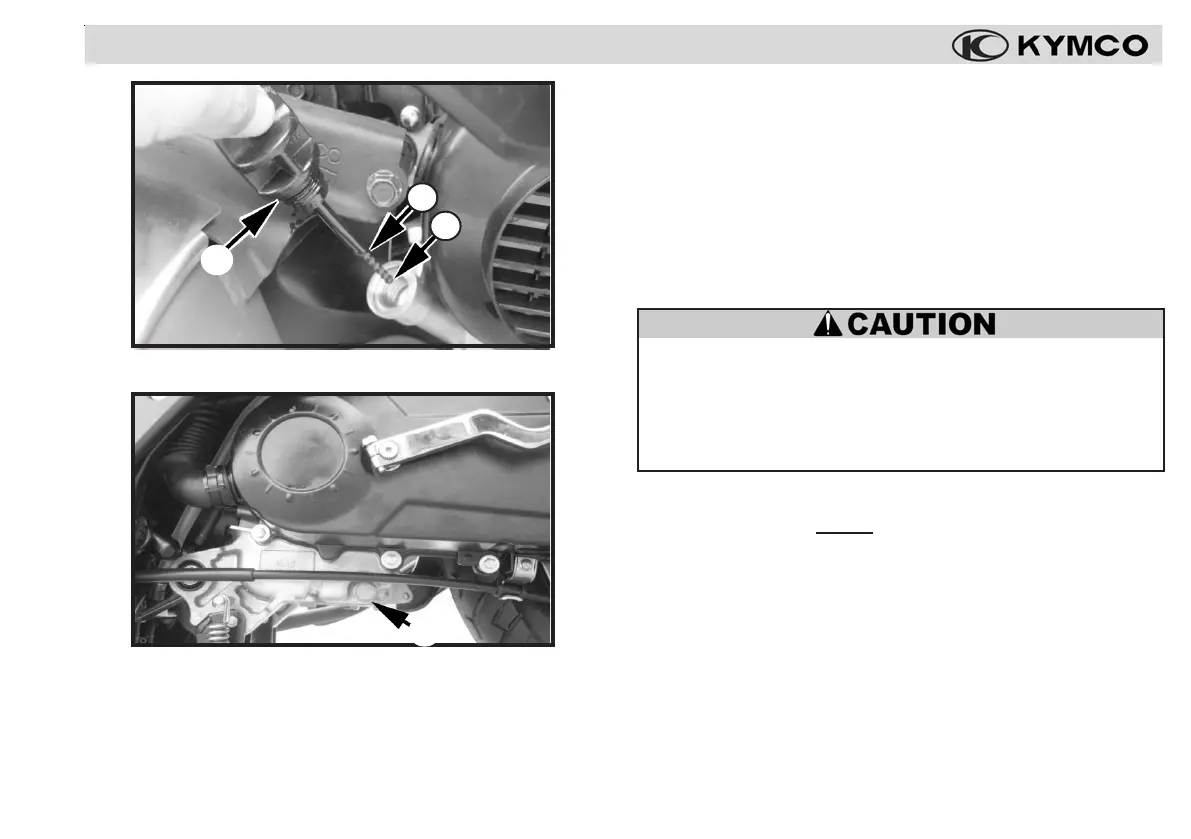

2. Place a suitable container (drain pan) under the left crank-
