Kyocera ECOSYS M5521cdw User Manual

10-32
Troubleshooting > Clearing Paper Jams

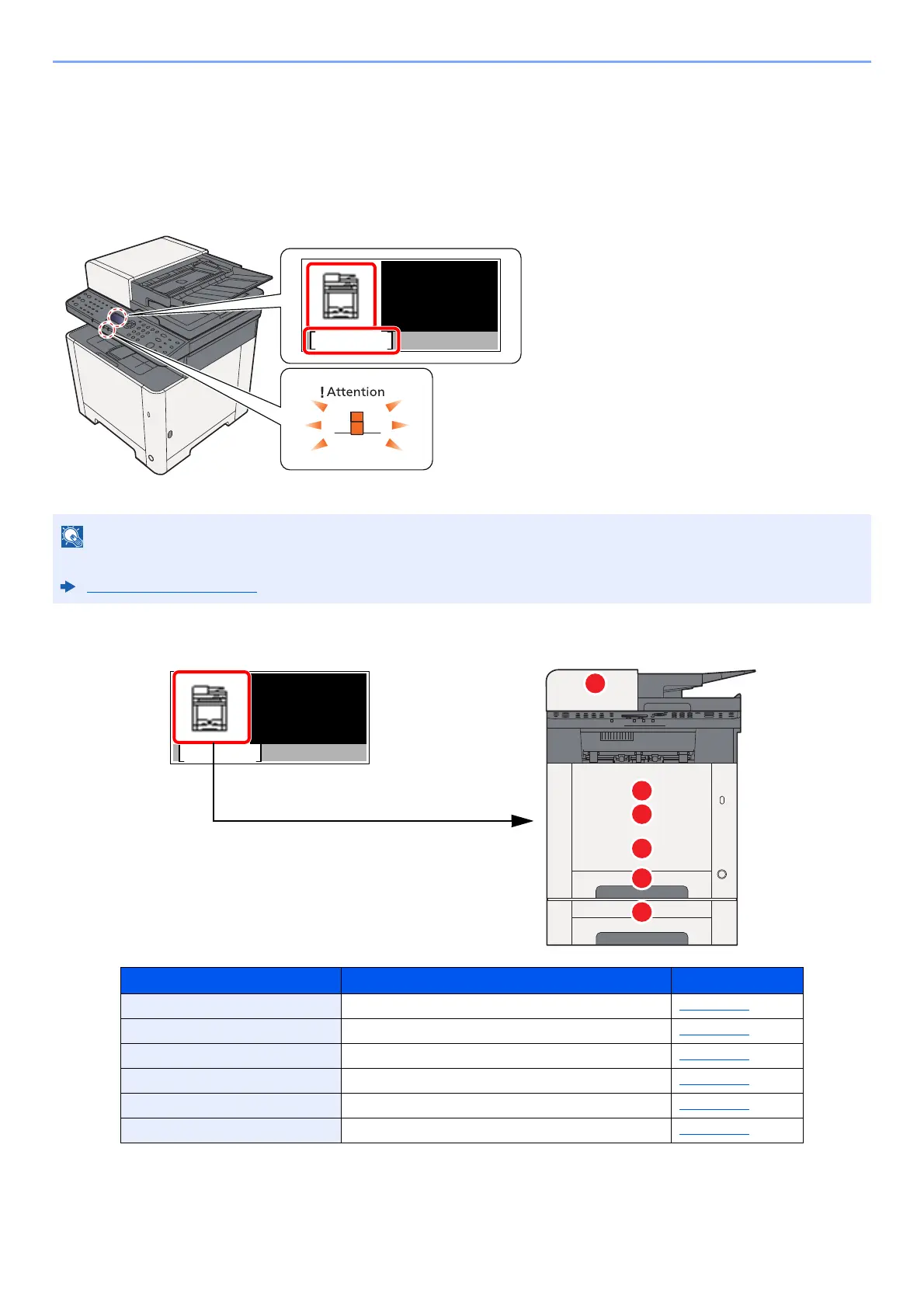

Clearing Paper Jams
If a paper jam occurs, the message display will display "Paper Jam." and the machine will stop. Refer to these
procedures to remove the jammed paper.
Jam Location Indicators
If a paper jam occurs, the location of the jam will be displayed on the message display as well as the clearing instructions.
After you remove the jam, the machine will warm up again and the error message will be cleared. The machine resumes
with the page that was printing when the jam occurred.
1 Shows the location of a paper jam.
2 Displays the Help screen.
NOTE
For details on Help Screen, refer to the following:
Help Screen (page 2-14)
Paper Jam Location Indicator Paper Jam Location Reference Page
A Cassette 1 page 10-33
B Cassette 2 page 10-34
C Multipurpose Tray page 10-36
D Document Processor page 10-42
E Duplex Unit page 10-39
F Rear Cover 1 page 10-39
Paper
jammed in
Cassette 1.
Help
JAM****
1
2
Paper
jammed in
Cassette 1.
Help
JAM****
A
C
F
E
D
B
