Operator's Manual – Mega Stacker
© LAI GAMES

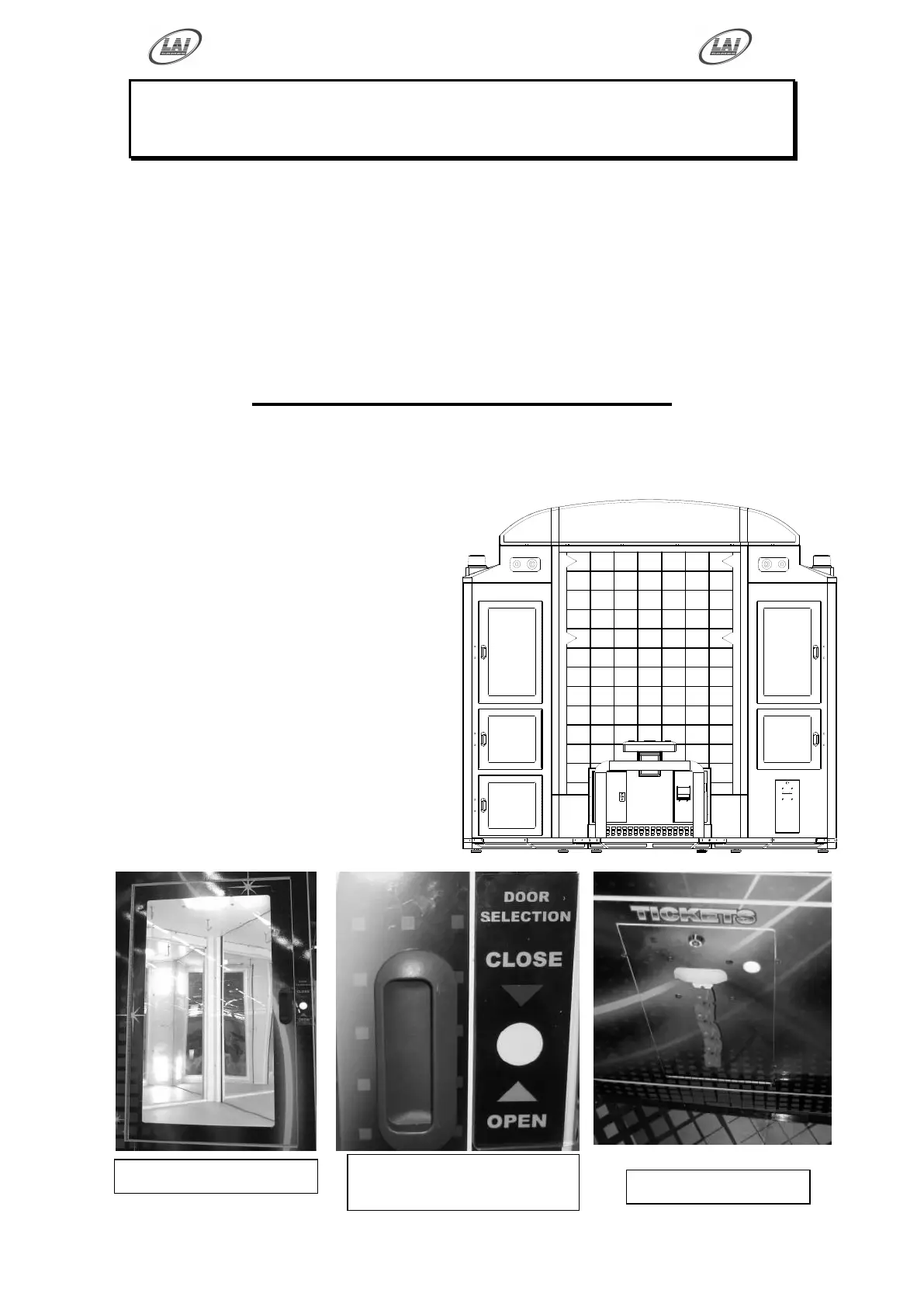

FITTING PRIZES IN PRIZE
COMPARTMENTS
Access to the prize doors can be done by pressing and Holding both the Red
Test Button and Green Service button for a few seconds. These buttons
are mounted on the service panel above the Cashbox. This access‟s the Prize door
access mode. Once this is accessed uses the “Select” button on the player control panel
to step through the prize door you want to unlock and open, the lights on the prize door
will light up so you know which one is selected. Press the Start/Stop button to unlock
the prize door, pressing the Start/Stop button again will lock the prize door. Please note
all prize doors will lock after leaving this mode.
Prize Compartments Sizes
The Compartments are an offset corner shape with a distance of 20” to the rear
corner from the door. This would allow soft toys to go right back just a few
inches away from the door and for boxes approximate half that distance.
Door 1 Frame Size 32” X 18”
Plush Size 32” X 18” X 18”
Cube Size 32” x 18” X 10”
Door 2 Frame Size 17” X 18”
Plush Size 17” X 18” X 18”
Cube Size 17” x 18” X 10”
Door 3 Frame Size 17” X 18”
Plush Size 17” X 18” X 18”
Cube Size 17” x 18” X 10”
Door 4 Frame Size 32” X 18”
Plush Size 32” X 18” X 18”
Cube Size 32” x 18” X 10”
Door 5 Frame Size 17” X 18”
Plush Size 17” X 18” X 18”
Cube Size 17” x 18” X 10”
Prize door LED indicator
Open (Green) Closed (Red)
