Linux Software Developers Kit (SDK) Quick Start Guide 7
3
3
.
.
T
T
a
a
r
r
g
g
e
e
t
t
S
S
e
e
t
t
u
u
p
p
Connecting the Lantronix Evaluation Board
This section describes how to connect the MatchPort AR evaluation board or XPort Pro demo board to
your host computer and network.
Connecting an Evaluation Board Power
1. Make sure that the power switch on the evaluation or demo board is set to off.
2. Select the appropriate power plug adaptor for your geographical location. Insert it into the slot on the
Universal Power Supply; then plug the power supply into an outlet.
3. Connect the output plug of the power supply to the evaluation or demo board.
Connecting an Evaluation Board Serial Port
1. Connect one end of the supplied DB9F/F (DB25F on EDS1100) serial cable to the serial port on the
laptop or desktop.
2. Connect the other end of the supplied DB9F/F serial cable to the serial port on the evaluation board
(CON1 on MatchPort AR and EDS2100).

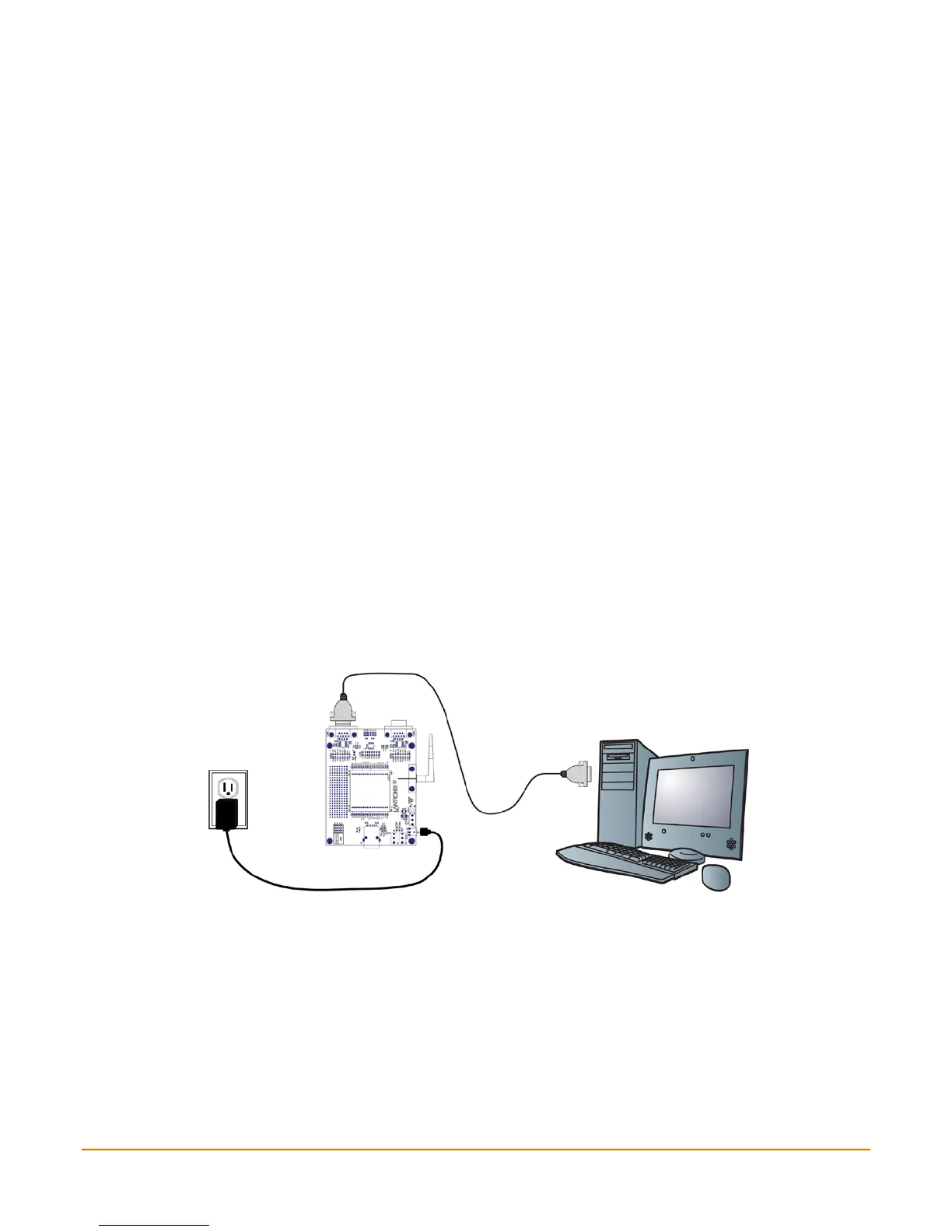

Figure 3-1. Connecting an Evaluation Board via Serial Port
