Quick Start Guide
EDS4100
QUICK CONNECT

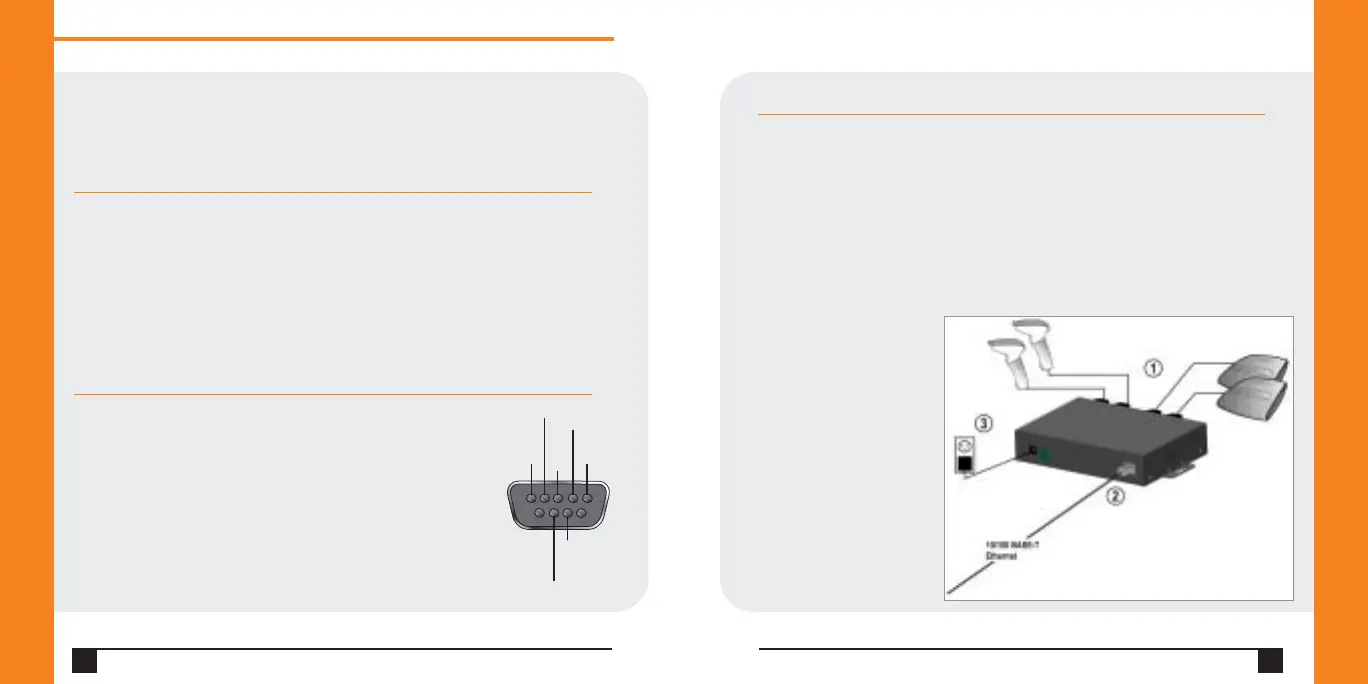

Complete the following steps in order.Refer to the numbers in the
figure below.
1. Connect a serial device to your unit.
2. Connect an Ethernet cable to the RJ45 port.
3. If not using Power over Ethernet (PoE),supply power to your unit using the
power supply that was included in the packaging.
4. Supply power to the serial device.
Note:The required
input voltage is 9-30 VDC
(center +) for the barrel
connector or 42-56 VDC
for the screw terminal
connector (4W maximum
power required).
2
WWW.LANTRONIX.COM
3
The EDS products allow serial devices to connect and communicate over an
Ethernet network.This Quick Start will step you through hardware installation
and configuration of your EDS4100.
WHAT’S IN THE BOX
In addition to the EDS,the box contains the following items:
PART #COMPONENT DESCRIPTION
520-080-R Power cube,100-240VAC,with international adapters
(depending on model)
500-164 DB9F-DB9F Null Modem Cable
CD-ED-01 CD-ROM containing the User Guide,software utilities,tutorial
and Quick Start Guide.
PINOUTS
The EDS also supports RS485/422.For more pinout
information,see the User Guide on the CD or on
the Lantronix Web site at www.lantronix.com
CTS (in)
RTS (out)
DTR (out)
GND
TX (out)
RX (in)
DCD (in)
51
69
RS232
