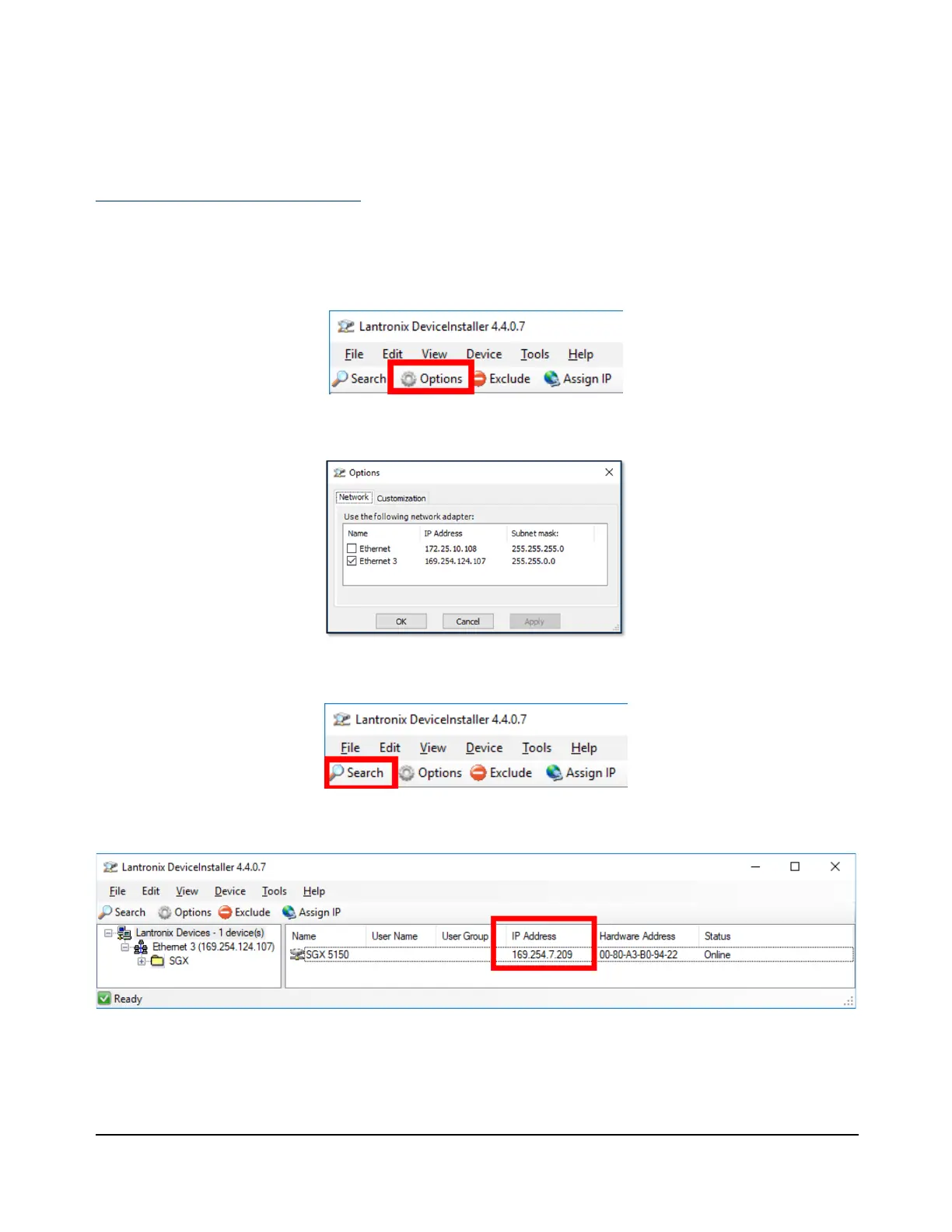

Appendix E – GUI Based Configuration via Ethernet
When reset, the SGX 5150 randomly assigns a random IP address for the Ethernet port 169.254.xxx.xxx
where x = random number (subnet mask is /16 or 255.255.0.0). The best way to find this random address is to
use Device Installer - a free program from Lantronix. This program is available at
www.lantronix.com/support/downloads
1. Connect the Ethernet port of the SGX 5150 to a network adapter to a local PC. Make sure the adapter is
set to DHCP (see Appendix B).
2. Once the software is installed, run Device Installer.
3. Click on Options.
(Figure 24)
4. Select the correct network adapter (example shown in Figure 24).
(Figure 25)
5. Click on Search.
(Figure 26)
6. The randomly generated IP address appears as indicated below.
(Figure 27)
7. Type the IP address you see into a browser (as shown in Appendix D – Step 4) and follow the Appendix D
steps thereafter.
