LaserLiner MasterLevel Box Pro User Manual

10
2
4
3
MasterLevel Box Pro
ZERO
HOLDREAD
Rev.1216
MasterLevel Box Pro
A quality product from
GmbH & Co. KG
Donnerfeld 2, 59757 Arnsberg,
Germany, Tel.: +49 2932 638-300,
Fax -333, www.laserliner.com
EN
Switching on and measuring
– Switch the DigiLevel Plus on using the on/off switch (3).
– The slope angle (7) is shown in the display. If slopes are
measured overhead, the direction of display adjusts auto-
matically.
– The current slope direction is also shown by the symbol (2).
Make sure that the reference function
is deactivated before measuring ABS ON.
!
Reference function to transfer angles
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD
MasterLevel Box Pro
ZERO
HOLDREAD

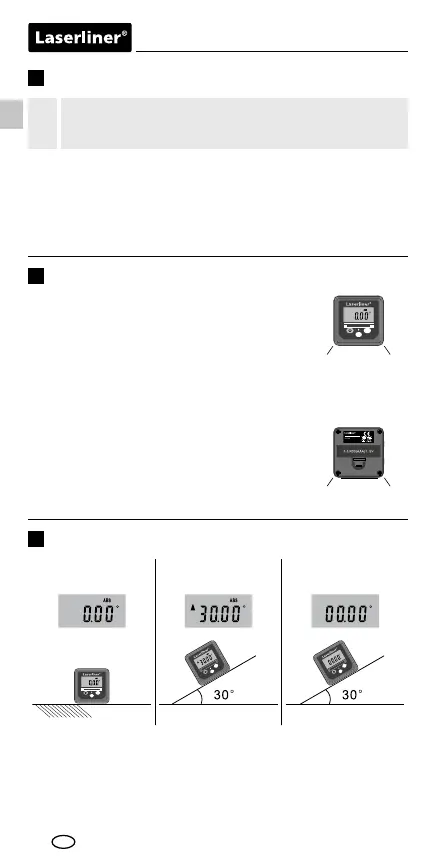

1. ABS mode 3. Relative
measuring mode
2. ABS mode
Calibration
1. Place the measuring face (17) on an even
surface with position mark. Switch on
device (3). To access calibration mode
simultaneously press buttons 3 and 8.
-1- appears on the display.
2. Press the ON/OFF button (3) again.
-1- ashes. The display then changes to -2-.
3. Turn the spirit level by 180° and place it
exactly on the marked surface.
Now press the ON/OFF button (3).
-2- ashes. Calibration is concluded when
the measured value appears on the display.
