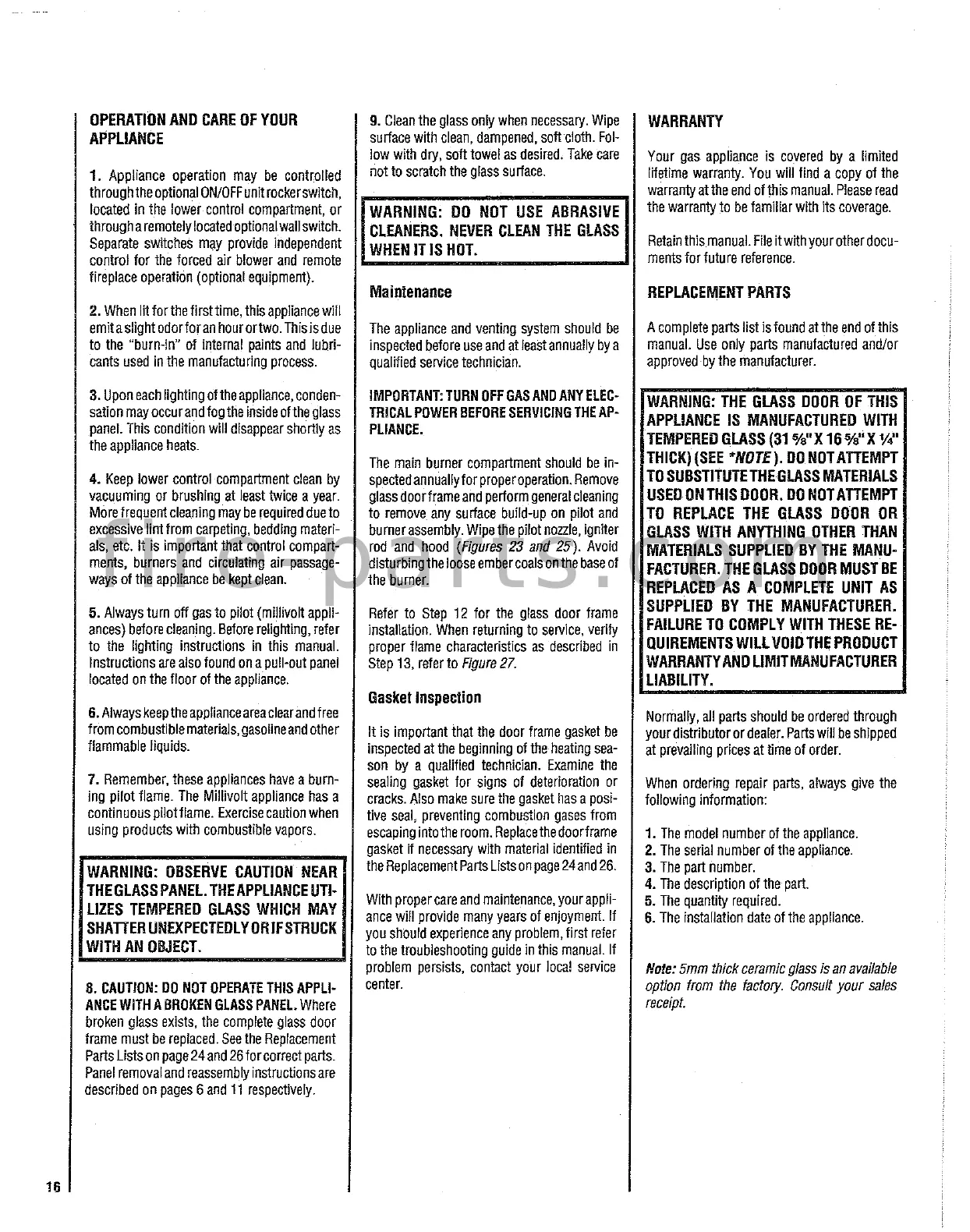

OPERATION AND CARE OF YOUR
APPLIANCE
1. Appliance operation may be controlled
through the optional ON/OFF unit rockerswitch,
located in the fower-control compartment, or
through a remotely located optional wall switch.
Separate switches may provide independent
control for the forced air blower and remote
fireplace operation (optional equipment).
2. When lit for the first time, this appliance will
emita slight odor for an hour ortwo. This is due
to the “burn-in” of interna! paints and lubri-
cants used in the manufacturing process.
3. Upon each lighting of the appliance, conden-
sation may occur and fog the Inside of the glass
panel. This condition will disappear shortly as
the appliance heats.
4. Keep lower control compartment clean by
vacuuming or brushing at least twice a year.
More frequent cleaning may be required due to
excessive lint from carpeting, bedding materi-
als, etc. it is important that contro! compart-
ments, burners and circulating air passage-
ways of the appliance be kept clean.
5. Always turn off gas to pilot (millivolt appli-
ances) before cleaning. Before relighting, refer
to the lighting instructions in this manual.
Instructions are also found on.a pull-out panel
located on the floor of the appliance.
6. Always keep the appliance area clear and free
from combustible materials, gasoline and other
flammable liquids.
7. Remember, these appliances have a burn-
ing pitot flame. The Millivolt appliance has a
continuous pilot flame. Exercise caution when
using products with combustible vapors.
9. Clean the glass only when necessary. Wipe
surface with clean, dampened, soft cloth. Fol-
low with dry, soft towel as desired. Take care
not to scratch the glass surface.
WARNING: DO NOT USE ABRASIVE
CLEANERS. NEVER CLEAN THE GLASS
WHEN ITIS HOT.
WARNING: OBSERVE CAUTION NEAR
THE GLASS PANEL. THE APPLIANCE UTI-
LIZES TEMPERED GLASS WHICH MAY
SHATTER UNEXPECTEDLY OR IF STRUCK
WITH AN OBJECT.
8. CAUTION: DO NOT OPERATE THIS APPLI-
ANCE WITH A BROKEN GLASS PANEL. Where
broken glass exists, the complete glass door
frame must be replaced. See the Replacement
Parts Lists on page 24 and 26 for correct parts.
Panel removal and reassembly instructions are
described on pages 6 and 11 respectively.
Maintenance
The appliance and venting system should be
inspected before use and at least annually by a
qualified service technician.
IMPORTANT: TURN OFF GAS AND ANY ELEC-
TRICAL POWER BEFORE SERVICING THE AP-
PLIANCE.
The main burner compartment should be in-
spected annually for proper operation. Remove
glass door frame and perform general cleaning
to remove any surface build-up on pilot and
burner assembly. Wipe the pilot nozzle, igniter
rod and hoed (Figures 23 and 25). Avoid
disturbing the loose ember coals on the base of
the bumer.
Refer to Step 12 for the glass door frame
installation. When returning to service, verify
proper flame characteristics as described in
Step 13, refer to Figure 27.
Gasket Inspection
it is important that the door frarne gasket be
inspected at the beginning of the heating sea-
son by a qualified technician. Examine ithe
sealing gasket for signs of deterioration or
cracks. Also make sure the gasket has a posi-
tive seal, preventing combustion gases from
escaping into the room. Replace the door frarne
gasket if necessary with material identified in
the Replacement Parts Lists on page 24 and 26.
With proper care and maintenance, your appli-
ance will provide many years of enjoyment. If
you should experience any problem, first refer
to the troubleshooting guide in this manual. If
problem persists, contact your loca! service
center.
WARRANTY
Your gas. appliance is covered by a limited
lifetime warranty. You will find a copy of the
warranty at the end of this manual. Please read
the warranty to be familiar with its coverage.
Retain this manual. File it with your other docu-
ments for future reference.
REPLACEMENT PARTS
A complete parts list is found at the end of this
manual. Use only parts manufactured and/or
approved -by the manufacturer.
WARNING: THE GLASS DOOR OF THIS
APPLIANCE 1S MANUFACTURED WITH
TEMPERED GLASS (31 9%" X 16 54" X ¥2"
THICK) (SEE *NOTE ). DO NOT ATTEMPT
TO SUBSTITUTE THE GLASS MATERIALS
USED ON THIS DOOR. DO NOT ATTEMPT
TO REPLACE THE GLASS DOOR OR
GLASS WITH ANYTHING OTHER THAN
MATERIALS SUPPLIED BY THE MANU-
FACTURER. THE GLASS DOOR MUST BE
REPLACED AS A COMPLETE UNIT AS
SUPPLIED BY THE MANUFACTURER.
FAILURE TQ COMPLY WITH THESE RE-
QUIREMENTS WILL VOID THE PRODUCT
WARRANTY AND LIMIT MANUFACTURER
LIABILITY.
Normally, all parts should be ordered through
your distributor or dealer. Parts will be shipped
at prevailing prices at time of order.
When ordering repair parts, always give the
following information:
1. The model number of the appliance.
2. The serial number of the appliance.
3. The part number.
4, The description of the part.
5. The quantity required.
6. The installation date of the appliance.
Note: 5mm thick ceramic glass Is an available
option from the factory. Gonsult your sales
receipt.
