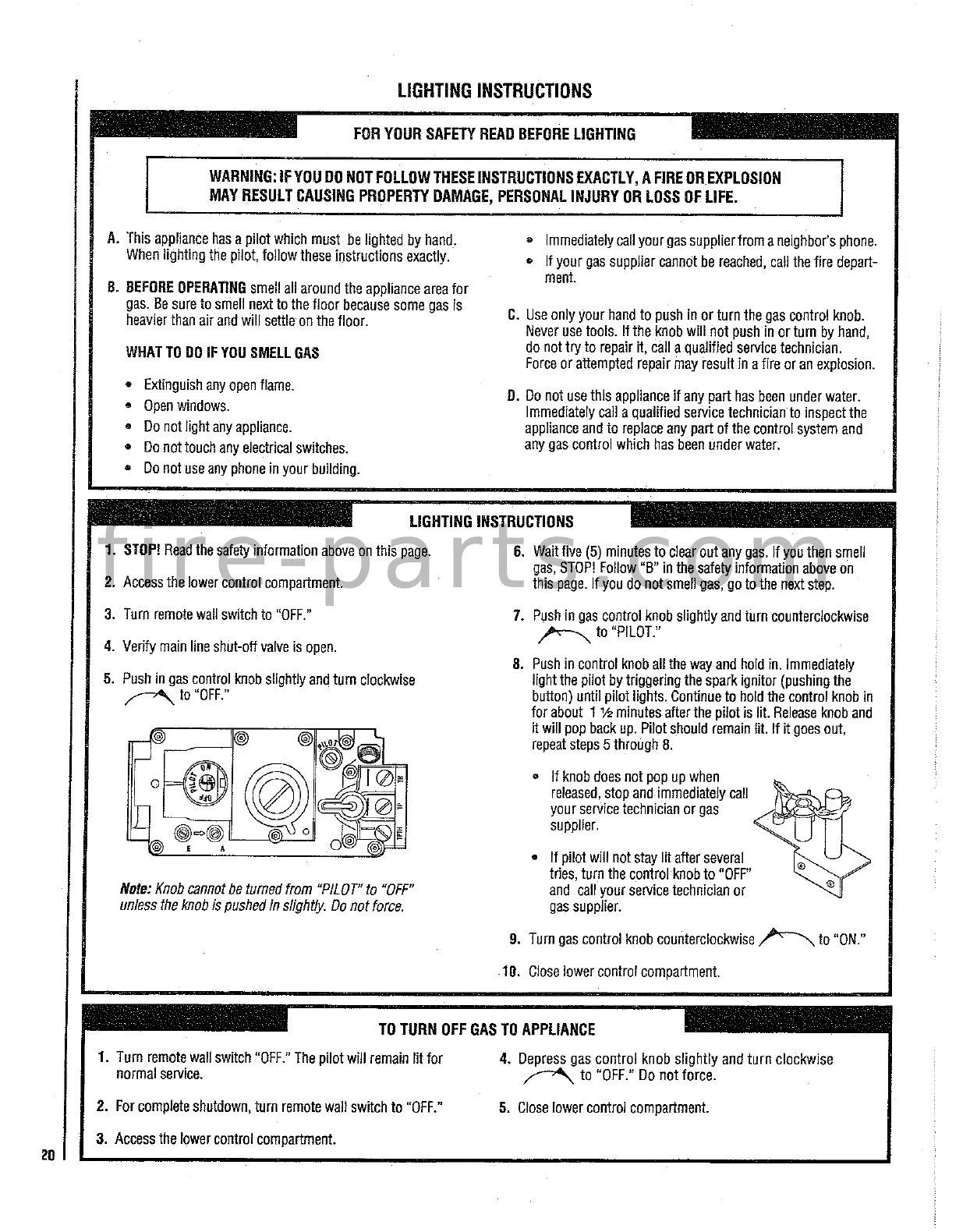

LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE OPERATING smeil all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will setile on the floor.
WHAT TO DO IF YOU SMELL GAS
® Extinguish any open flame.
® Open windows.
e Do not light any appliance.
@ Do-nottouch any electrical switches.
* Donotuse any phone in your building.
@ |mmediately call your gas supplier from a neighbor's phone.
© If your gas supplier cannot be reached, call the fire depart-
ment.
C. Use only your hand to push in or turn the gas contro! knob.
Never use tools. If the knob will not push in or turn by hand,
do not try to repair it, call a qualified service technician.
Force or attempted repair may result in a fire or an explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control. system and
any gas control which has been under water.
1. STOP! Read the safety information above on this page.
2. Access the lower control compartment.
3. Turn remote wall switch to “OFF.”
4. Verify main line shut-off valve is open.
5. Push in gas control knob slightly and turn clockwise
77%, to “OFF.”
Note: Knob cannot be turned from “PILOT” to “OFF”
unless the knob is pushed in slightly. De not force.
LIGHTING INSTRUCTIONS
6. Wait five (5) minutes to clear out any gas. If you then smell
gas, STOP! Follow “B” in the safety information above on
this page. If you do not smell gas, go to the next step.
7. Push in gas control knob slightly and turn counterclockwise
Poo to “PILOT.”
8. Push in control knob ail the way and hold in. Immediately
light the pilot by triggering the spark ignitor (pushing the
button) until pilot lights. Continue to hold the control knob in
for about 1 % minutes after the pilot is lit. Release knob and
it will pop back up. Pilot should remain fit. If it goes out,
Tepeat steps 5 through 8.
® {if knob does not pop up when
released, stop and. immediately call
your service technician or gas
supplier.
@ If pilot will not stay lit after several
tries, turn the control knob to “OFF”
and call your service technician or
gas supplier.
9. Turn gas control knob counterclockwise Pom to “ON.”
18. Close lower control compartment.
1. Tum remote wall switch “OFF.” The pilot will remain lit for
normal service.
2. For complete shutdown, turn remote wall switch to “OFF.”
3. Access the lower control compartment.
TO TURN OFF GAS T0 APPLIANCE
4, Depress gas contro! knob slightly and turn clockwise
to “OFF.” Do not force.
5. Close lower control compartment.
