Lennox ELITE 10 CB29M Series User Manual

Page 25

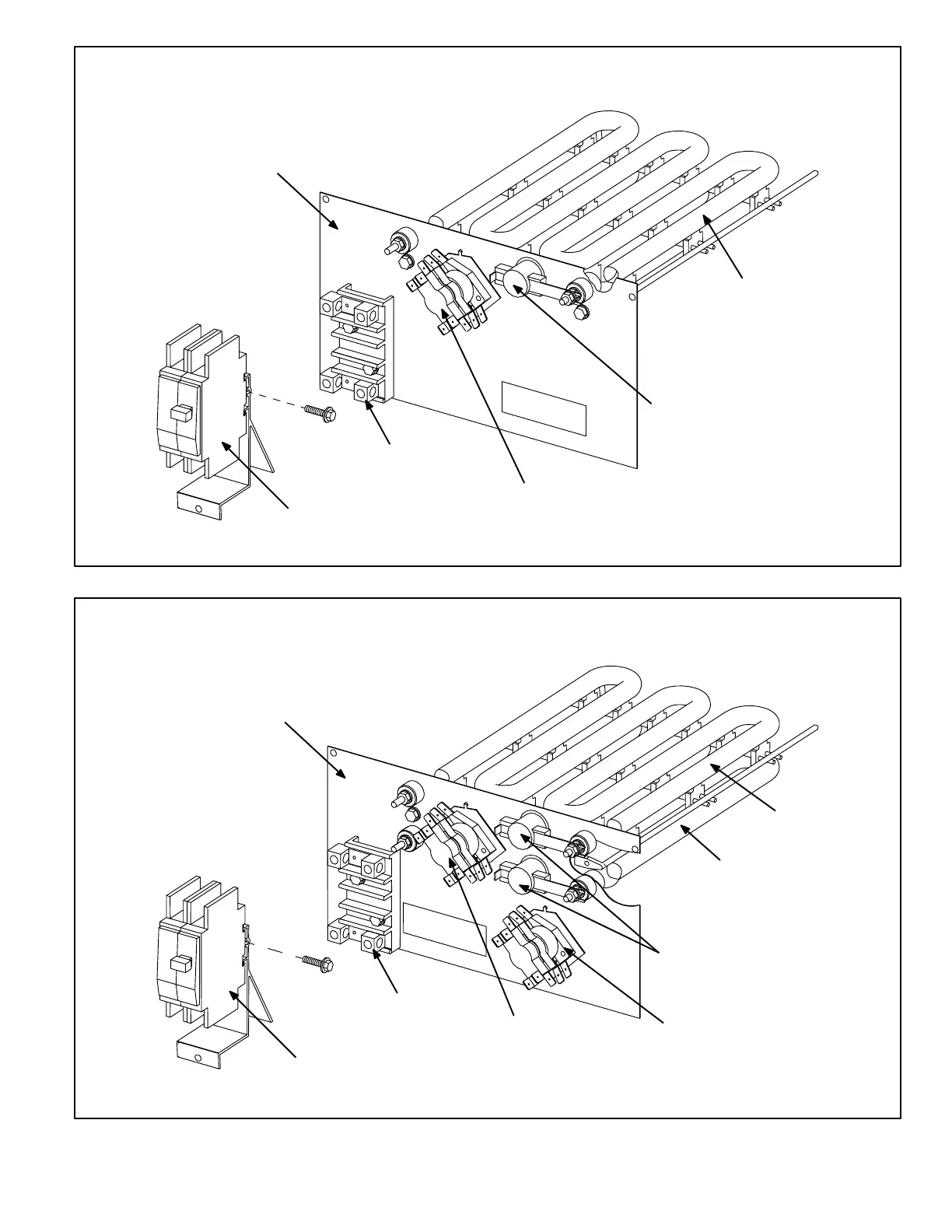

FIGURE 5
ECB29-2.5, -5, -5CB 208/230 SINGLE PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
TERMINAL BLOCK
(TB2)
CIRCUIT BREAKER
(CB1)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE1)
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
SEQUENCER RELAY (K32)
FIGURE 6
ECB29-8, -8CB, -10, -10CB 208/230 SINGLE PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
TERMINAL BLOCK
(TB2)
CIRCUIT BREAKER
(CB1)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE2)
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
SEQUENCER RELAY (K32)
ELECTRIC HEAT
ELEMENT (HE1)
ELECTRIC HEAT
SEQUENCER RELAY (K33)
