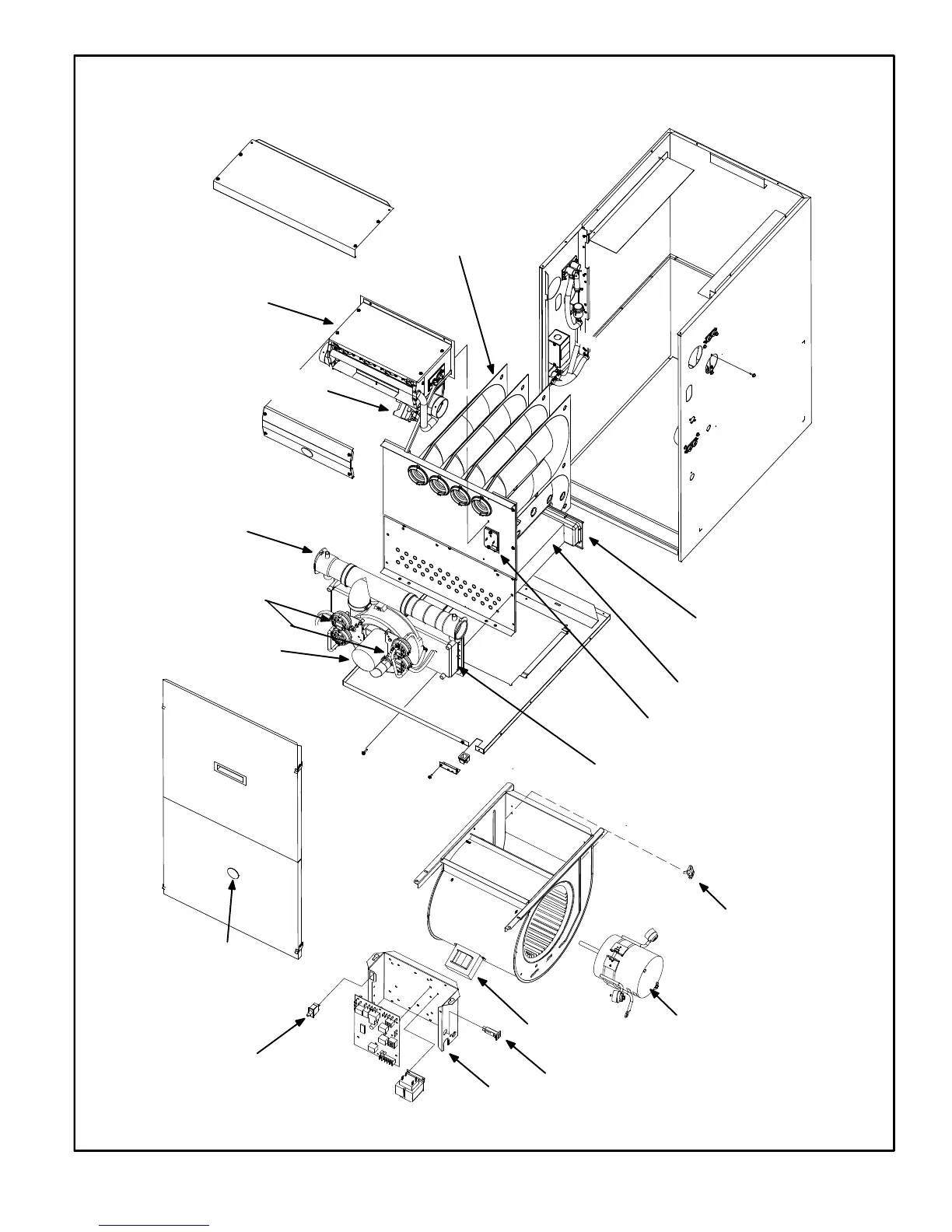

G61MPV PARTS ARRANGEMENT
FIGURE 1
TOP CAP
CABINET
BURNER BOX
ASSEMBLY
SIGHT
GLASS
DuralokPlus
TM
HEAT EXCHANGER
ASSEMBLY
CONDENSER COIL
DOOR
INTERLOCK
SWITCH
COLD HEADER
(COLLECTOR)
BOX
COMBUSTION AIR
INDUCER
BLOWER
ACCESS
PANEL
BURNER
ACCESS
PANEL
FLUE
COLLAR
COMBUSTION
AIR PRESSURE PROVE
SWITCHES
(36B−045 has 2 single switches)
PRIMARY LIMIT
WARM HEADER
(COLLECTOR)
BOX
GAS VALVE
AND MANIFOLD
SECONDARY
LIMITS (2)
Power Choke
(5 Ton Only)
Blower Motor
CONTROL BOX
CIRCUIT BREAKER
