Lennox LGH210H Installation Instructions

Page 58
LGH/LCH156, 180, 210, 240, 300S
Configuration ID 1
1 2 3 4 5 6 7 8
Humiditrol [1]
Not Installed = N
Humiditrol Installed = H
Unconfigured = U
Economizer [2]
Not Installed = N
Motorized Outdoor Air
Damper Only = M
Economizer - Temperature = T
Economizer Global = G
Economizer - Single
Enthalpy = S
Economizer - Dual Enthalpy = D
Unconfigured = U
Power Exhaust [3]
Not Installed = N
Single-Stage = S
Dual-Stage = D
Unconfigured = U
Power Exhaust Control 4]
Not Installed = N
Damper Position = A
[5] Network Module
N = Not Installed
B = BACnet
L = LonTalk (Lennox)
[6] Blower Variable
Frequency Drive Bypass
N = Not Installed
A = Automatic Bypass
M = Manual Bypass
U = Unconfigured
[7] Advance Air Flow
Control
N = Not Installed
S = Installed with Standard
Economizer
L = Installed with High Performance
Economizer
U = Unconfigured
[8] Outdoor Air CFM
Control
N = Not applicable (for future
use)

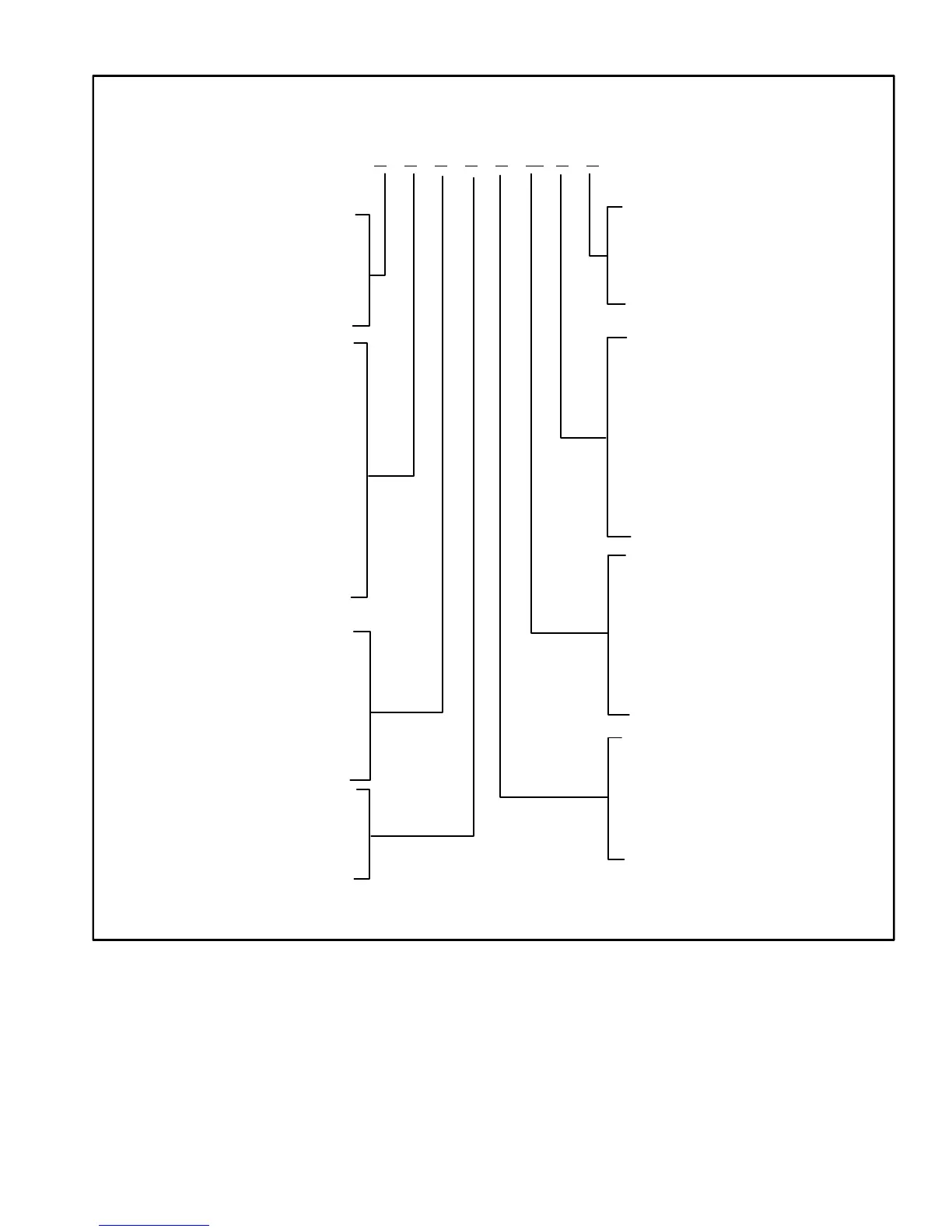

FIGURE 38
