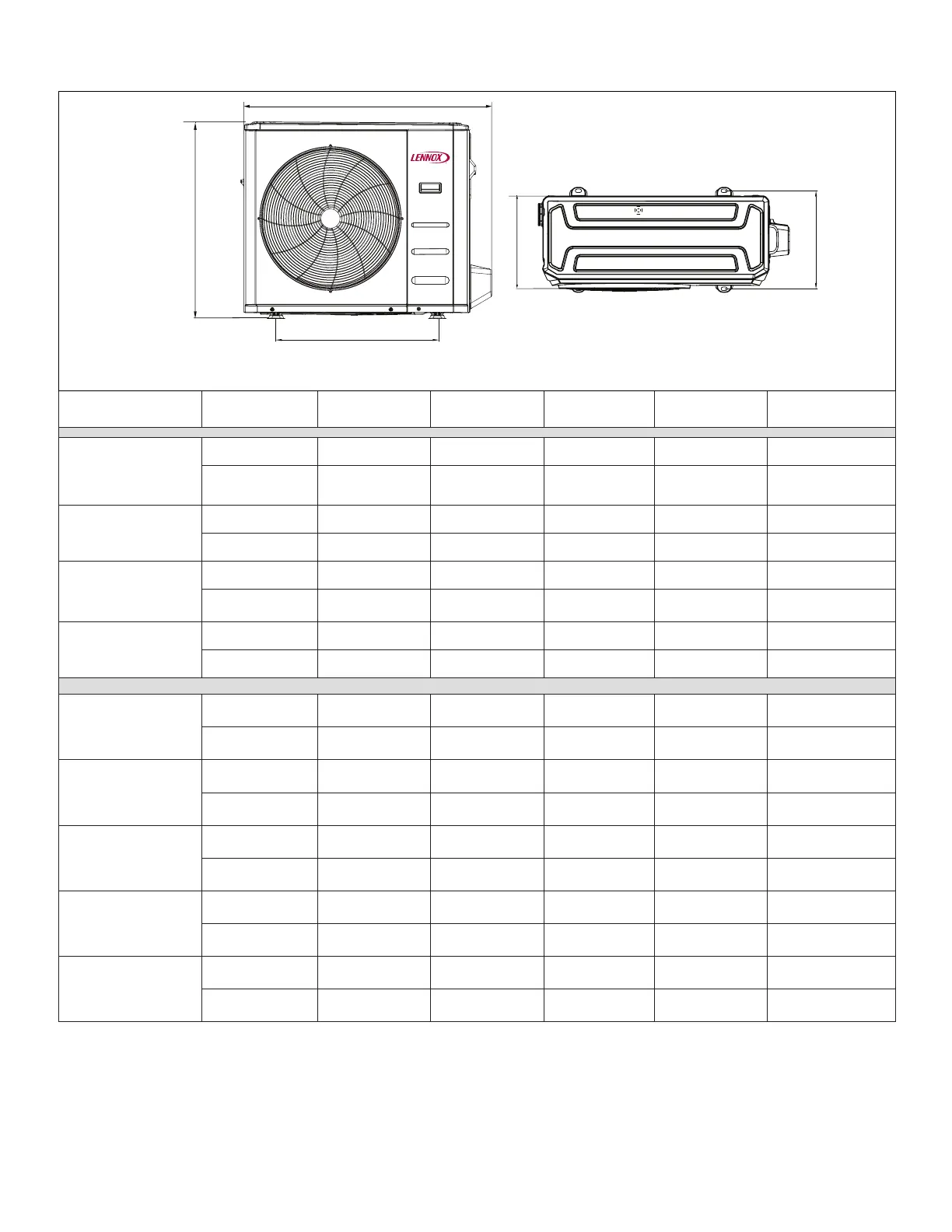

9.11. Single-Zone Outdoor Unit Dimensions
E
D
B
TYPICAL APPEARANCE OF UNITS
A
C
Model
Unit of
Measurement
A B C D E
MPC006S4S-*P
MPC009S4S-*P
MPC012S4S-*L
MPC012S4S-*P
inches 32-7/8 17-3/4 21-7/8 11-7/8 12-3/8
mm 835 451 556 302 314
MPC018S4S-*P
inches 37-5/8 26-1/8 26-1/2 12-3/4 15
mm 955 664 673 324 381
MPC024S4S-*P
MPC030S4S-*P
MPC036S4S-*P
3PC036S4S-*P
inches 37-1/4 26-1/2 37-7/8 15-7/8 18
mm 946 673 810 403 457
MPC048S4S-*P
inches 41-1/8 27-7/8 44-5/8 16-3/8 15-7/8
mm 1045 708 1134 416 448
MLB009S4S-*P
MLB012S4S-*P
inches 34-3/8 20-1/8 21-7/8 12-1/8 12-1/2
mm 873 511 566 308 318
MLB018S4S-*P
MLB030S4S-*P
inches 40-3/4 26-1/2 31-7/8 16-1/8 15-7/8
mm 1035 673 810 410 402
MLB024S4S-*P
inches 40-1/2 26-1/2 31-7/8 16-1/8 15-7/8
mm 1029 673 810 410 410
MLB036S4S-P
inches 41-1/8 37-1/2 52-1/2 16-3/8 15-7/8
mm 1045 953 1334 416 403
MLB048S4S-P
inches 41-1/8 37-1/2 52-1/2 16-3/8 15-7/8
mm 1045 953 1334 416 403
Figure 27. Single-Zone Outdoor Unit Dimensions - Inches (mm)
