Lennox ML193UH090XE48C Installation Instructions

Page 9

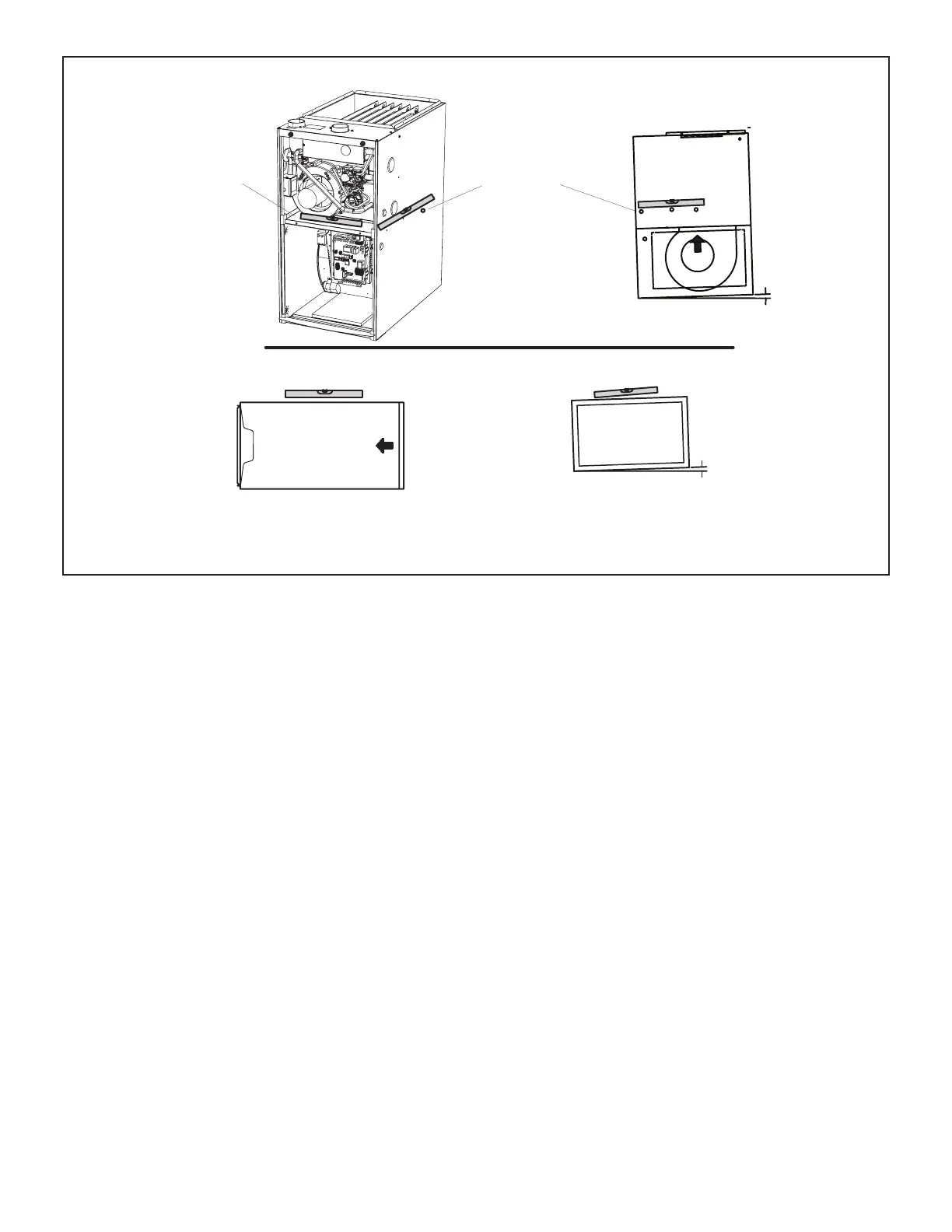

SETTING EQUIPMENT
UPFLOW APPLICATION
HORIZONTAL APPLICAT ION
SIDE VIEW
FRONT VIEW
END VIEW
UNIT
FRONT
AIR FLOW
UNIT
FRONT
1/2”
max.
1/2”
max.
AIR FLOW
Unit must be level side-to-side. Unit may be positioned from level to 1/2” toward the front to aid in draining.
Place level on the front blower
deck to check side to side
Place level on blower
deck screws to check
forward tilt
FIGURE 11
