6.4. Multi-Zone Outdoor Unit Dimensions
E
D
B
TYPICAL APPEARANCE OF UNITS
A
C
Model
Unit of
Measurement
A B C D E
MPC024S4M-*P
MPC030S4M-*P
MPC036S4M-*P
inches 40-3/4 26-1/2 31-7/8 16-1/8 15-7/8
mm 1035 673 810 410 403
MPC048S4M-*P
inches 41-3/4 25 55-1/2 16-3/8 17-5/8
mm 1060 635 1333 416 448
MLB030S4M-*P
inches 40-5/8 26-1/2 31-7/8 15-1/8 15-7/8
mm 1035 673 810 410 403
MLB036S4M-*P
MLB048S4M-*P
inches 41-3/4 25 55-1/2 16-3/8 17-5/8
mm 1060 635 1333 416 448

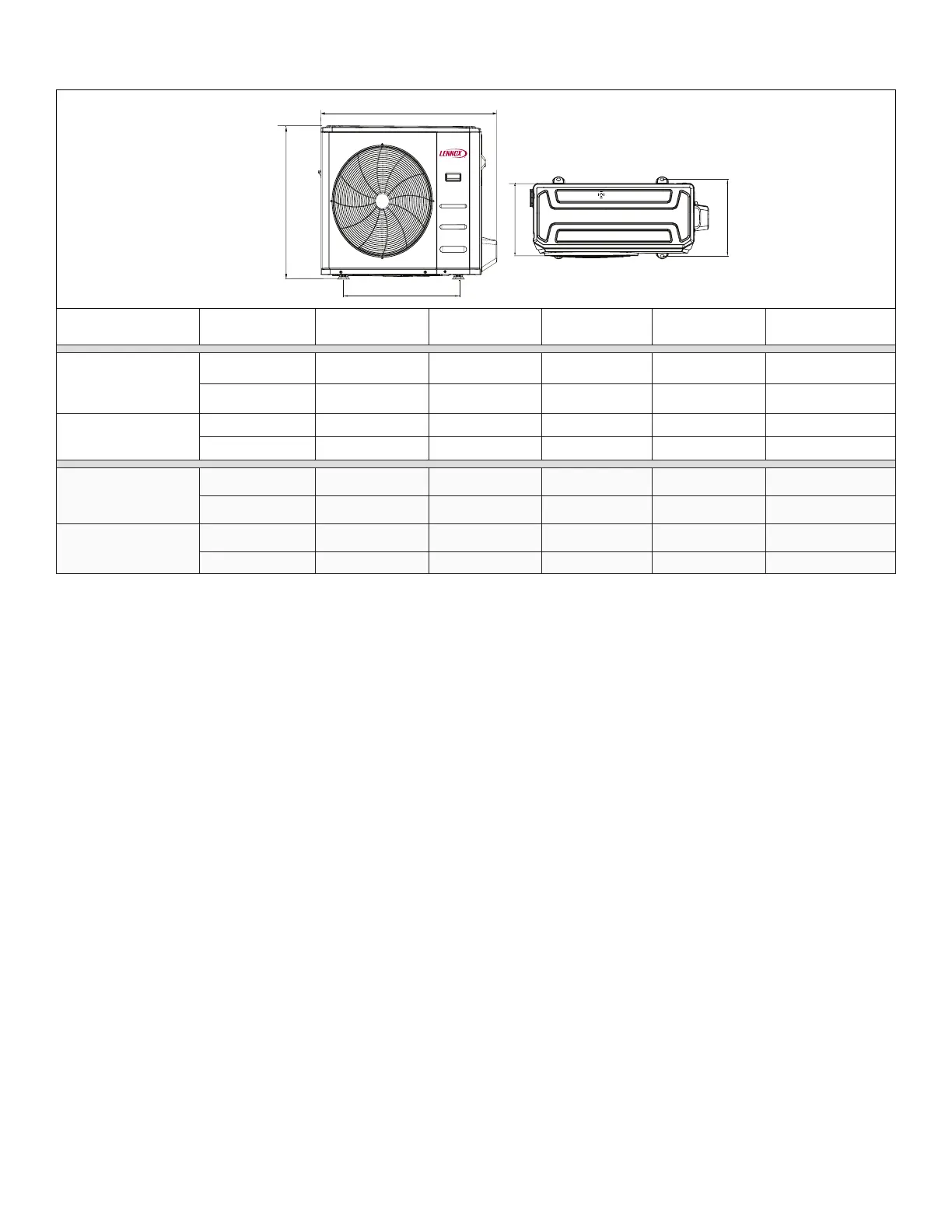

Figure 18. Multi-Zone Outdoor Unit Dimensions - Inches (mm)
