Lennox MPB012S4S Service Manual

156

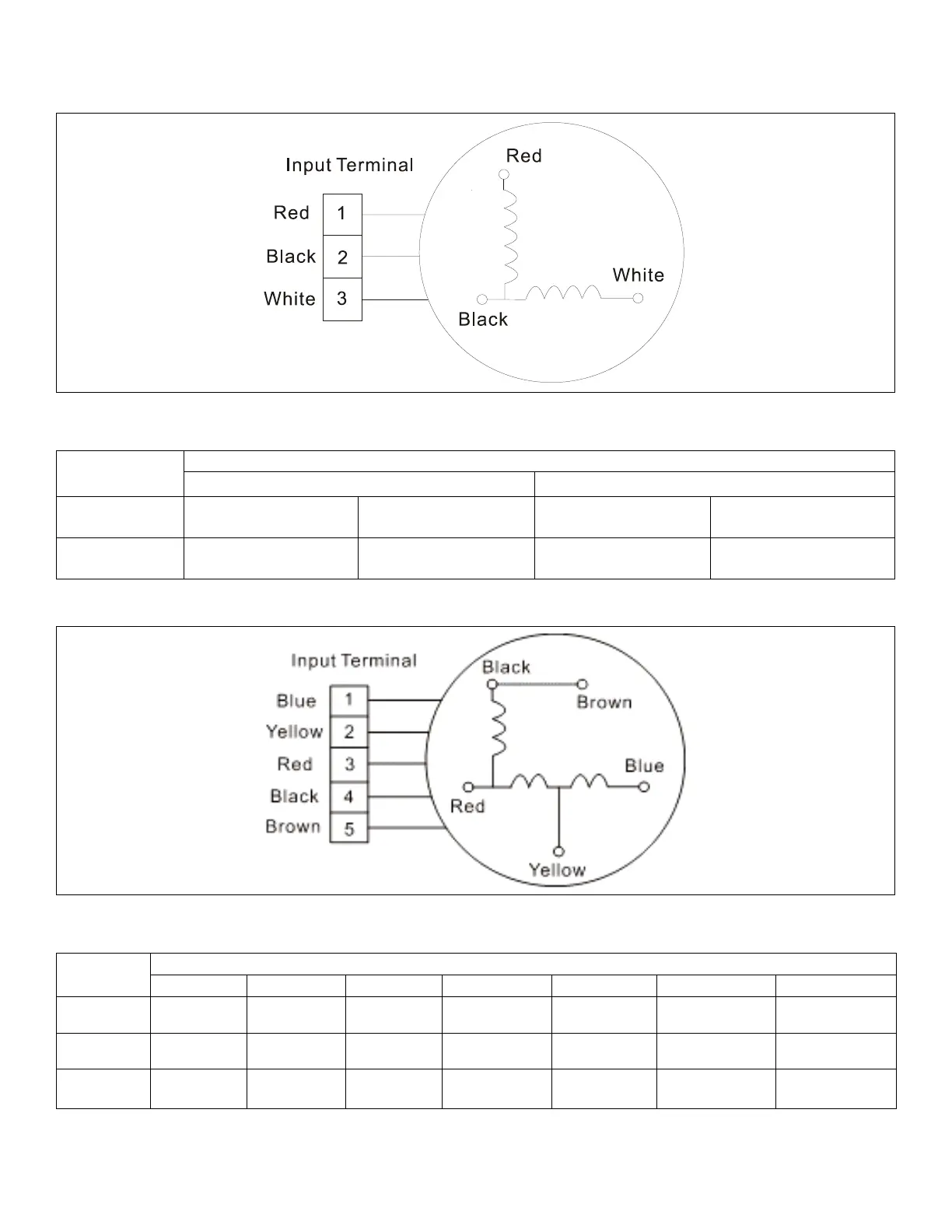

29.3. AC Fan Motor
Measuretheresistancevalueofeachwindingbyusingthetester
Figure 76. Terminals
Table 17. Resistance Value
Position
Resistance Value
RPG20B RPG28H
Black-Red
381Ω±8%(20°C)
(Brand:Weiling)
342Ω±8%(20°C)
(Brand:Dayang)
183.6Ω±8%(20°C)
(Brand:Weiling)
180Ω±8%(20°C)
(Brand:Wolong)
White-Black
267Ω±8%(20°C)
(Brand:Weiling)
253Ω±8%(20°C)
(Brand:Dayang)
206Ω±8%(20°C)
(Brand:Weiling)
190Ω±8%(20°C)
(Brand:Wolong)
Measuretheresistancevalueofeachwindingbyusingthetester
Figure 77. Terminals
Table 18. Resistance Value
Position
Resistance Value
YDK70-6FB YDK180-8GB YSK27-4G YSK68-4B YDK45-6B YSK25-6L YDK53-6FB(B)
Black-Red
56Ω±8%
(20°C)
24.5Ω±8%
(20°C)
317Ω±8%
(20°C)
145Ω±8%(20°C)
345Ω±8%
(20°C)
627Ω±8%(20°C) 88.5Ω±8%(20°C)
Red-Yellow
76Ω±8%
(20°C)
19Ω±8%
(20°C)
252Ω±8%
(20°C)
88Ω±8%(20°C)
150Ω±8%
(20°C)
374.3Ω±8%(20°C) 138Ω±8%(20°C)
Yellow-Blue
76Ω±8%
(20°C)
19Ω±8%
(20°C)
252Ω±8%
(20°C)
88Ω±8%(20°C)
150Ω±8%
(20°C)
374.3Ω±8%(20°C) 138Ω±8%(20°C)
