158

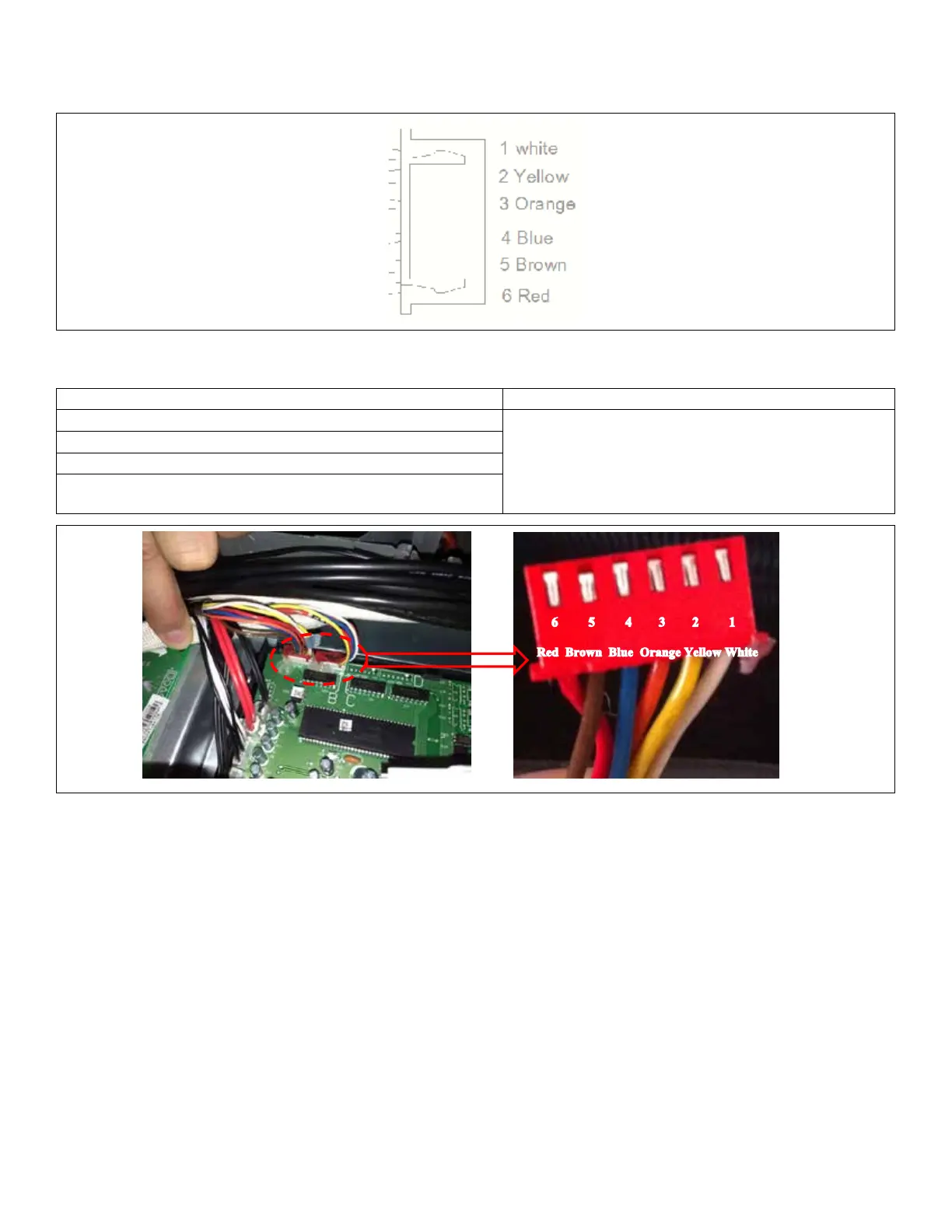

29.5. EXV Check
Disconnecttheconnectors.
Figure 80. Connector Pin-Out
Table 19. Resistance
Color of lead wire Normal Value
Red-Blue
About50Ω
Red-Yellow
Brown-Orange
Brown-White
Figure 81. Connector Pin-Out
