Page 83
Corp. 1244-L9
5. COMPONENT: ROTARY COMPRESSOR WITH
ACCUMULATOR (CONTINUED)
TROUBLESHOOTING (CONTINUED):
Check winding resistance of each terminal. If resistance
value is 0 ohms or infinite, replace compressor.
RESISTANCE BETWEEN EACH SET
OF WINDINGS SHOULD BE EQUAL.
6. COMPONENT: COMPRESSOR TEMPERATURE
OVERLOAD PROTECTION
DESCRIPTION:
If temperature detected by the overload sensor exceeds
239ºF (115ºC), the compressor will stop and the outdoor fan
will stop after a delay of 30 seconds. Once the compressor
temperature drops below 204ºF (95ºC), the compressor
overload protection feature will reset and the system will
resume normal operations.
TROUBLESHOOTING:
* Check wiring connections at compressor terminals and
at the outdoor control.
* Check control SAT to determine if it is closed or open.
If resistance is infinite ohms, then the overload control
is closed. If the resistance is 0 ohms, then the overload
control is CLOSED. If the compressor is not hot to the
touch, then the overload control assembly should be
replaced.

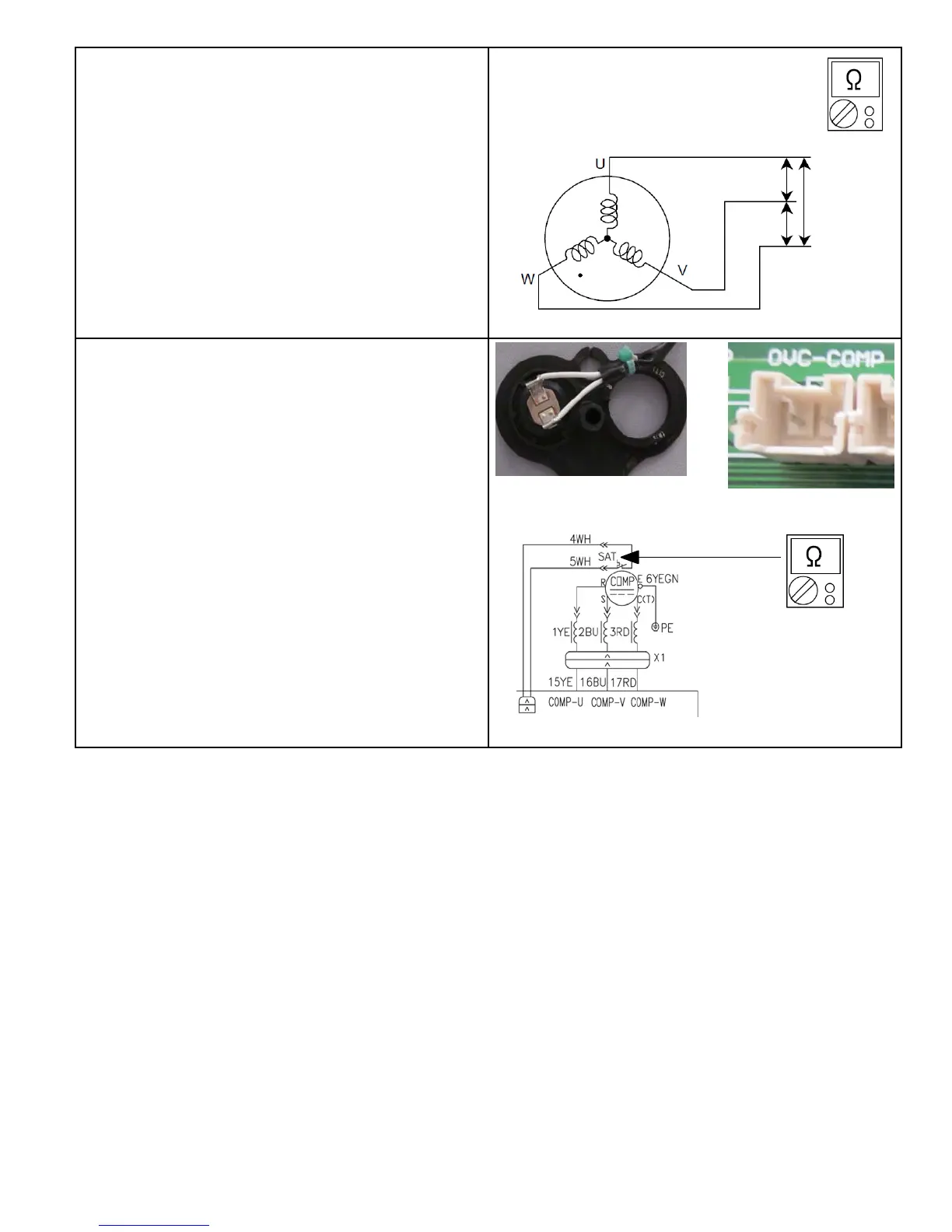

COMPRESSOR OVERLOAD AS
SEMBLY (SAT)
OUTDOOR CONTROL
CONNECTION
OUTDOOR CONTROL
