TP − 3 to 5 Ton R−22 Heat Pump Outdoor Units / Page 8

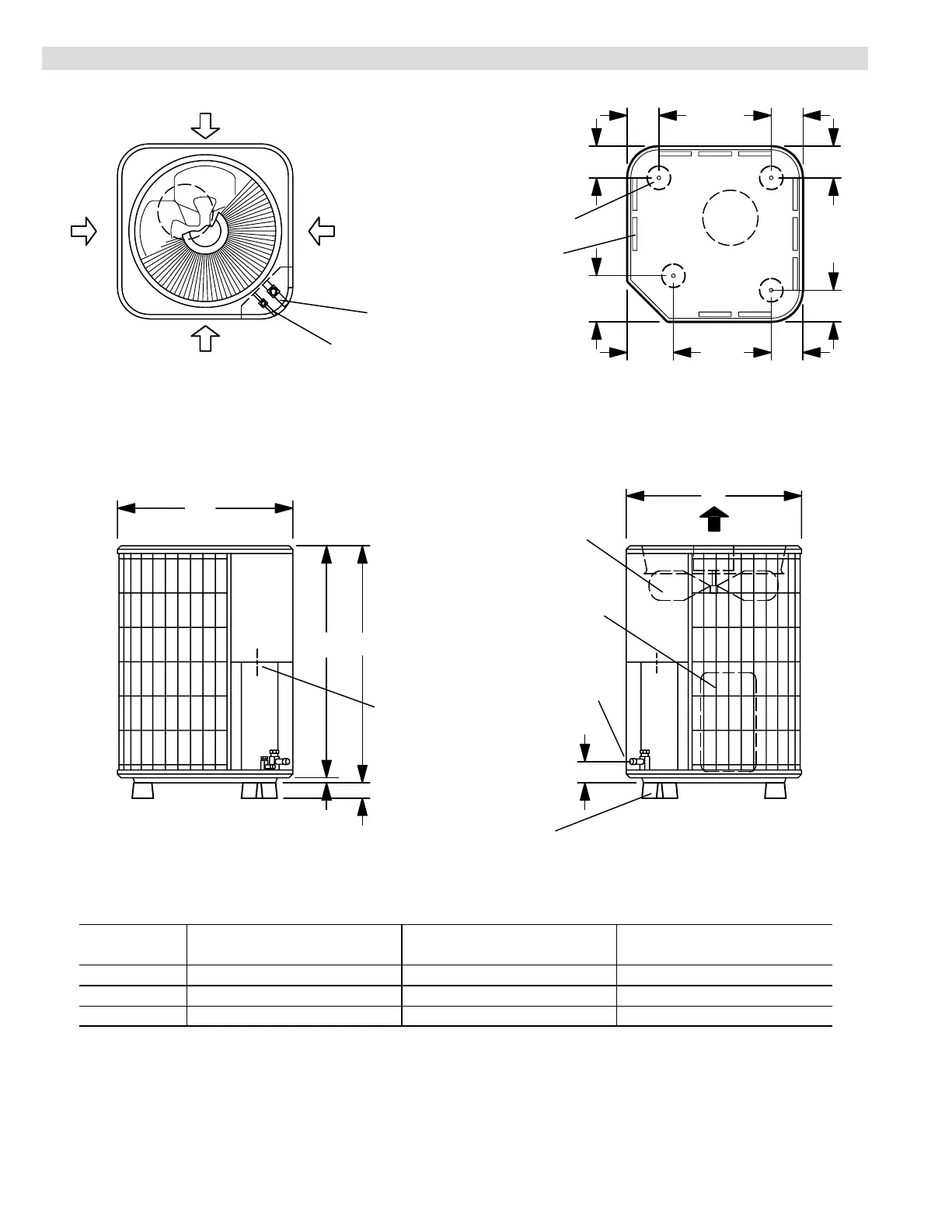

DIMENSIONS − INCHES (MM)
6-3/8
(162)
4-3/8
(111)
SIDE VIEW
VAPOR &
LIQUID LINE
CONNECTIONS
INLET
AIR
INLET
AIR
DISCHARGE AIR
SIDE VIEW
TOP VIEW
OUTDOOR
COIL FAN
COMPRESSOR
INLET AIR
INLET AIR
SUCTION LINE
CONNECTION
2-3/4 (70)
A
ELECTRICAL
INLETS
LIQUID LINE
CONNECTION
TOP VIEW BASE SECTION
4-3/8
(111)
COMPRESSOR
COIL DRAIN OUTLETS
(Around perimeter of base)
OPTIONAL UNIT
STAND-OFF KIT (4)
(Field Installed)
BC
A
OPTIONAL UNIT
STAND-OFF KIT (4)
(Field Installed)
2 (51)
3/4
(19)
4-3/8
(111)
4-3/8
(111)
4-3/8
(111)
4-3/8
(111)
6-3/8
(162)
Model No
A B C
M
o
d
e
l
N
o.
in.
mm in. mm in. mm
TPA036S2
24-1/4 641 33-1/4 845 32-1/2 826
TPA048S2 28-1/4 718 37 940 36−1/4 921
TPA060S2 32-1/4 819 37 940 36-1/4 921
