Disassemble the LCD module
The LCD module as a whole is not a FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the keyboard assembly. Refer to
“1070 Keyboard assembly” on page 41 for instructions.
2010 LCD bezel

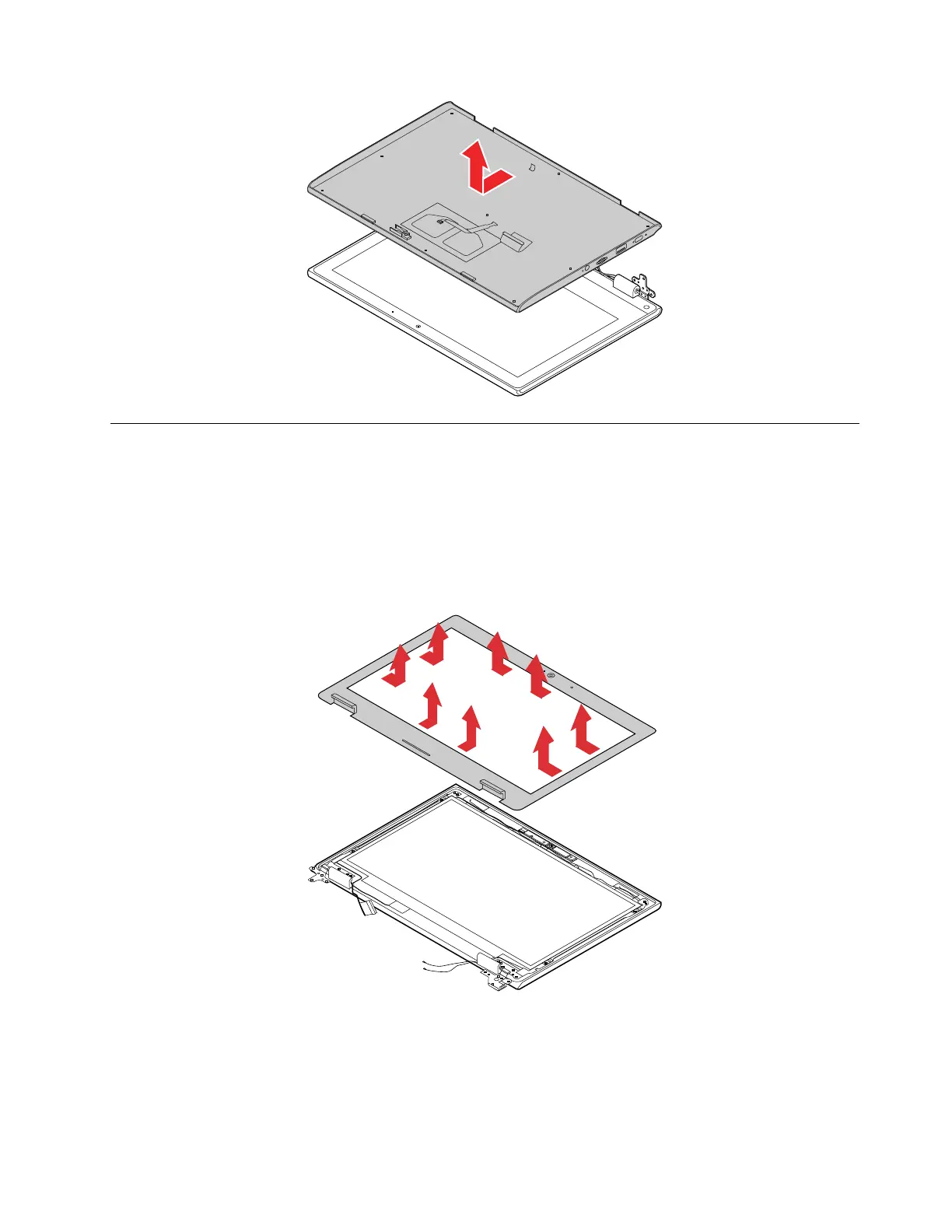

Removal step of the LCD bezel
When installing: Ensure that all the latches are attached firmly.
2020 LCD panel
For access, remove this FRU:
• “2010 LCD bezel” on page 43
Chapter 5. Removing or replacing a FRU 43
