coin-cell battery
Remove the memory module
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable.
Attention: Do not pull the cable. Use your fingernail to disconnect the cable.

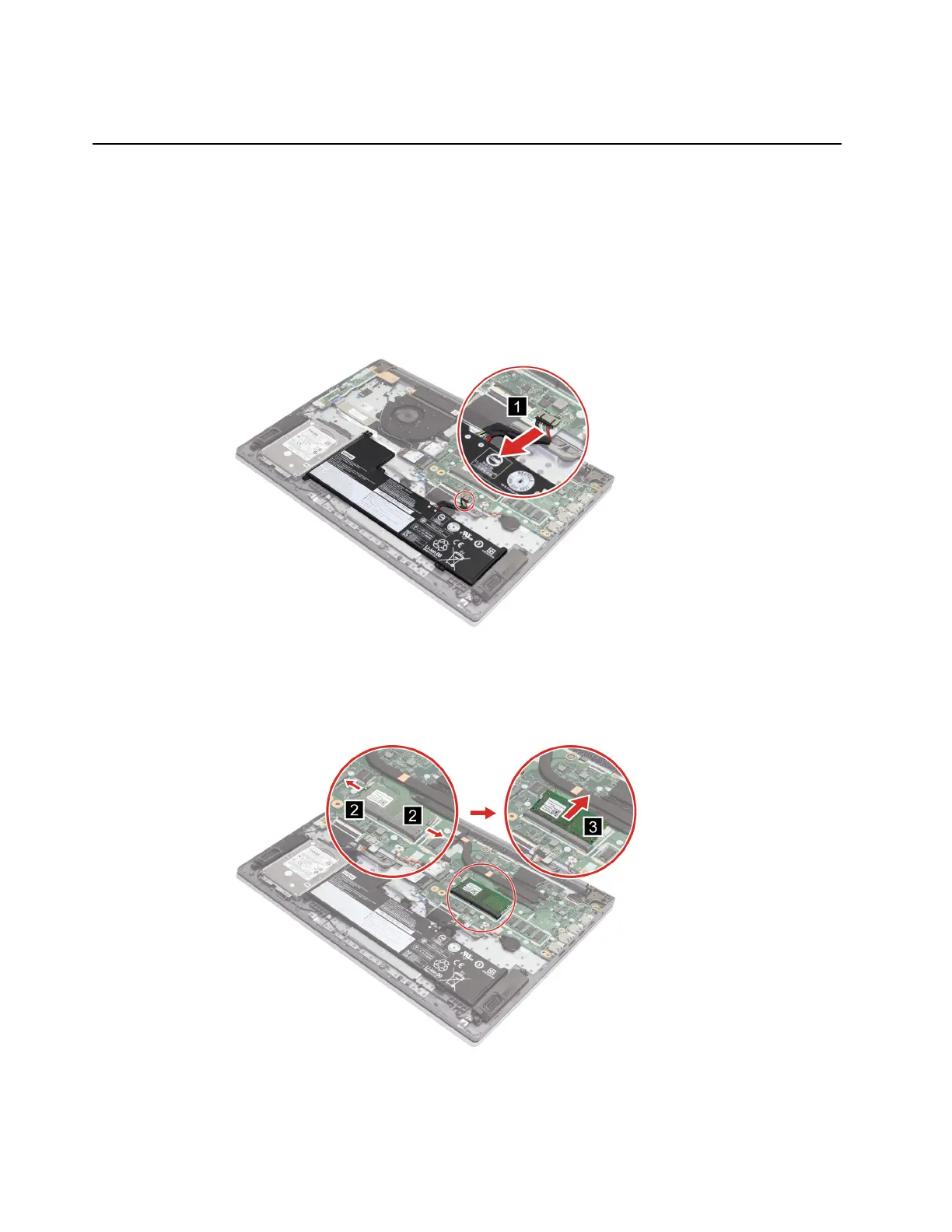

Figure 22. Disconnect the battery pack cable
Step 2. Disengage the latch and slide the memory module out of the slot.
Figure 23. Disengage the latch and slide the memory module out of the slot
40 IdeaPad 3 (14", 05), IdeaPad 3 (15", 05), and IdeaPad 3 (17", 05) Hardware Maintenance Manual
