Lenovo 14ARE05 User Manual

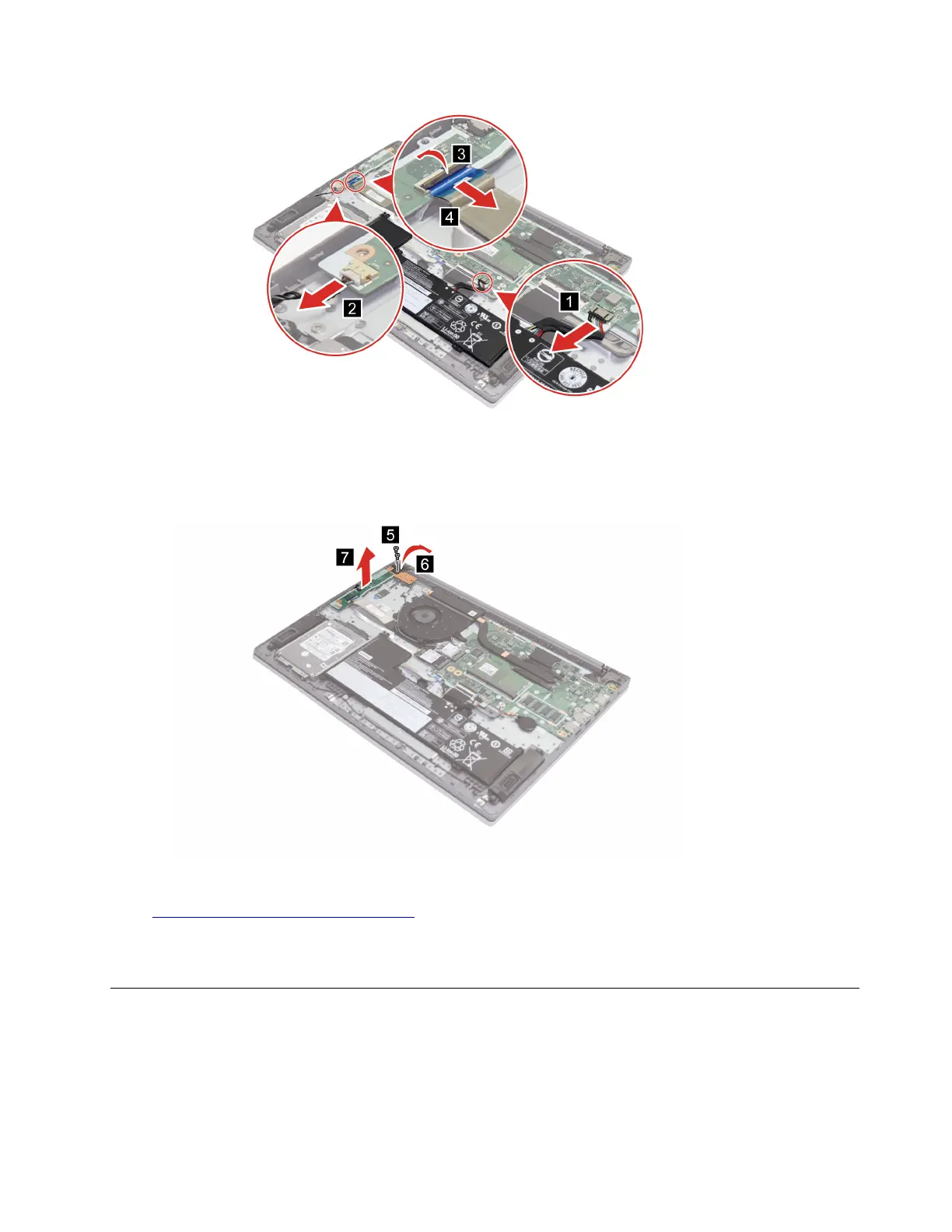

Figure 26. Disconnect cables from the I/O board
Step 2. Remove the two screws, open the hinge, and then remove the I/O board.
Figure 27. Remove the two screws, open the hinge, and then remove the I/O board
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
I/O board
Remove the fingerprint reader
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 28
“Remove the I/O board” on page 42
Chapter 4. Removing a FRU or CRU 43

Lenovo 14ARE05 Specifications

General

Model	Lenovo 14ARE05
Category	Laptop
Processor	AMD Ryzen 5 4500U
RAM	8GB DDR4
Graphics	Integrated AMD Radeon Graphics
Operating System	Windows 10 Home
Weight	1.5 kg
Display	14-inch FHD (1920 x 1080) IPS
Battery	Up to 10 hours
Ports	HDMI, SD card reader
Wireless	Bluetooth 5.0
