Step 3. Disconnect the EDP cable.

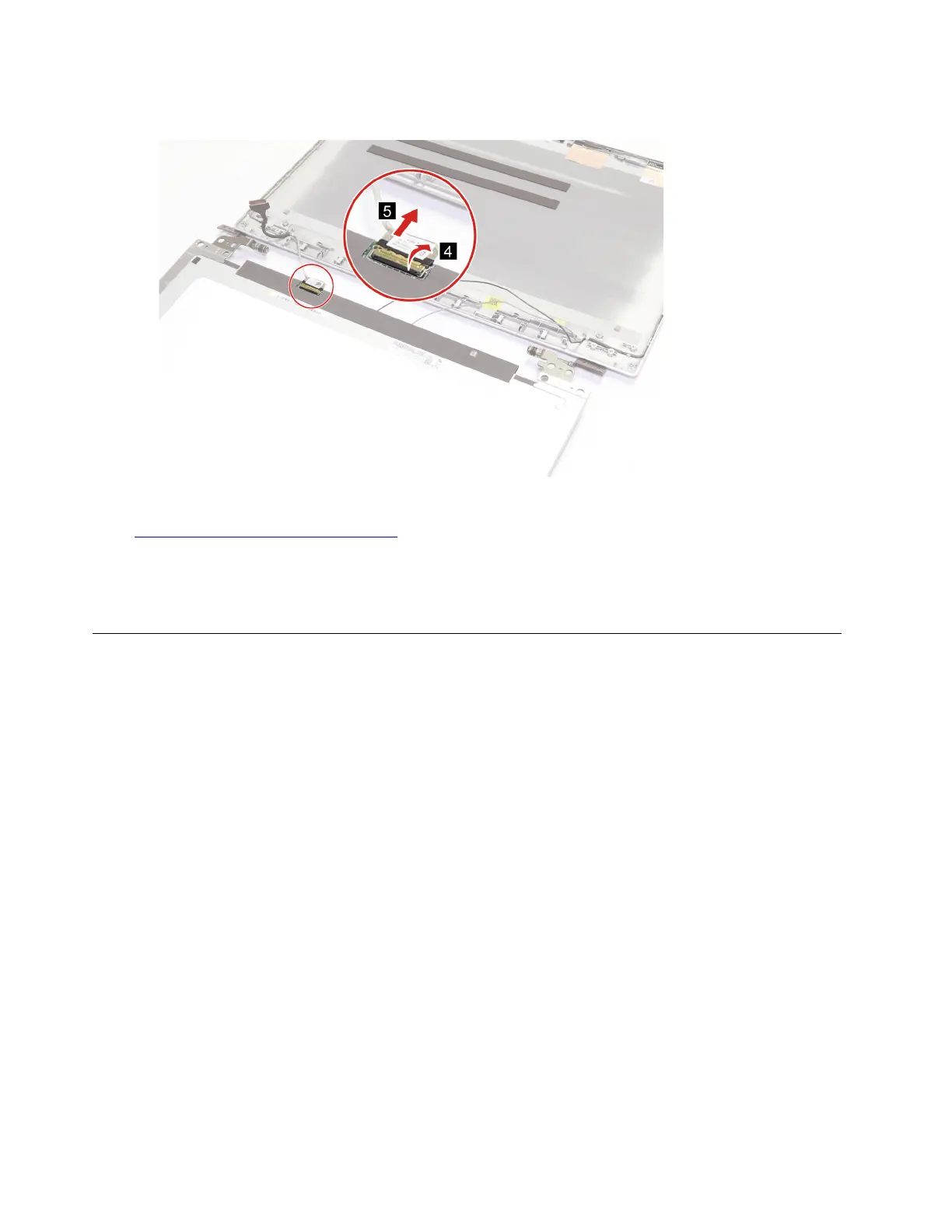

Figure 44. Disconnect the EDP cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
LCD panel
EDP cable
Remove the hinges ( for 14–inch and 15–inch models only)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the LCD bezel” on page 49
“Remove the hinge cover” on page 49
“Remove the LCD panel” on page 50
54
IdeaPad 3 (14", 05), IdeaPad 3 (15", 05), and IdeaPad 3 (17", 05) Hardware Maintenance Manual
