1120 LCD unit

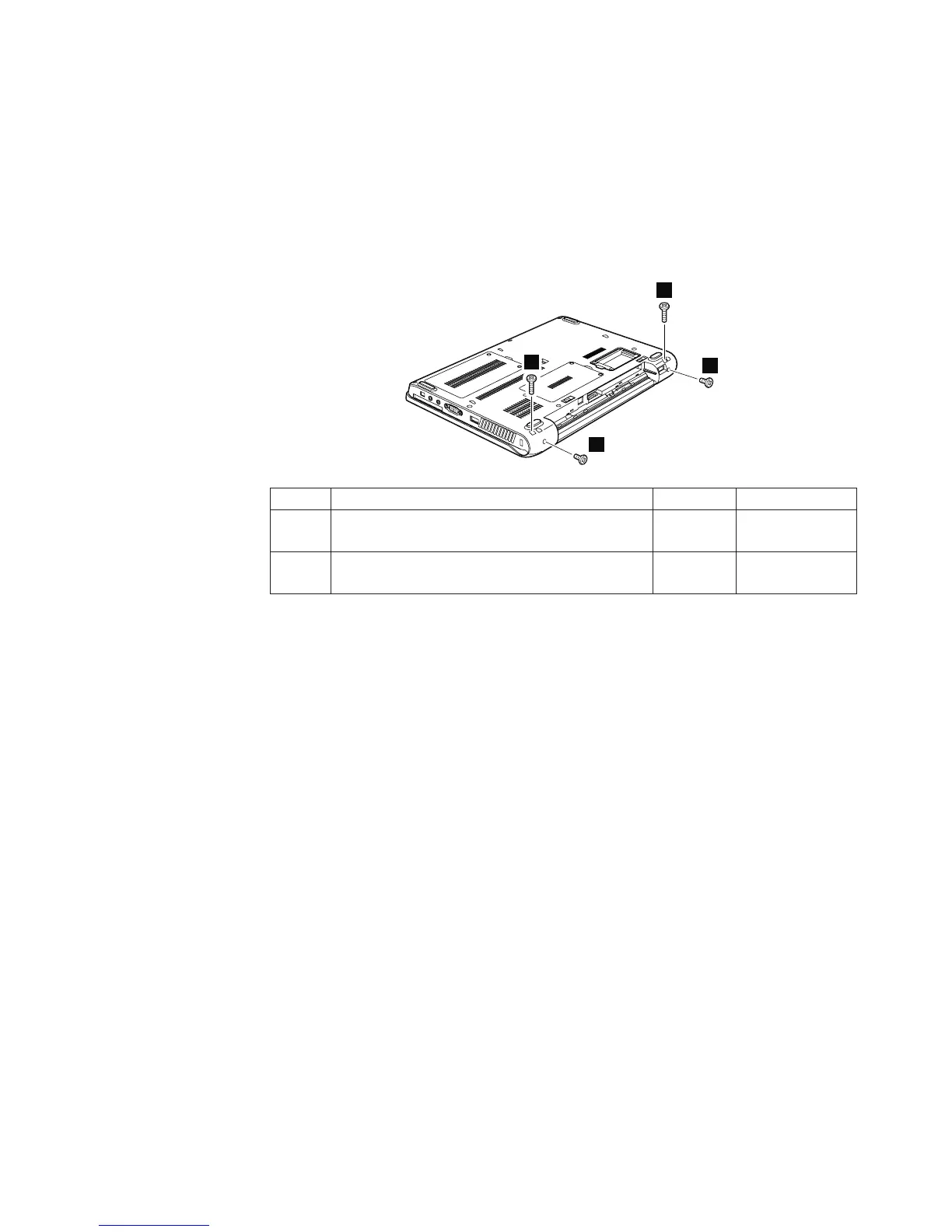

For access, remove these FRUs in order:
v “1010 Battery pack” on page 45
v “1060 PCI Express Mini Card slot cover and PCI Express Mini Card for wireless
LAN” on page 50
v “1080 Middle cover” on page 51
v “1090 Function board” on page 52
v “1100 Keyboard” on page 53
1
1
2
2
Step Screw (quantity) Color Torque
1 M2.5 × 8 mm, flat-head, nylon-coated (2) Silver 0.392 Nm
(4 kgfcm)
2 M2.5 × 5 mm, flat-head, nylon-coated (2) Silver 0.392 Nm
(4 kgfcm)
(continued)
Removing and replacing a FRU
Lenovo 3000 V100 63
To Next Page
