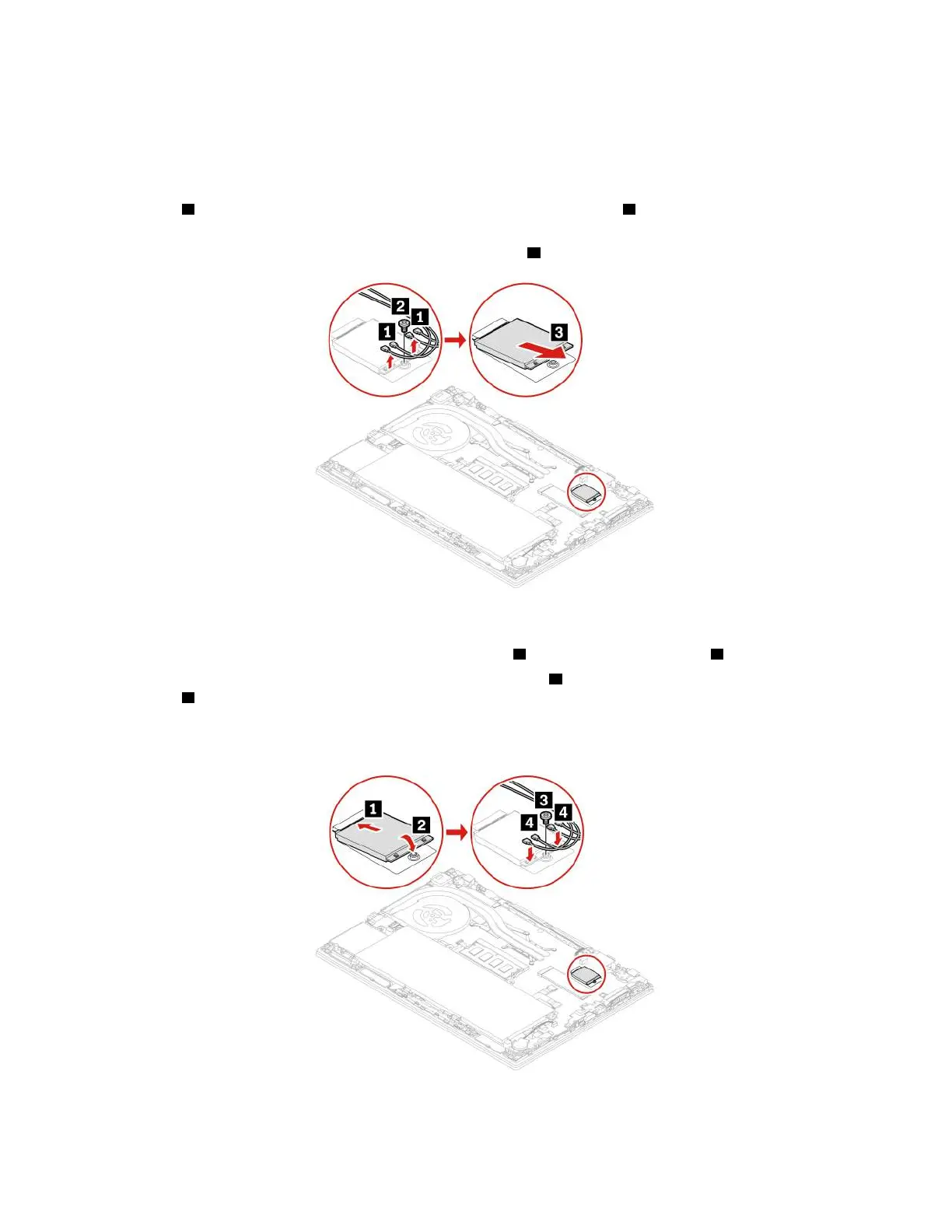

5. Remove the wireless-WAN card by doing the following:
Note: A Mylar film might cover the wireless-WAN card. To access the wireless-WAN card, open the film
first.
a. Hold the cable connector with your fingers and gently disconnect each cable from the wireless-WAN
card
1 . Then, remove the screw that secures the wireless-WAN card 2 . The card is released from
the secured position and pivots upward.
b. Carefully remove the wireless-WAN card out of the slot
3 .
6. Install a new wireless-WAN card by doing the following:
a. Align the contact edge of the new wireless-WAN card with the key in the slot. Then, carefully insert
the card into the slot at an angle of about 20 degrees
1 . Pivot the card downward 2 .
b. Install the screw to secure the wireless-WAN card in place
3 . Connect the antenna cables to the
card
4 . Ensure that you connect the orange cable to the main connector on the card, the blue cable
to the auxiliary connector on the card, the white and grey cable to the M1 connector on the card, and
the black and grey cable to the M2 connector on the card.
7. Reinstall the base cover assembly and the nano-SIM-card tray.
8. Connect the ac power adapter and all disconnected cables to the computer.
68
T14 Gen 1, T15 Gen 1, P14s Gen 1, and P15s Gen 1 User Guide
