Lenovo ThinkPad T490 Hardware Maintenance Manual

1070 Coin-cell battery
For access, remove these FRUs in order:
• “1020 Base cover assembly” on page 71

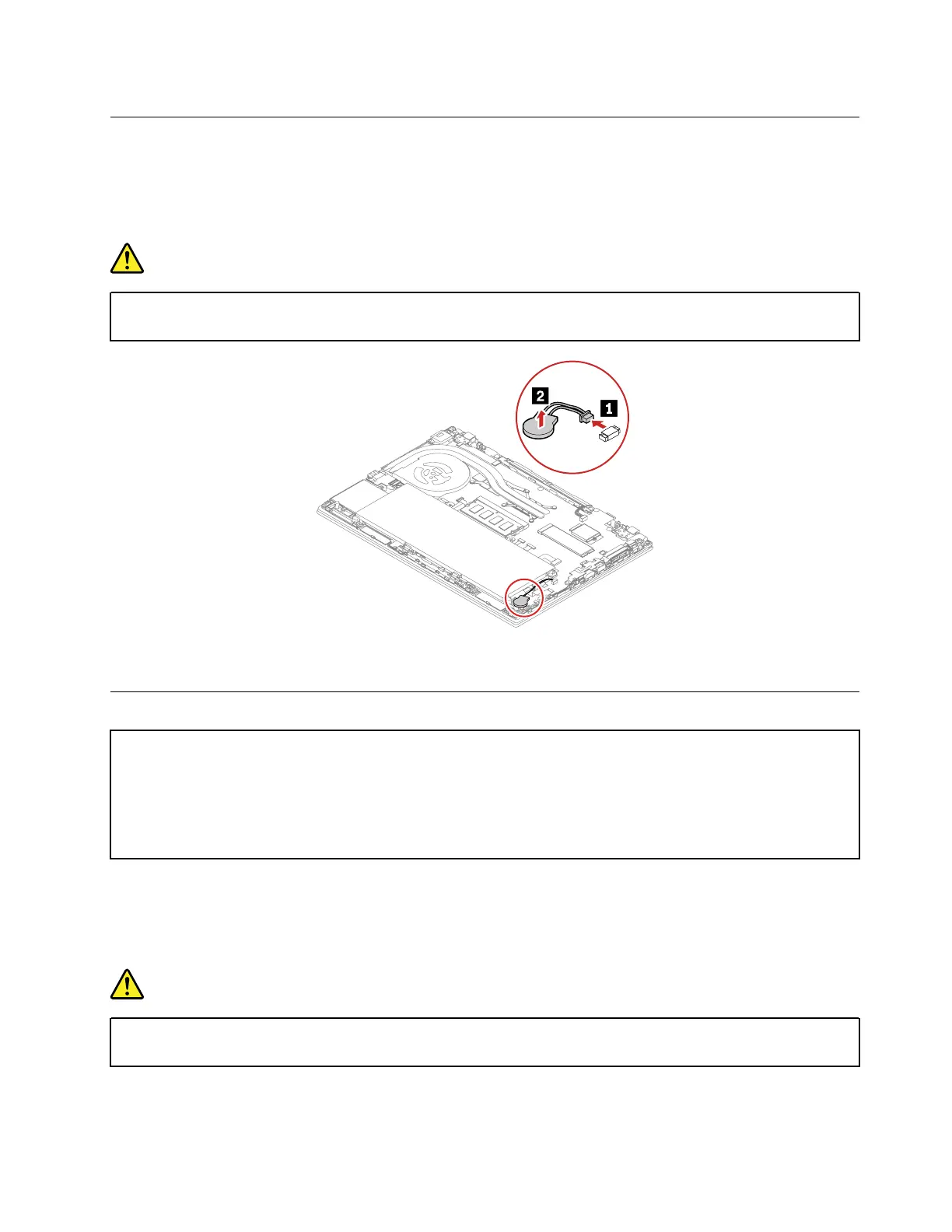

Removal steps of the coin-cell battery
DANGER
Use only the authorized battery specified for your computer. Any other battery could ignite or
explode.
When installing: Ensure that the connector is attached firmly.
1080 Built-in battery
Important notice for replacing a battery
Attention: Lenovo has no responsibility for the performance or safety of unauthorized batteries, and provides no
warranties for failures or damage arising out of their use.
The Lenovo Vantage program provides an automatic battery diagnostic test that determines if the battery is defective.
A battery FRU should not be replaced unless this diagnostic test shows that the battery is defective. The only
exception to this is if the battery is physically damaged or a customer is reporting a possible safety issue. Note that a
physically damaged battery is a non-warranty replacement part.
For access, remove this FRU:
• “1020 Base cover assembly” on page 71
Removal steps of the built-in battery
DANGER
Use only the authorized battery specified for your computer. Any other battery could ignite or
explode.
Chapter 8. Removing or replacing a FRU 77

Lenovo ThinkPad T490 Specifications

General

Form factor	Clamshell
Product type	Ultrabook
Product color	Black
Market positioning	Business
LED backlight	Yes
Display diagonal	14 \
Bus type	OPI
Tjunction	100 °C
Processor cache	6 MB
Processor cores	4
Processor model	i5-8265U
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor socket	BGA 1528
Processor threads	8
Processor codename	Whiskey Lake
Configurable TDP-up	25 W
Processor frequency	1.6 GHz
Processor cache type	Smart Cache
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
PCI Express configurations	1x4, 2x2
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	16
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA III
Storage media	SSD
Total storage capacity	256 GB
Compatible memory cards	MicroSD (TransFlash)
Number of SSDs installed	1
On-board graphics card ID	0x3EA0
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.5
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1100 MHz
Number of built-in speakers	2
Antenna type	-
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Keyboard layout	QWERTY
Pointing device	Touchpad
Number of battery cells	3
AC adapter power	65 W
Processor ARK ID	149088
Processor package size	46x24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00

Weight and Dimensions

Depth	227 mm
Width	329 mm
Height	17.9 mm
Weight	1460 g
