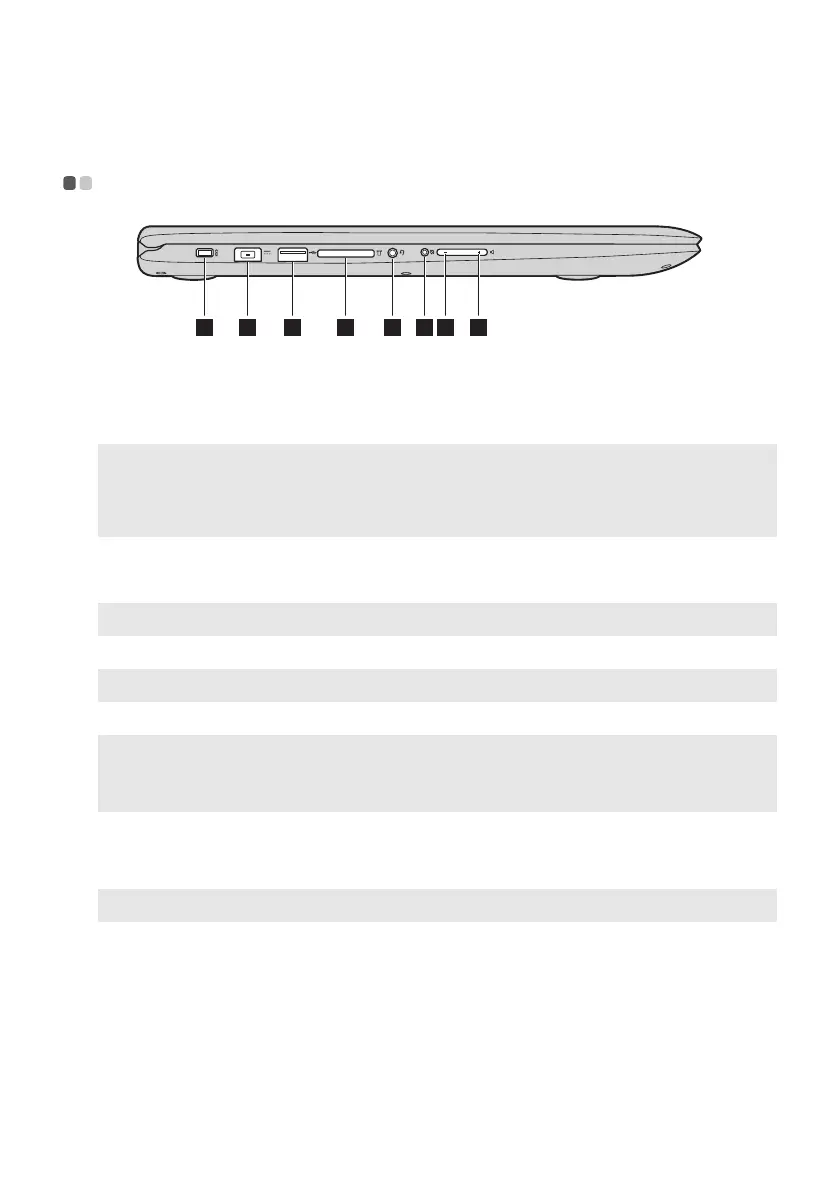

Chapter 1. Getting to know your computer
Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
a
Kensington lock slot
Attach a security lock (not supplied) here to help protect your computer
from theft and unauthorized use. You can attach a security lock to your
computer to help prevent it from being removed without your
permission. For details on installing the security lock, please refer to the
instructions shipped with the security lock that you have purchased.
Notes:
• Before purchasing any security product, verify that it is compatible with this type of security keyhole.
• You are responsible for evaluating, selecting, and implementing the locking devices and security
features. Lenovo offers no comment, judgment, or warranty regarding the function, quality, or
performance of locking devices and security features.
b
AC power adapter jack
Connects to the AC power adapter.
c
USB port
Connects to USB devices.
Note: For details, see “Connecting USB device” on page 14.
d
Memory card slot
Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 11.
e
Combo audio jack
Connects to headsets.
Notes:
• The combo audio jack does not support conventional microphones.
• The recording function might not be supported if third-party headphones or headsets are connected,
due to different industry standards.
f
Rotation lock button
Keeps the screen locked in portrait or landscape orientation. Locking the
screen rotation will disable the gravity sensing function, thereby
preventing the screen from changing its orientation automatically
depending upon the angle at which it is held.
Note: The screen rotation lock button will be disabled in notebook mode.
g
Volume down button
Decreases the volume level.
h
Volume up button
Increases the volume level.
1 2 3 54 6 7 8

Lenovo YOGA 500 Specifications

General

Form factor	Convertible (Folder)
Product type	Hybrid (2-in-1)
Product color	Black
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Storage media	HDD
Optical drive type	-
Card reader integrated	Yes
Total storage capacity	1000 GB
Compatible memory cards	MMC, SD, SDHC, SDXC
Number of HDDs installed	1
Display diagonal	15.6 \
Touch technology	Multi-touch
Native aspect ratio	16:9
Audio system	Dolby Home Theater
Speaker power	1.5 W
Number of built-in speakers	2
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
DVI port	No
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 10
Operating system architecture	64-bit
Tcase	- °C
Bus type	QPI
Stepping	D1
Tjunction	100 °C
Processor cache	3 MB
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-6200 series
Processor socket	LGA 1356 (Socket B2)
Processor threads	4
Processor codename	Skylake
Configurable TDP-up	25 W
Processor frequency	2.3 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	2.8 GHz
PCI Express configurations	1x4, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
On-board graphics card ID	1916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Processor code	SR2EY
Processor ARK ID	88193
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00

Weight and Dimensions

Depth	255 mm
Width	385 mm
Height	22.2 mm
Weight	2100 g
